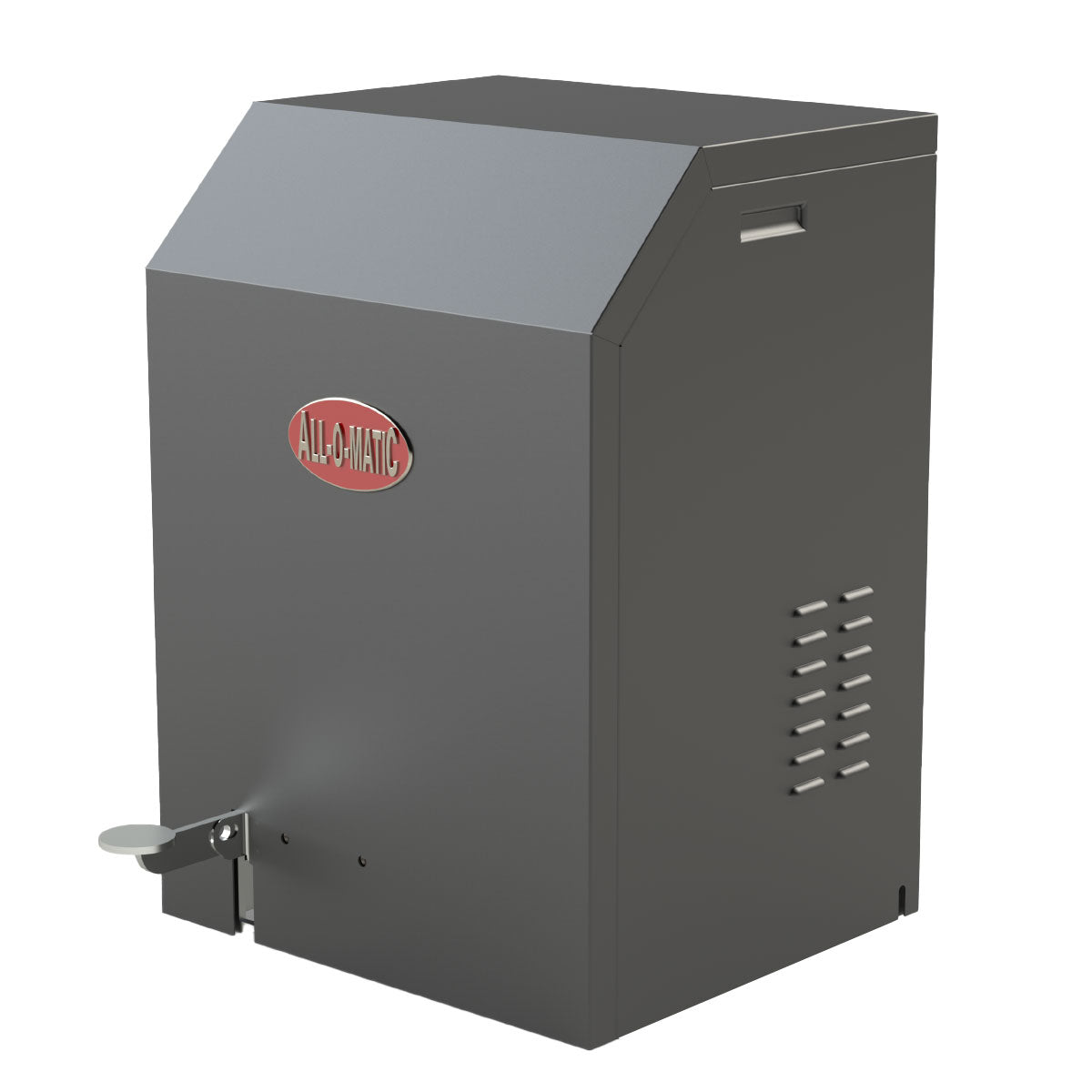

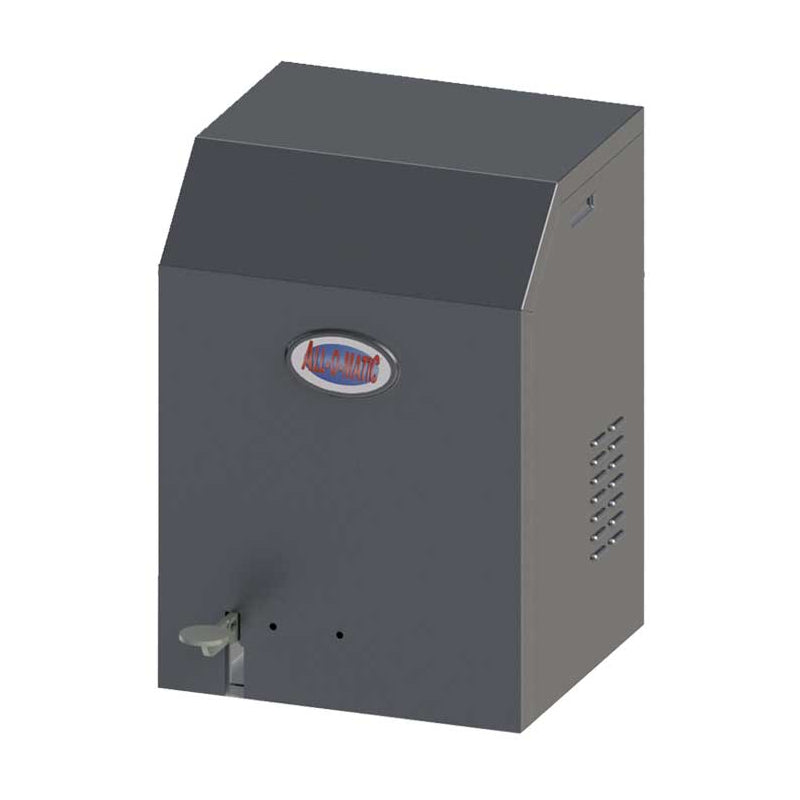

All-O-Matic SL175 DC FP Slide Gate Opener 24" Per Second Speed

• Max gate size: 100ft*
• Max gate weight: 3,000 lbs.
• This model has a foot pedal release

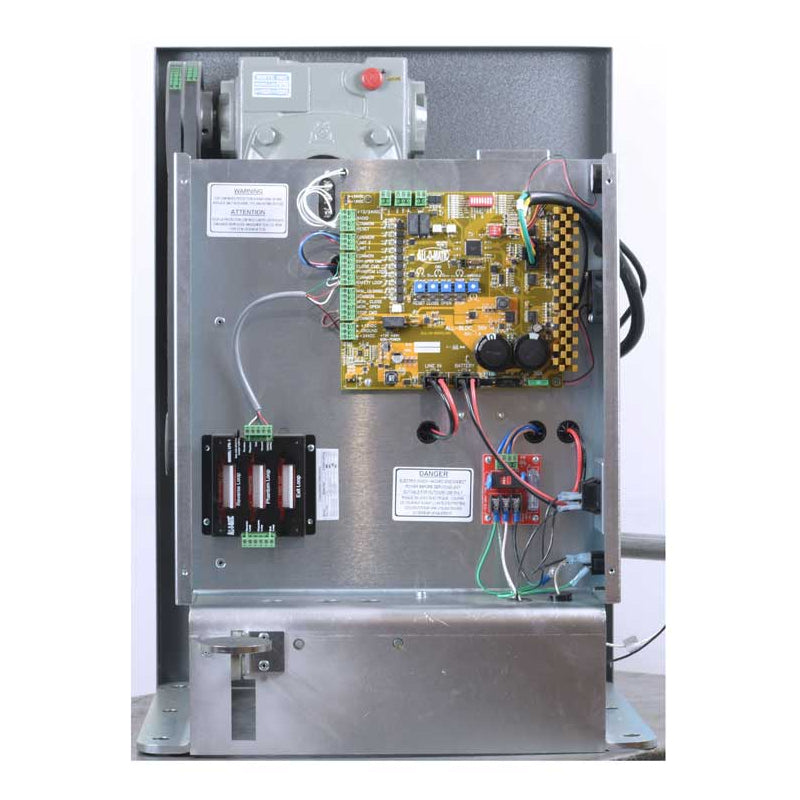

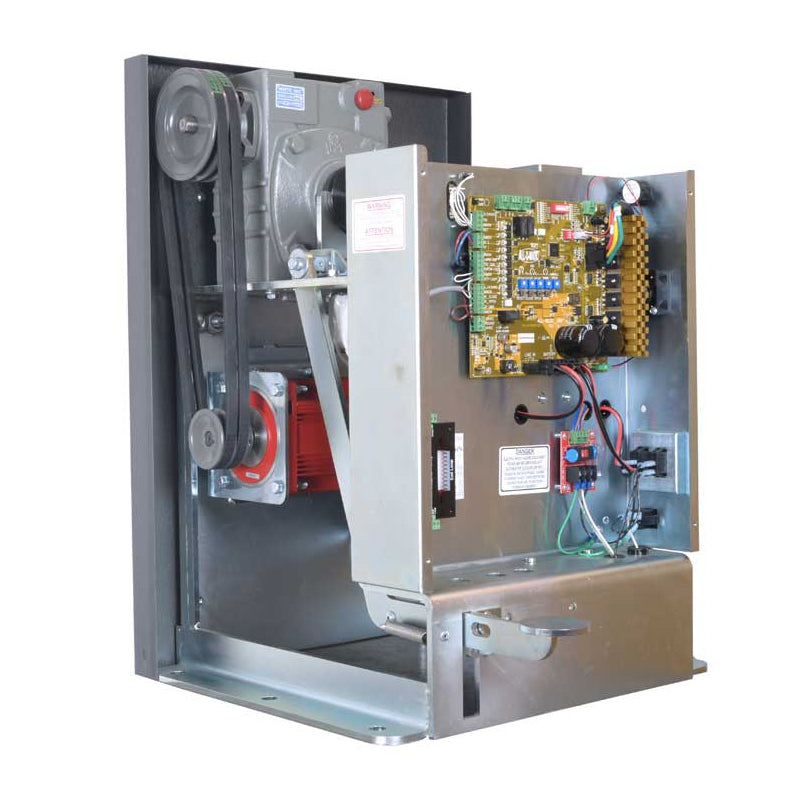

The SL-175 DC slide gate operator is equipped with an all new super duty high-strength frame, super duty gearbox, beefed up 36VDC brushless DC motor, speed of 12” per second and a newly in-house design BLDC control board- All combined with the industry leading brushless DC technology (soft start/stop, built in loop rack, integrated battery backup), solar power ready and foot pedal release.

*The SL-175DC has been tested with gates weighting up to 8,000 lbs. and 75 feet in length.

Specs:

• Max Gate Weight 3,000 Ibs. (24” per second)
• Max Gate Length 100 feet
• CLASSES III & IV Motor 36 VDC brushless motor
• Gate Speed 24” per second
• Power Options 115/230/480 VAC single phase
• Duty Cycle Continuous
• Battery Back Up Integrated, with (3) 144h 12VDC batteries
• Battery Back Up Capacity 100 cycles on a 3,000 Ib. gate
• Temperature Range -40 to 160°
• Gearbox Ratio 30:1 with internal clutch
• Width X Length X Height 419.5" x 20" x 27.5"
• Emergency Release Mechanical foot pedal release
• Chain Size 50NP (30’ included)
