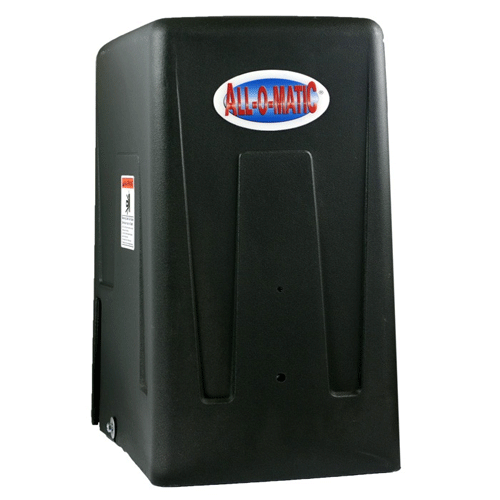

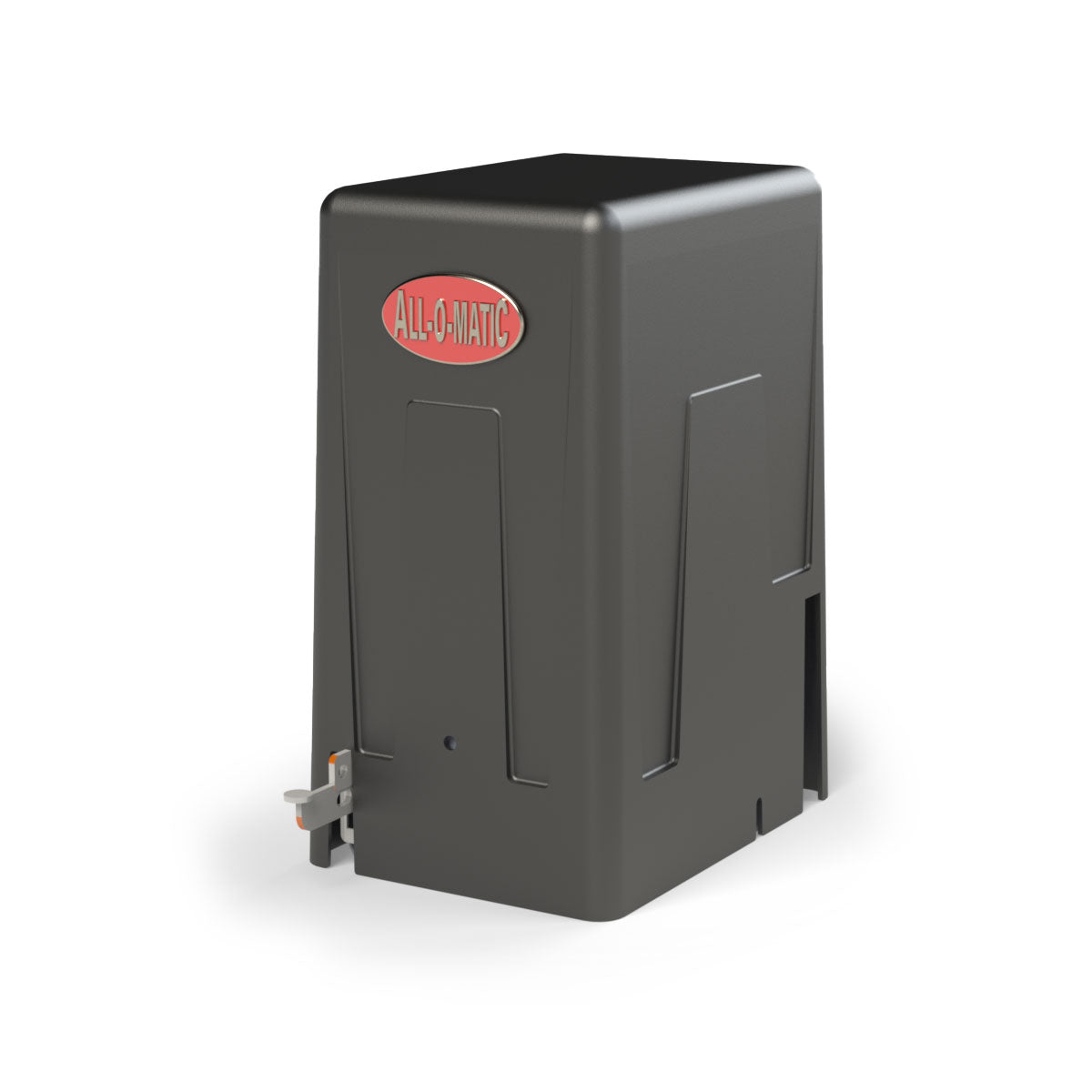

The All-O-Matic Sl-100 AC 1/2 HP Slide Gate Opener was designed to be one of the strongest and most durable slide gate openers in the industry. The SL-100 is a 1/2 horsepower slide gate operator that has been the first in the industry to utilize technology like on of the simplest and most dependable control board in the industry that's backwards compatible. A powerful and durable motor that has been field tested for over 20 years. The All-O-Matic SL-100 AC Slide Gate Operator can move gates that are up to 1,000 lbs. and 37 feet wide. Just like the All-O-Matic SL-100 DC Slider it is now offering an optional emergency foot pedal release. The All-O-Matic SL-100FP AC is an option when you add the item to your car.
2016 UL 325 & UL 991 Compliant
Limited Warranty: 7 Year Residential, 5 Year Commercial

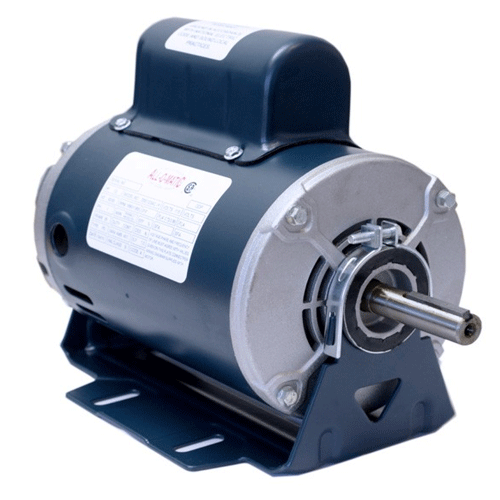

Motor: ½ HP
Duty Cycle: Continous
Power Options: 120 V AC

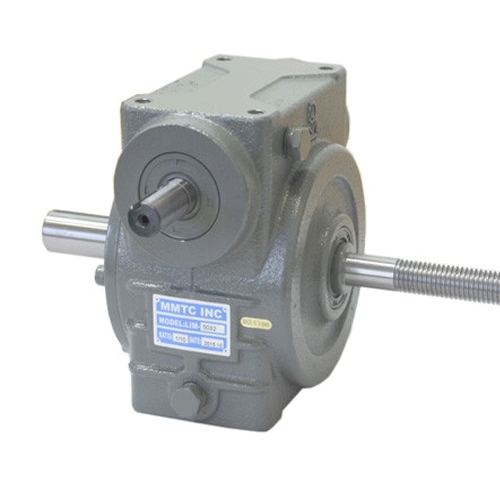

Gear Box Ratio: 10:1 & 30:1 Optional for fail secure applications
Cover: Rotationally Molded – Indestructible

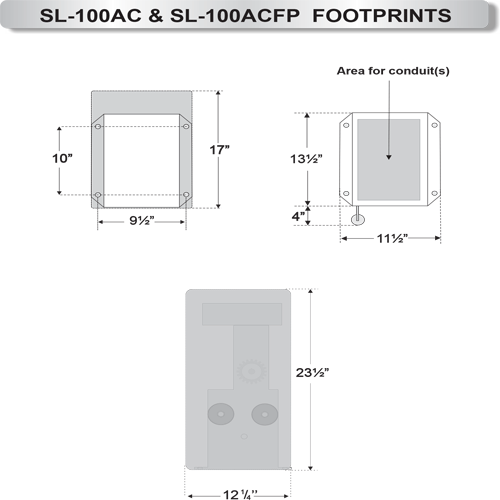

Dimensions: W: 12" - L: 17.5" – H: 23.5"
Maximum Gate Length: 37 Feet
Maximum Gate Weight:1,000 lbs
Gate Travel Speed: 12 inches per sec
Emergency Release Options: Can be pushed open in the event of a power failure
Battery Backup: Compatible
The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner. Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
