Reno BX4 Series Loop Detector 12VDC, 24VDC or 24VAC (harness required)

Reno BX4 Series Loop Detector 12VDC, 24VDC or 24VAC (harness required)

Reno BX4 Series Loop Detector 12VDC, 24VDC or 24VAC (harness required)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $101.97
/
Shipping calculated at checkout.

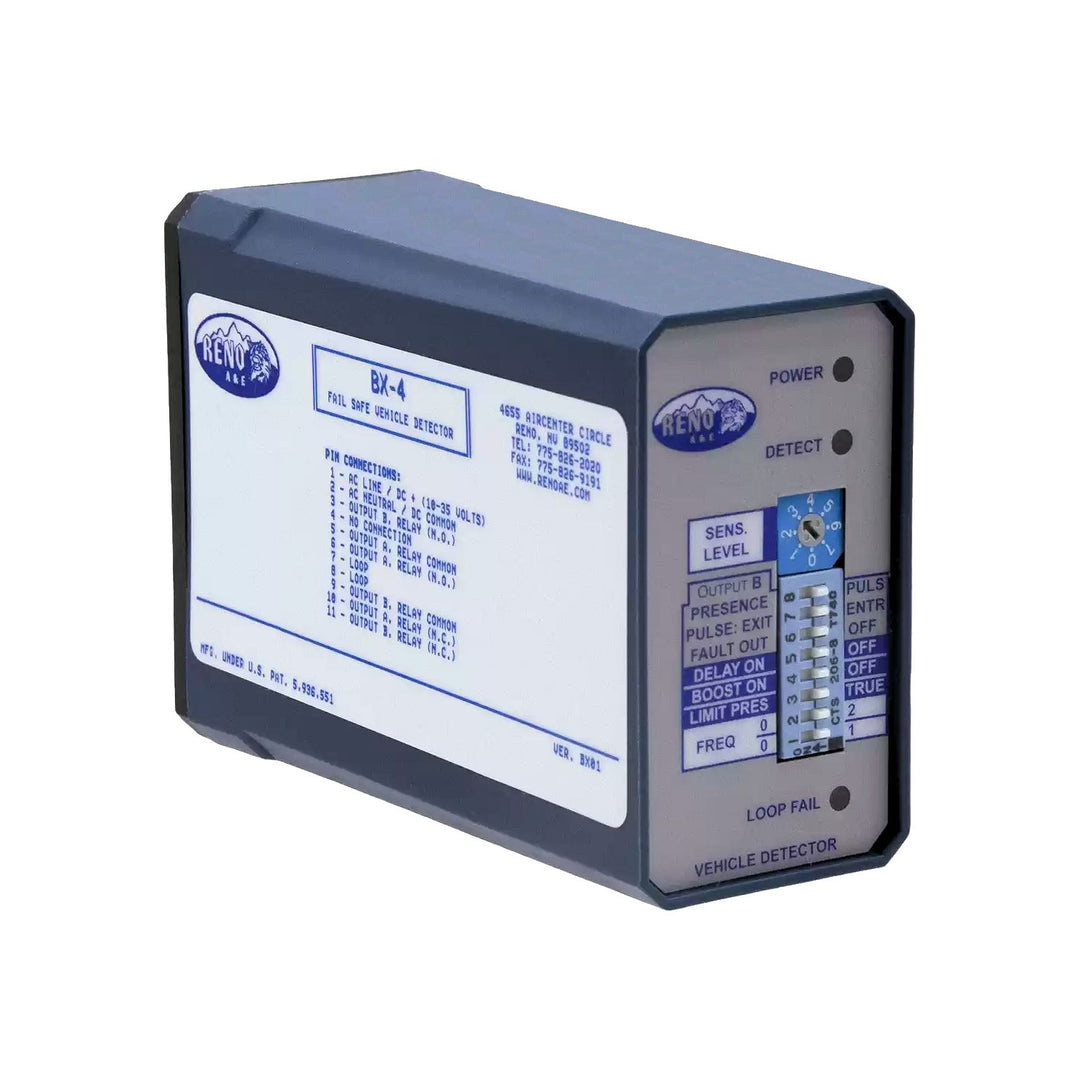

Reno BX4 Series Loop Detector

12VDC, 24VDC or 24VAC (Harness Required, see Reno Harness)

  • Dual Relay Loop Detector 12VDC, 24VDC or 24VAC
  • Delay Relay Outputs:
  • Output A: Limited Presence, True Presence TM
  • Output B: Presence (Duplicates Output A), Pulse-on-Entry, Pulse-on-Exit, Fault Output
  • Delay Outputs A & B for two seconds
  • Eight levels of sensitivity selectable from the front panel rotary switch
  • External DIP switches
  • Sensitivity Boost for applications where high-bed vehicles might be encountered
  • Detect Memory feature maintains detection during momentary power interruptions of up to two seconds
  • Fail LED indicates current loop failures or loop failures that have occurred
  • Four loop frequencies selectable from the front panel
  • Super bright LED indicators for power, detect, and loop fail
  • 11-pin Amphenol connector
  • Fail-Safe or Fail-Secure versions available
  • 3.00” High x 1.75” Wide x 4.30” Deep
