LiftMaster IHSL24UL Industrial Slide Operator (On Sale)
- Max gate size: 90ft
- Max gate weight: 5,500 lbs.
- 1 Horsepower
- Single Phase 120/240VAC
Liftmaster Elite IHSL24UL single phase (120v/240v) Industrial DC Slide Gate Opener is replacing the SL595UL.
Liftmaster IHSL24UL Package includes:Â
1 - IHSL24UL motor, cover, circuit board
1 - 25ft of #50 chain
1 - built in radio receiver
1 - monitored safety photo eye
1 - safety edge 5ft (wireless kit not included)

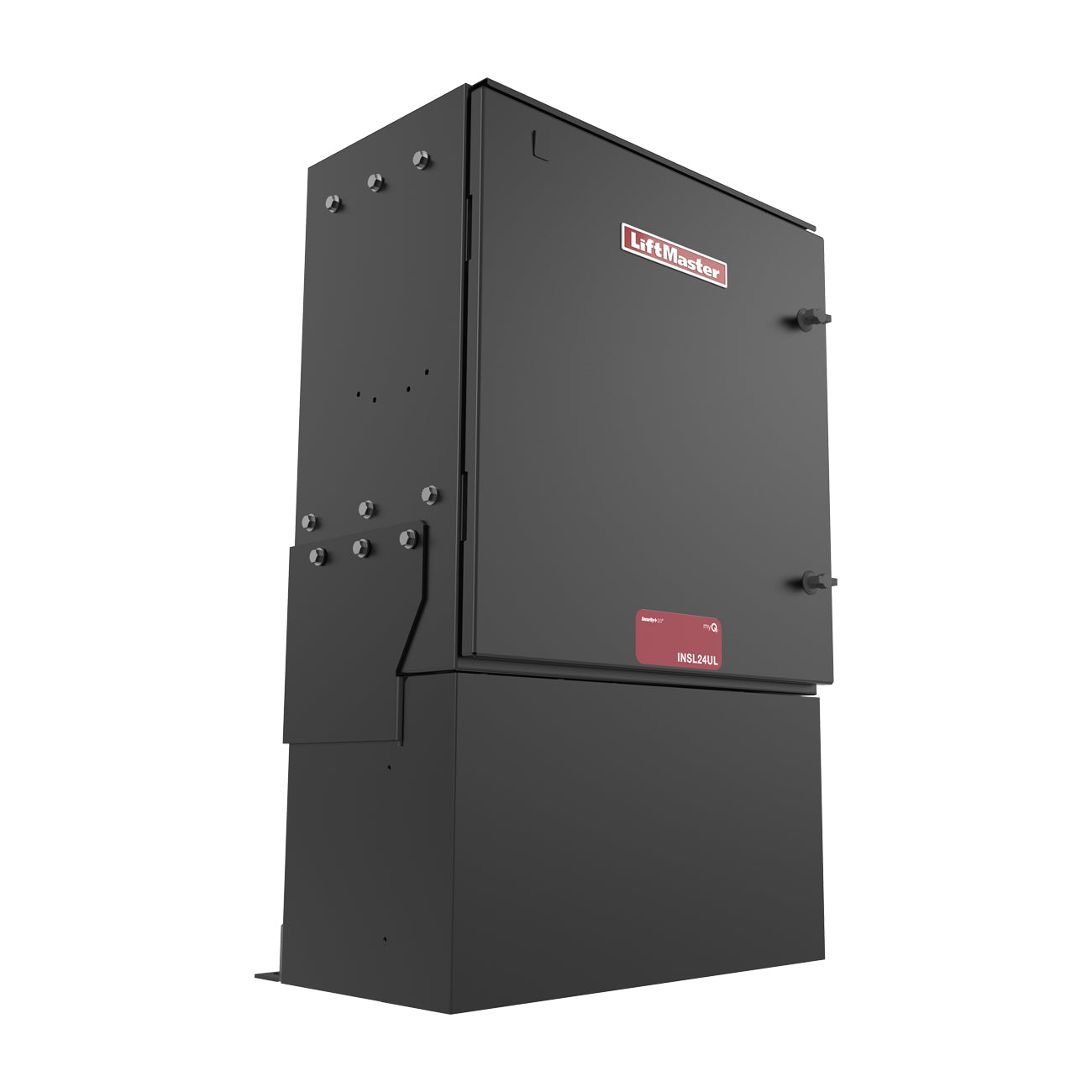

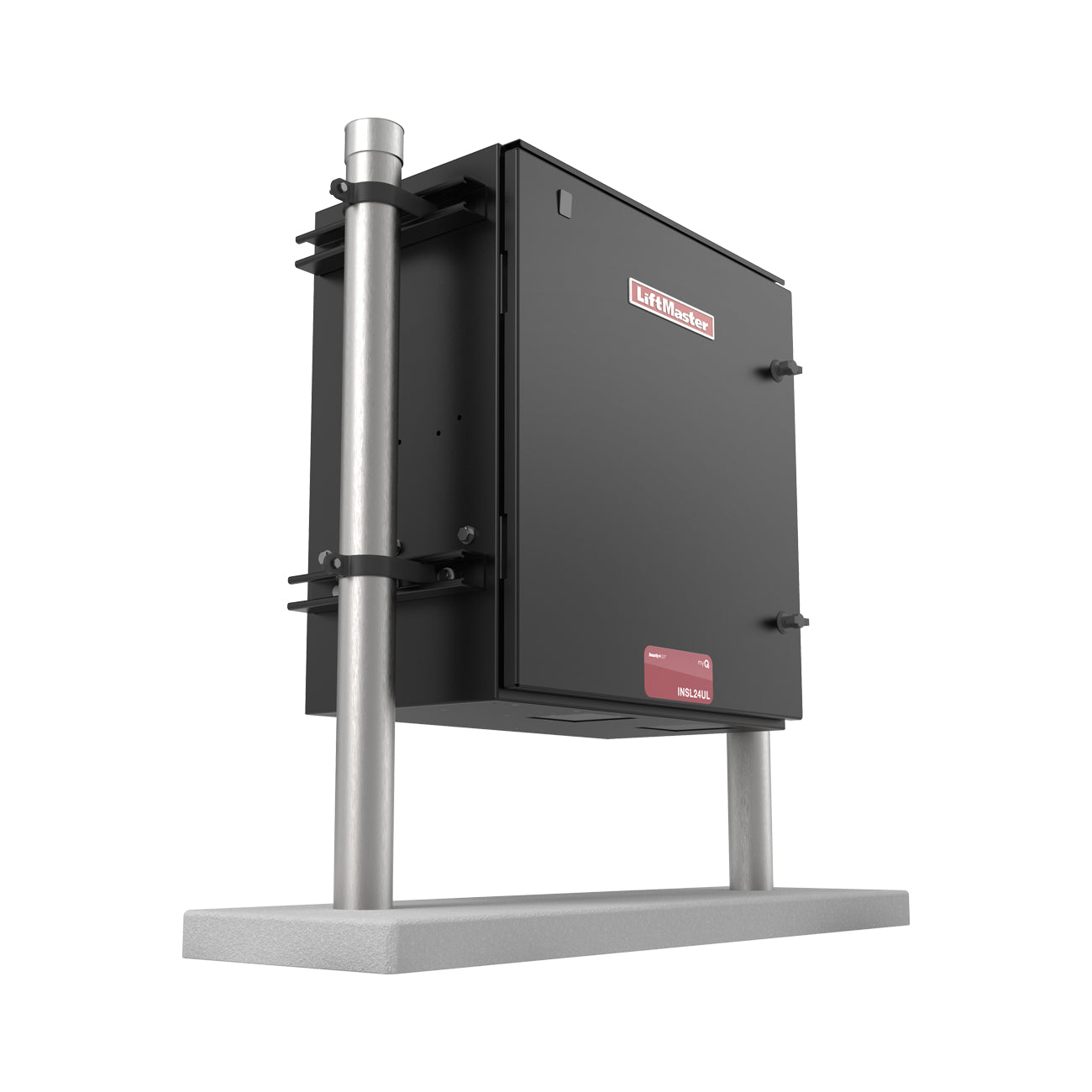

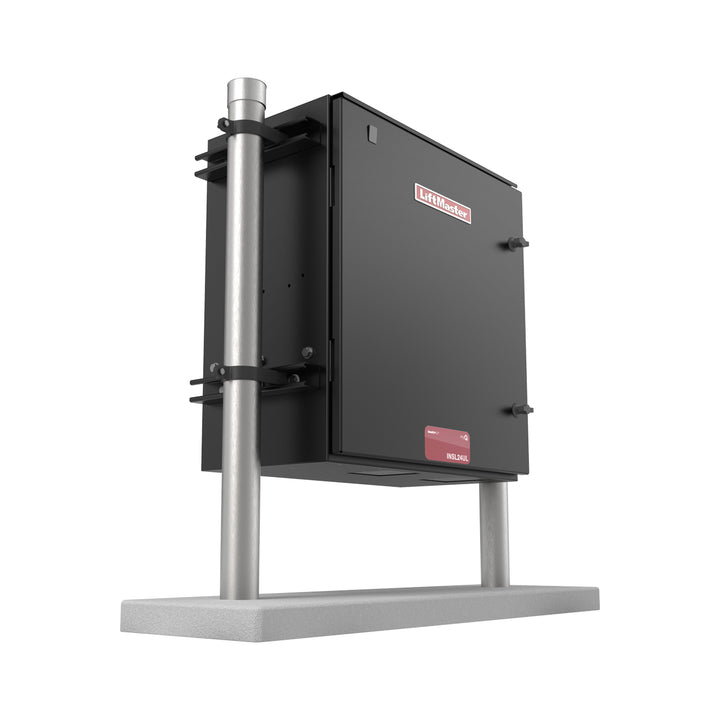

Base and/or posts shown in picture are not included

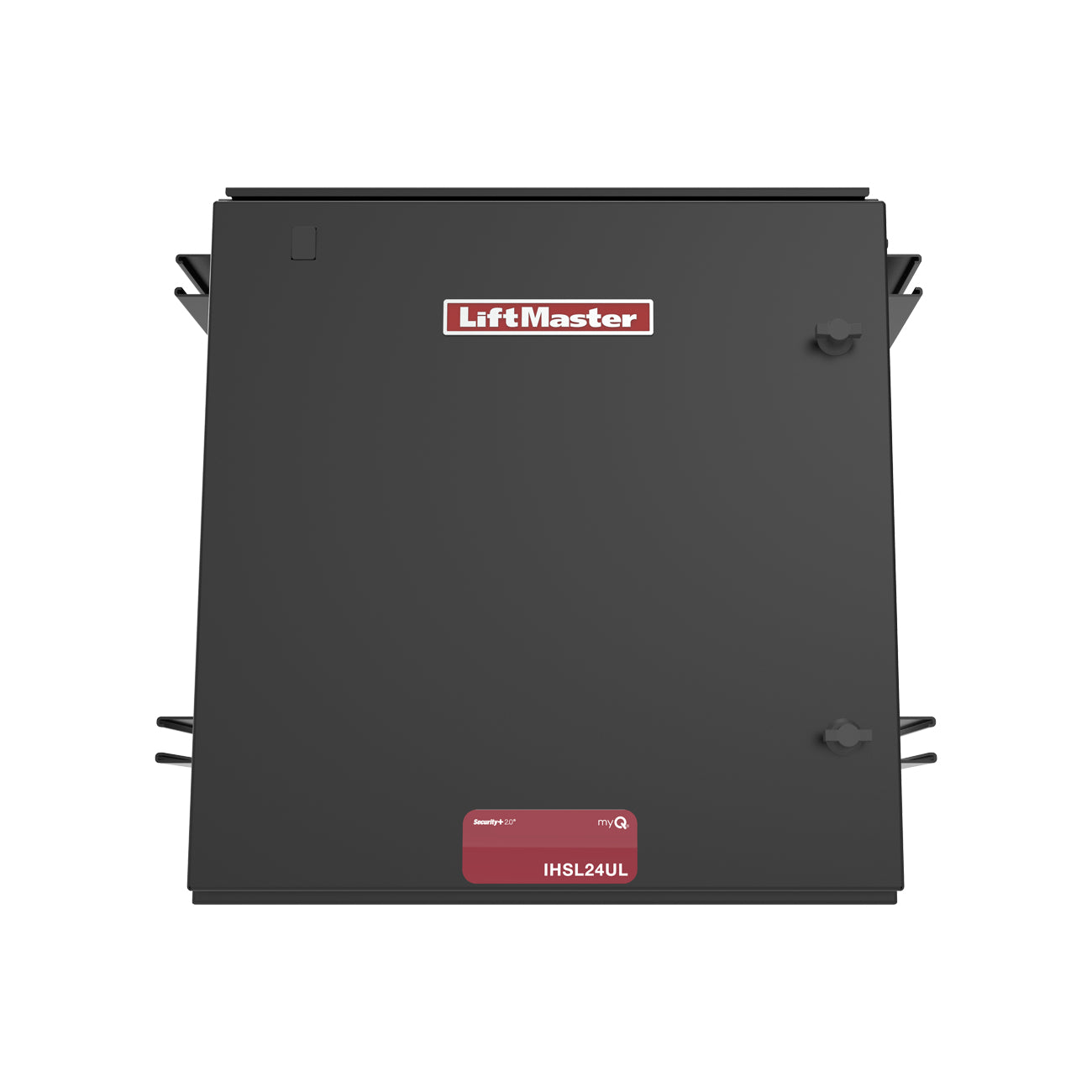

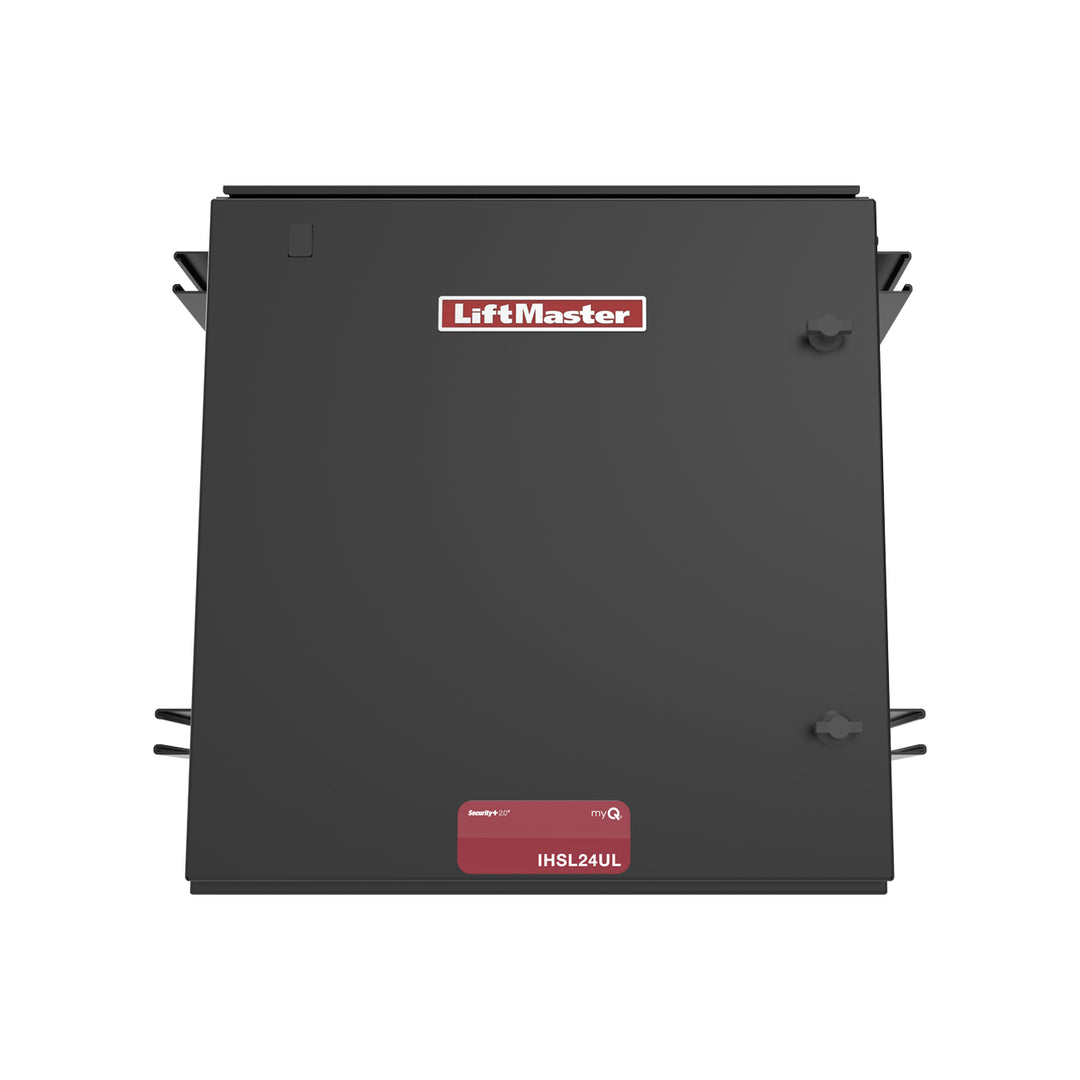

Liftmaster IHSL24UL Elite Industrial 24VBLDC Continuous Duty Industrial Slide Gate Operator
The Liftmaster IHSL24UL slide gate opener is designed for heavy duty gates at commercial locations like airports, prisons, and any locations that needs heightened security. Â Liftmaster gate openers have many features that set it apart from other manufacturers in the industry. These features include: DC motor, heavy-duty commercial gear-driven transmission, manual disconnect, heavy-duty steel lockable NEMA 3R enclosure, inherent reversing sensor, surge suppression, simplified mounting and wiring routing. Â The Liftmaster IHSL24UL slide gate opener is ideal for "heavy-traffic applications such as manufacturing plants and truck depots".Â
Features:
- Move Industrial gates up to 5,500 lbs. at 1 ft./sec.
- Continuous-duty gate operation built with a custom industrial oil-bath gear box, size 70.
- Custom Industrial brushless DC motor.
- Enclosure Lockable, Weatherproof 14g NEMA 3R Steel Cabinet.
- Variable cycle speed adjusts to meet application needs from .5 ft./sec. to 1 ft./sec.
- Smooth start/stop operation and mid-travel reversal extend operator hardware life.
- #50 industrial chain provides a pull strength of 2x the gate weight.
- Manual Disconnect with direct mechanical linkage with latch.
Specifications:
- Powered by myQ® for full insight and control over community and facility access points. Improve warehouse efficiency and productivity with Smart Facility Access. Monitor and control multiple communities with Smart Community Access.
- Four programmable auxiliary relays accommodate more accessories.
- Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.
- Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
- Posilock® automatically closes the gate when it is pushed from the closed limit.
- UL® listed gate operator with monitored safety entrapment protection devices.
- Includes LMRRUL Monitored Retro Reflective Photo Eye reliable retro-reflective photo eye now with heater and wide beam, engineered to stay aligned; max. Range: 50 ft.
- Includes S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions.
Construction:
- 24VDC brushless continuous-duty motor.
- Operator Duty Rating: high-cycle, high-temperature continuous duty.
- Direct Drive
- Chain: #50 Industrial.
- 120/240V single-phase
- Accessory Power: 24VDC 1 A max. output; switched and unswitched power.
