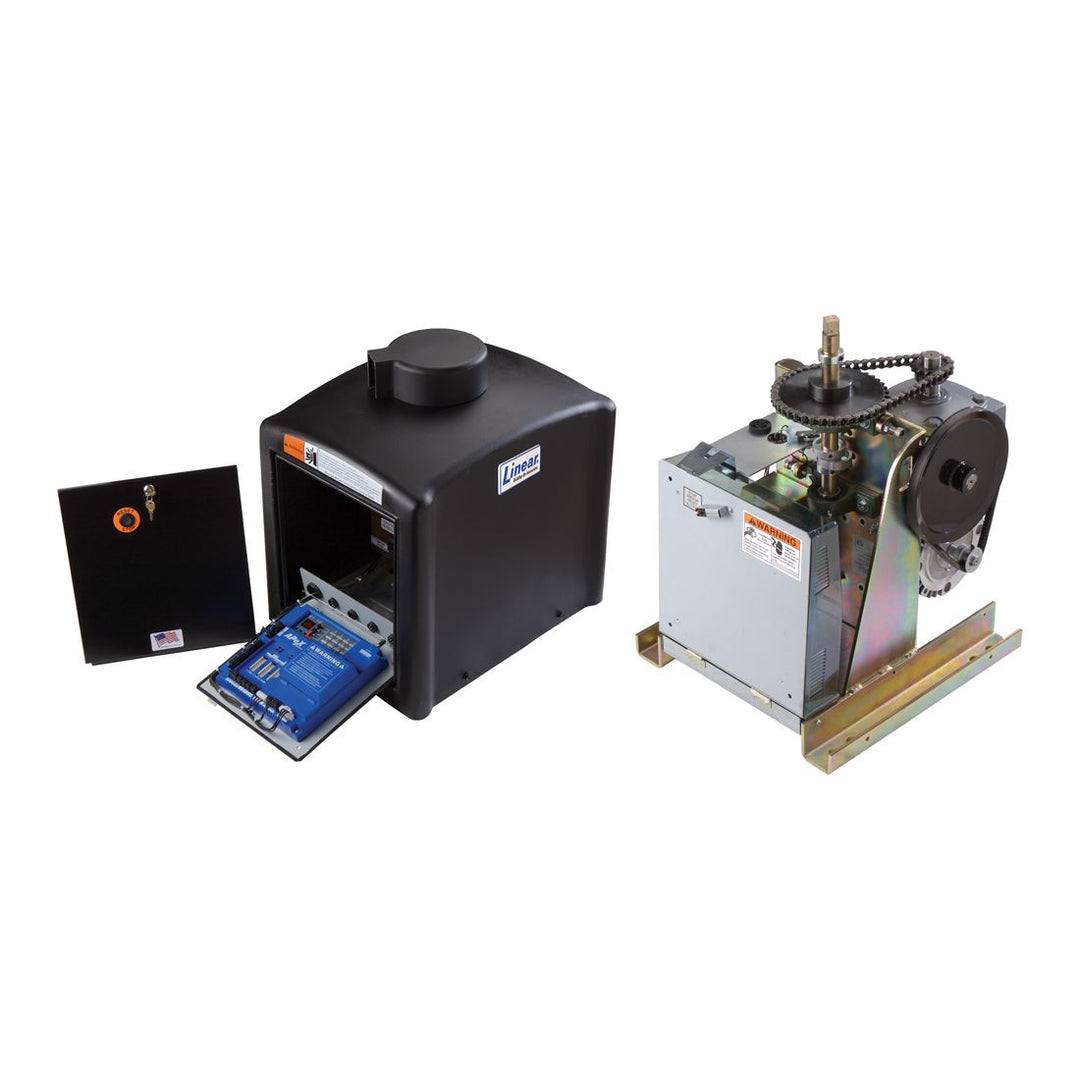

Linear SWC-211 Swing Gate Operator 1/2 HP (115V)

Linear SWC-211 Swing Gate Operator 1/2 HP (115V)

Linear SWC-211 Swing Gate Operator 1/2 HP (115V)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,540.97
Shipping calculated at checkout.

Linear SWC-211 Swing Gate Operator 1/2 HP

  • Max gate size: 17ft
  • Max gate weight: 600 lbs.
Commercial duty swing gate operator series, 115V supply voltage, 11-14 second gate opening speed.


  • APeX Controller
  • Black polyethylene cover
  • Built-in MegaCode receiver
  • Gear reducer, size 60 (1/2 HP), size 70 (1 HP)
  • Quick disconnect crank assembly
  • Exterior reset button
  • Heavy-duty, zinc-plated, steel chassis
  • Lockable steel access door
  • High starting torque – heavy duty PSC motor
  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada


  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
  • Built-in networked dual gate capability using 3-wire shielded cable
