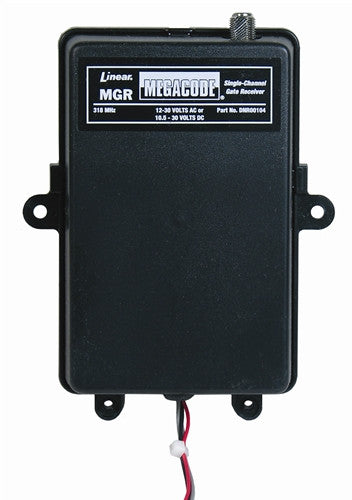

The Linear MegaCode MGR 1-Channel Gate Receiver

The Linear MegaCode MGR 1-Channel Gate Receiver is designed to be used with automatic gate operators or systems where a remote antenna is needed. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.

Features

• Single Form ”A” (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
• Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
• Memory: storage for up to 40 MegaCode transmitters
• Power: 12 - 30 VAC or 10.5 - 30 VDC
• Codes: 1,000,000+ (MegaCode format)
• RF frequency: 318 MHz
• Dimensions: 3.625" W x 5.25" H x 1.5" D
