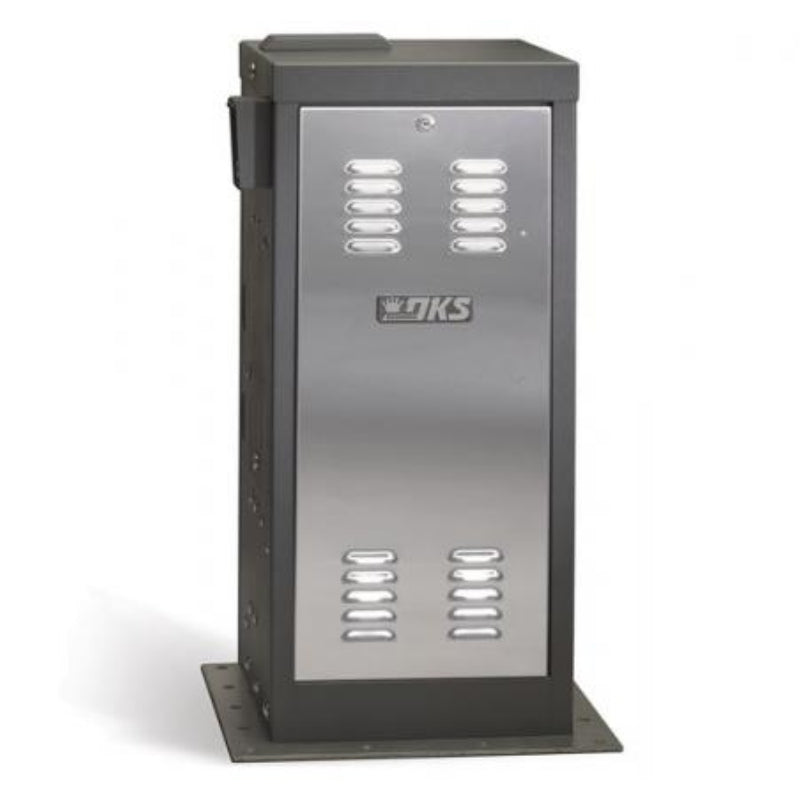

DoorKing 9210-381 Slide Gate Opener with #60 Chain

DoorKing 9210-381 Slide Gate Opener with #60 Chain

DoorKing 9210-381 Slide Gate Opener with #60 Chain

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $5,601.00 Sale price $4,779.97
/
Shipping calculated at checkout.

DoorKing 9210-381 Slide Gate Opener w/ 1HP Motor

Made to order. This item cannot be cancelled once ordered

DKS 9200 Series Operators are designed for maximum security applications only – such as industrial locations, loading docks, factories, airport security areas, sea ports, etc. Because of the need to prioritize security in these applications, these operators are designed for fail-secure operation and require manual operation to open the gate in the event of a power outage. To enhance security, these operators feature an anti-tailgating circuit and an adjustable partial open feature to help prevent unauthorized vehicle access. In addition, speed controller options allow the user to adjust the gate speed from 1/2 ft/sec up to 4 ft/sec. An Emergency Close feature is available on some models which will close the gate at 4 ft/sec. This assures your security gate is open the absolute minimum amount of time necessary.

Features

  • Direct driven limit nuts.
  • Anti-tailgating feature.
  • Adjustable mid-stop.
  • Gate tracker reporting output.
  • Ports for plug-in loop detectors.
  • Two convenience outlets.
  • Fail-secure operation includes crank for manual operation.
  • Programming switches.
  • Built-in reset switch.
  • Built-in power On/Off switch.

Specifications

  • Maximum gate length 100-feet.
  • Maximum gate weight 3000 Lb. (#60 chain) Assumes gate is on level ground, in good condition with properly adjusted hardware.  Other external factors may affect the performance of the gate operator.
  • Set speed 1 Ft./sec.
  • 40:1 gear reduction running in a continuous oil bath.
  • 1 HP continuous-duty motor.
  • 115VAC
  • Operator is shipped with chain brackets and 20-feet of chain.
  • Class III and IV applications only.
  • Dimensions: 20 "W x 35.5"H x 18"D
