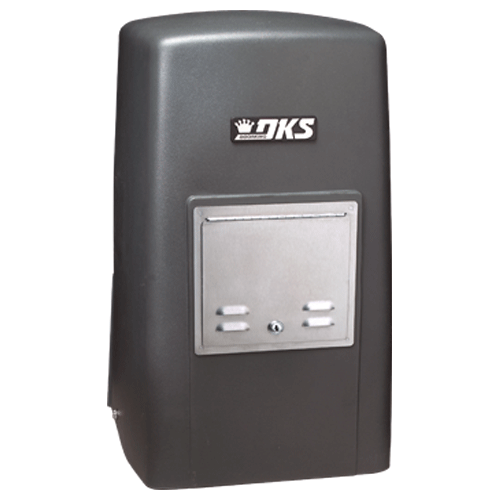

DoorKing 9024-380 DC Slide Gate Operator

The DoorKing 9024-380 Slide Gate Operator keeps running when AC power has been lost.  This DKS slide gate opener offers convenience, reliability and safe operation in a small, compact design and is ideally suited for residential or commercial applications. The 1/2 HP Quadra Drive DC Motor provides powerful and long lasting operation and is backed up with built-in 7.2 Ah batteries to provide operation if AC power is lost.  The DoorKing 9024-380 features a belt drive/30:1 gear-box reduction system to provide powerful, yet extremely quiet, slide gate operation. The DKS 9024-380 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, the DKS Model 9024-080 provides everything you expect from a gate operator in this class.


  • Two 7.2 Ah Batteries standard, 18 Ah batteries optional
  • Powerful 1/2 HP Quadra Drive motor for long life
  • Heavy-duty gearbox
  • Heavy-duty steel frame provides strength and quiet operation
  • “T-Handle” release is easily accessible from front of operator
  • Operator re-connects automatically when handle is released
  • Adjustable partial open limit
  • Adjustable limit nuts for precise gate control
  • Auto-close timer 1-30 seconds
  • Simple bi-parting gate interface (AC powered operators only)
  • Selectable loop/reverse input function; stop or reverse
  • Anti-tailgating feature helps to control un-authorized traffic
  • Standard normally closed stop circuit
  • DC Power Shut-Off switch
  • Battery protection circuit
  • Ports for plug-in open and reverse loop detectors – DKS detectors only
  • Gate Tracker reporting output provides operator data to access control system (DKS 1833, 1835, 1837 or 1838 only)
  • AC Powered Operator Only - 115 VAC Convenience outlets, and AC Power Shut-Off switch.
  • DC Powered Operator Only - 0.0 Amp SBPD(PatPend) Circuit insures longer battery life.


  • Maximum gate width 40 ft. (12.2 m)
  • Maximum gate weight 1000 pounds (453.6 m)
  • 1/2 HP Quadra Drive motor, continuous operation with AC source power available.
  • 115, 230 VAC input: 1.8 A / 0.9 A or 24 VDC Input 8.0 A.
  • Class I, II, III, IV applications
