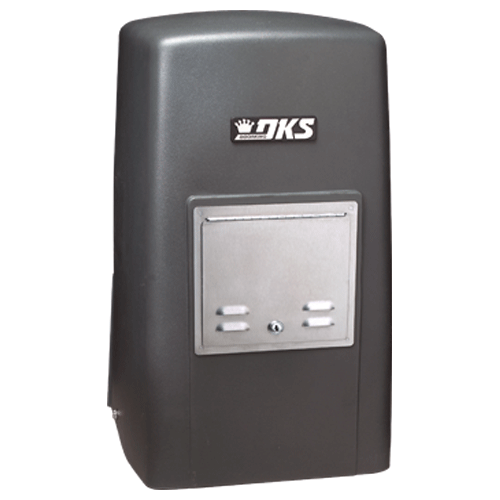

DoorKing 9000-381 Secondary Slide Gate Operator
The DoorKing 9000-381 offers convenience, reliability and safe operation in a small, compact design. The DKS 9000-381 is ideal for residential, commercial or industrial high-use applications and its steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The DKS 9000-081 uses an advanced microprocessor control circuit with outstanding features and was designed with versatility in mind, these operators will fit most slide gate operation requirements.
Features
- Steel frame provides strength and quiet operation
- “T-Handle” release is easily accessible from front of operator
- Operator re-connects automatically when handle is released
- Adjustable partial open limit
- Direct driven limit nuts for precise gate control
- Auto-close timer 1-30 seconds
- Ports for plug-in open and reverse loop detectors – DKS detectors only
- Selectable loop/reverse input function; stop or reverse
- Anti-tailgating feature helps to control un-authorized traffic
- Standard normally closed stop circuit
- Gate Tracker reporting output provides operator data to DKS access control system
- Convenience outlets for accessory transformers
- Built-in power switch and alarm reset switch
- Simple bi-parting gate interface
Specifications
Maximum gate width 35-ft.
1/2 HP Operators:
Maximum gate weight 1000 pounds*
115, 208*, 230*, 460* VAC. (*208, 230, and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage).
1 HP Operators:
Maximum gate weight 1500 pounds*
115, 208 3°, 230 3°
Primary operators only - no secondary operators available in 1 HP version.
*assumes gate is on level ground, in good condition with properly adjusted hardware.
Class I, II, III and IV applications.
Compliant with UL 325 and 991, ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions: 18.375"W x 31.675"H x 23.25"D
Options
Plug-in loop detectors.
Heater kit for cold environments.
Secondary entrapment prevention devices.
Bi‐parting gate connection cable.
Gate operator control stations
Postal and Fire Dept lock boxes
Surge suppressors, time clocks, traffic signal.
