DoorKing 6100-381 Secondary Swing Gate Opener with 1/2hp Motor

doorking 6100-381
Doorking 6100-081 Secondary Swing Gate Opener with 1/2hp Motor (Requires Mounting Kit)
Doorking 6100-081 Secondary Swing Gate Opener with 1/2hp Motor (Requires Mounting Kit)

DoorKing 6100-381 Secondary Swing Gate Opener with 1/2hp Motor

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $1,549.97
/
Shipping calculated at checkout.

DoorKing 6100-381 Swing Gate Opener (Requires Mounting Kit)

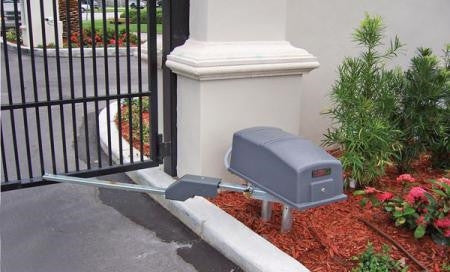

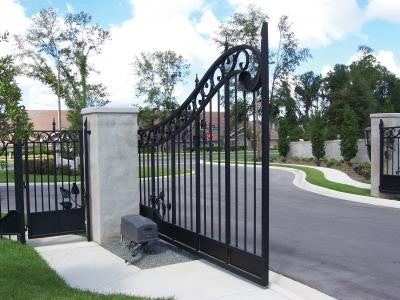

The DoorKing 6100-381 operators are designed to operate vehicular swing gates for both residential and commercial applications. The DKS 6100-381 operators are designed so that they can be either pad or post mounted without any costly and time consuming field modifications. You need to specify which mounting method when ordering. The DKS 6100-381 unique design allows the gate arm to be attached to the bottom rail of the gate. This eliminates the need for any brackets to be welded to the face of the gate and creates an aesthetically pleasing installation.

(Mounting Hardware Required)

CLICK HERE FOR PAD MOUNT KIT
CLICK HERE FOR POST MOUNT KIT

Features

  • Self-adjusting, no maintenance magnetic limits.
  • Overlap feature for dual swing gate operation.
  • Designed with a built-in primary and secondary entrapment prevention system.
  • Ports for plug-in loop detectors.
  • Fail-safe release.
  • Tamper detect circuit.
  • Gate tracker reporting output.
  • Programming switches.

Specifications

  • Maximum gate width 14-feet.
  • Maximum gate weight 500 pounds*.  (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
  • Swings gate 90 degrees in approximately 10-seconds.
  • 1/2 HP continuous-duty motor.
  • 115 VAC, 5.4 Amps.
  • Class I and Class II applications.
  • Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
  • Dimensions (operator only): 13.5"W x 11"H* x 23"D (**27.75"D with convenience open option)  (* Height of operator only. Actual height above ground is determined by which mounting method is used)
