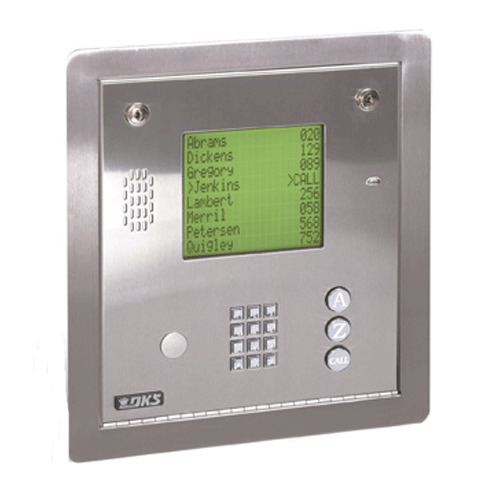

Doorking 1837-084 Telephone Entry System Wall Mount

***This is an indoor unit and is not waterproof. Requires 1814-165 Recess Kit.***

The DoorKing 1837-084 is an ideal telephone entry and access control system suited for medium to large apartment and gated community applications as well as office buildings and industrial sites. The eight-line LCD display features big 1/2-inch characters for easy viewing and your personalized message appears on the screen when the system is not in use. Our unique "One Touch" CALL button makes this system one of the easiest to use on the market today!  The DKS 1834-080 has a built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expand-ability options make this unit an ideal choice for those applications with a large number of system users and entry locations. Up to 16 card readers can be interfaced with the 1837 to provide access control. Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the DoorKing 1834-080 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

Advanced Features

Remote Account Manager and Transaction Analysis software is included with the system.
Large easy to use A and Z scroll buttons.
One Touch "CALL" button.
Built-in eight-line LCD directory display.
Programmable directory codes (1-4 digits).
10 and 11-digit dialing capability.
Interfaces with 2 card readers - expandable to 16 with tracker expansion board(s)
Live Streaming.
Live transactions.
Anti-pass back.
8000 event transaction buffer.
Elevator control - requires elevator control boards(s)
31 Security (permission) levels.
Database import/export capability.
LED Lighted keypad.
Built-in clock/calendar.
Holiday schedule.
Hold open time zones.
Entry code time zones.
Built-in postal lock provision.

SPECIFICATIONS

True Full Duplex communication.
Stores up to 3000 telephone numbers and names.
Transaction buffer stores last 8000 events.
Stores up to 8000 access card codes - dependent on system memory.
31 security (permission) levels, 29 programmable with 4 time zones each.
8 hold open time zones.
Three anti-pass back configurations: passive, active and trap.
Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
Expandable (note 2) to control up to 16 entry points.
4-digit entry codes, one for each telephone number.
3 form "C" dry contact relays.
Eight-line directory display uses super-twist LCD with 1/2-inch characters.
EEPROM memory.
Requires touch-tone, loop-start central office phone line.
16 VAC, 20 VA and 16 VAC, 50 VA power transformers supplied.
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294. ETL listed.

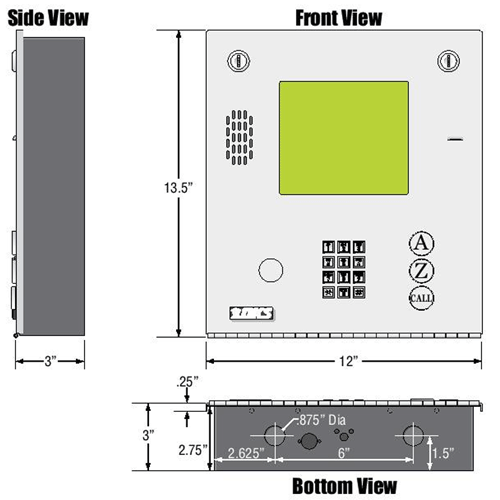

Dimensions:

Dimensions Surface Mount: 13"H x 11.25"W x 4.75"D.
Dimensions Flush Mount: 13.25"H x 12"W x 3.25"D.
Dimensions Wall Mount: 15"H x 13.25"W x 3.5"D.
