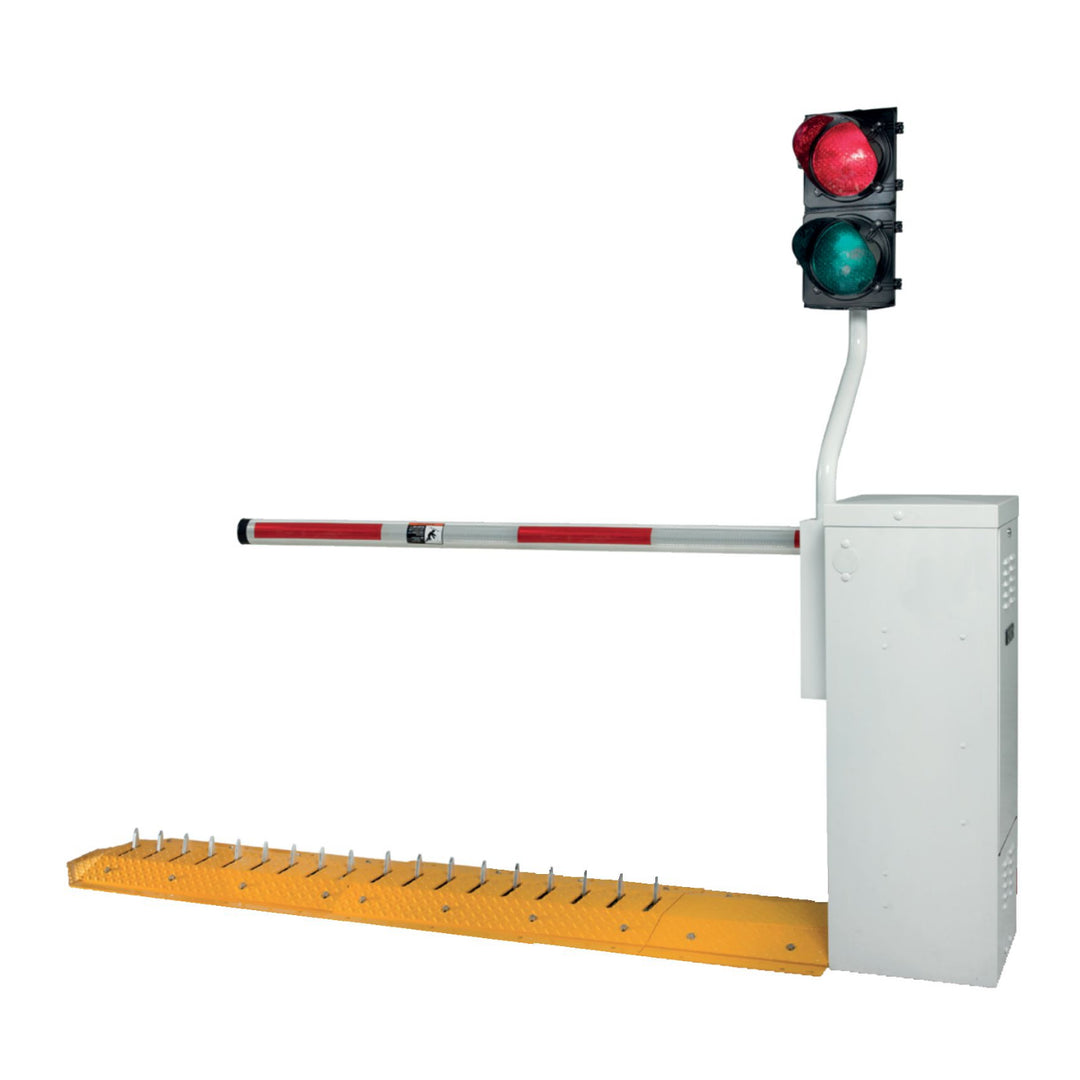

DoorKing 1603-380 Barrier Arm Opener (Full Kit)

Full kit includes

  • 1 gate operator
  • 3 surface mounted spikes
  • 1 surface mounted end cap for spikes
  • 1 drive extension to connect the spikes to the gate operator
  • 1 lighted warning sign for spikes damage (post not included)
  • 1 traffic light with post
  • Arm not included. See details below

Click here for available Arm kits

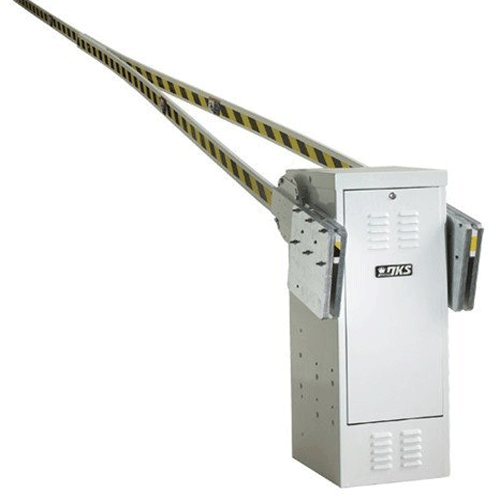

The DKS model 1603 Barrier Gate Operator / Automated Spike System is designed as a modular system allowing for easy flexibility in different applications and easy installation. The 1603 operator is designed with many advanced features and mechanically links the spikes to the barrier arm. The surface mount spikes are easy to install and do not require any trenching or excavating. The 1603 auto-spike system is ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.

CAUTION: Installation and use of traffic control spike units in areas that are subject to freezing weather with potential of snow and ice accumulation IS NOT RECOMMENDED.  The units can freeze in the up position and cause unintended damage or injury due to the inability for the spikes to retract.

A complete 1603 / auto-spike system consist of several different components. A typical system will require a 1603 operator, transfer box, tunnel section(s) as needed, spike section(s) as needed, end cap, barrier arm, arm hardware kit, and speed bumps. A traffic signal and/or warning sign is required with this system.


  • 1/2 HP continuous-duty motor.
  • 115, 230°, 460° VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
  • 40:1 gear-box running in a continuous oil bath.
  • Arm rotates 90° in approximately 2.5 seconds.
  • Class II, III and IV applications.
  • Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)

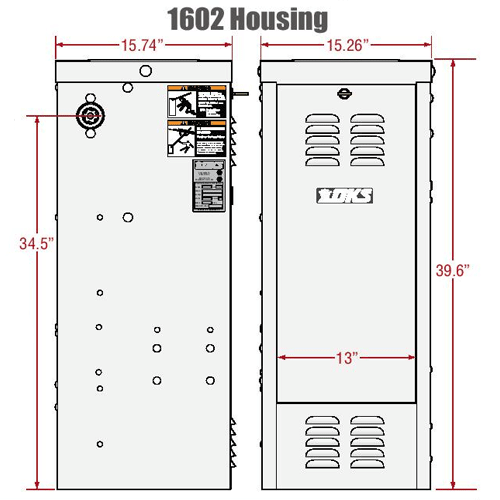

  • Dimensions: 15.25"W x 43.5"H x 15.5"D.


  • Magnetic limit control.
  • Ports for plug-in loop detectors.
  • Automatic sequencing inputs for use with slide and swing gate operators.
  • Up input memory buffer.
  • Down memory option.
  • Multiple up commands.
  • Two convenience outlets.
  • Gate tracker reporting output.
  • Programming switches.
  • Built-in power On/Off switch.
  • Left or right hand mount.
