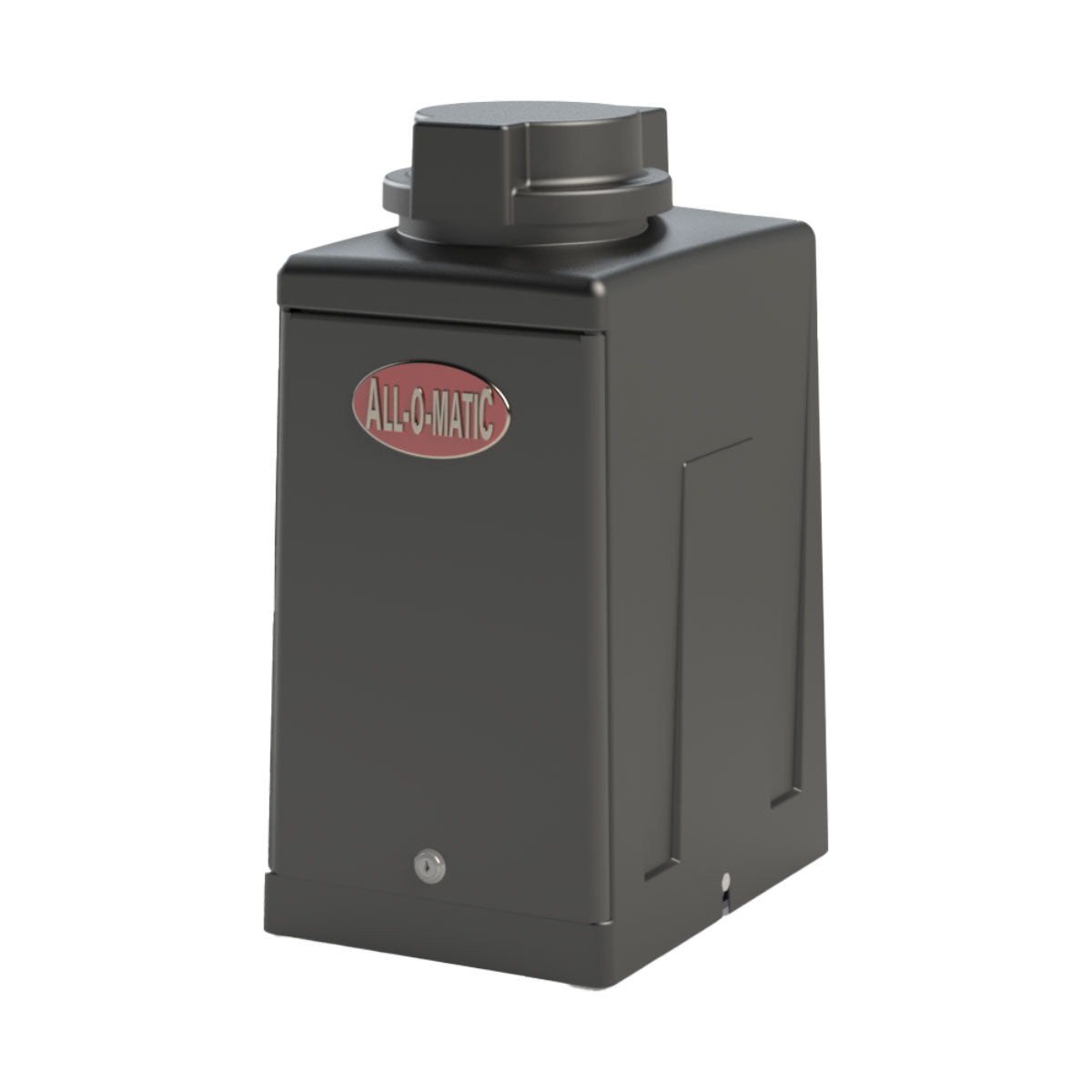

All-O-Matic SW-300 DC Swing Gate Opener

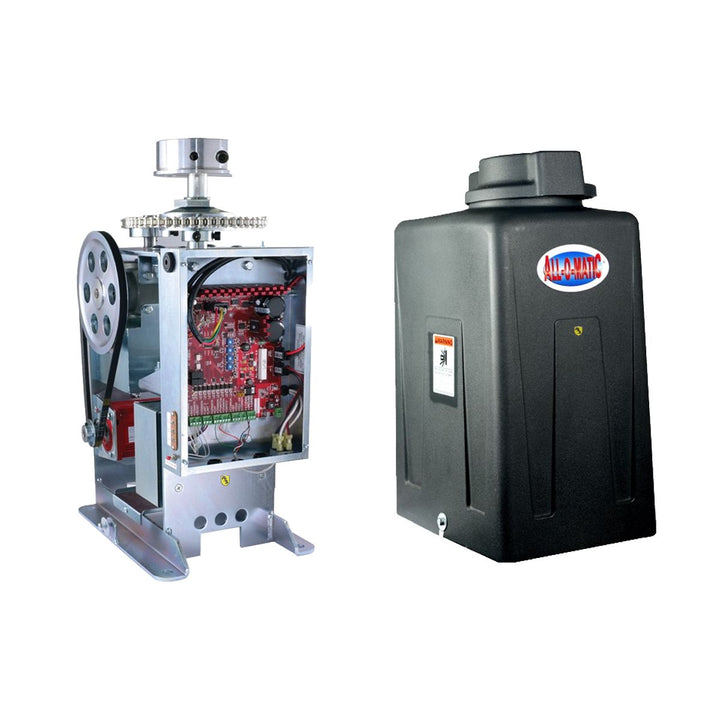

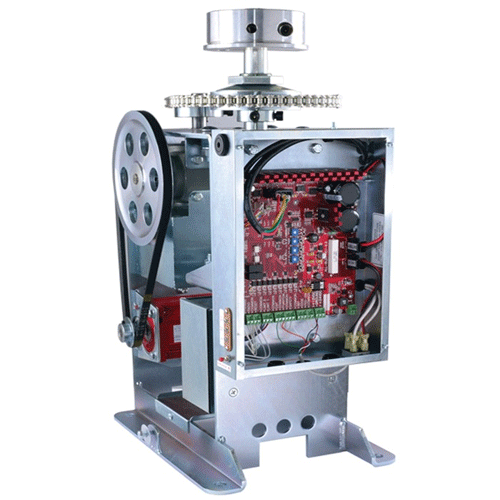

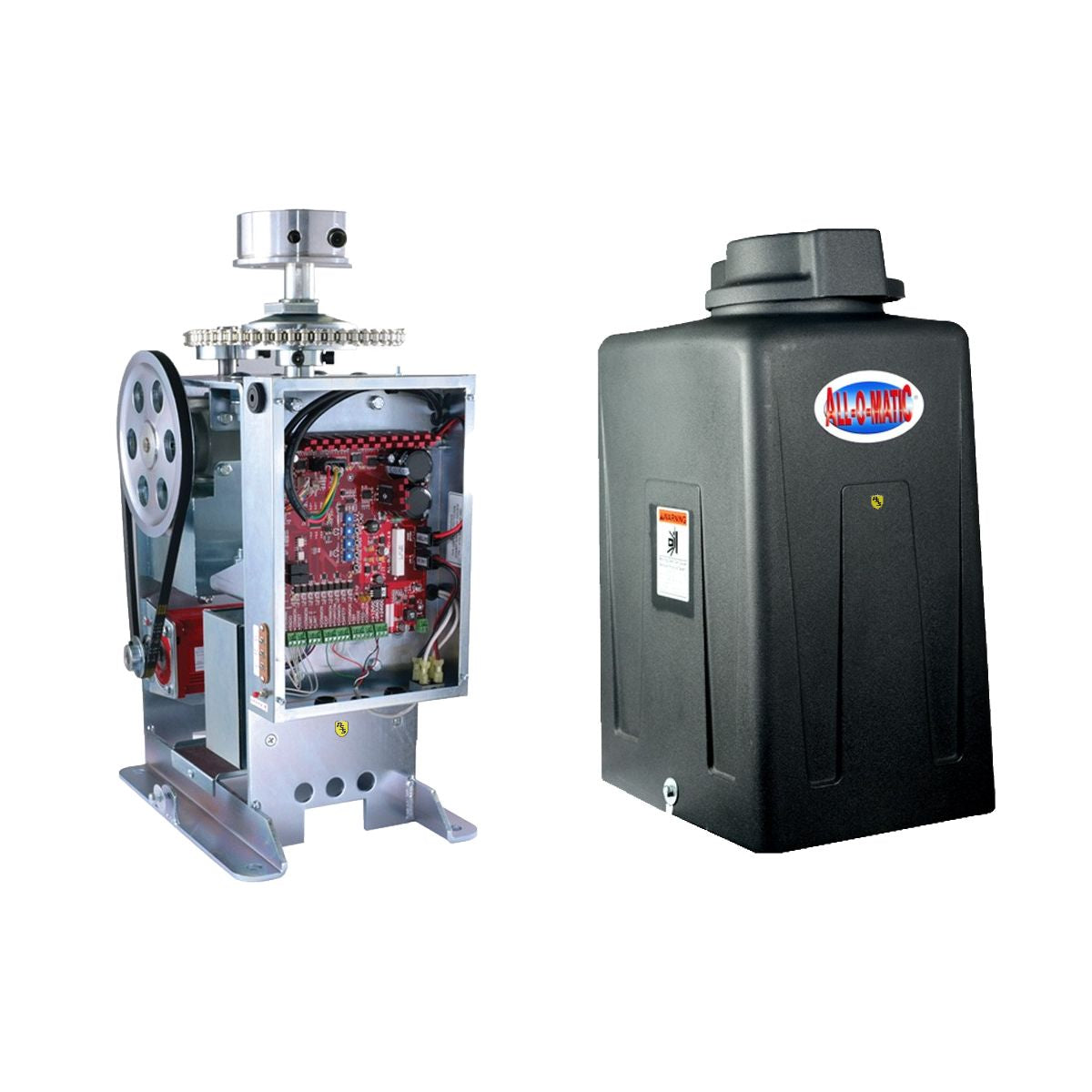

All-O-Matic SW-300 DC Swing Gate Openers - motor construction

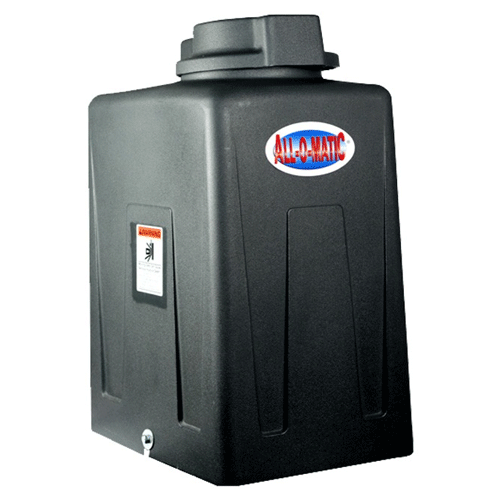

All-O-Matic SW-300 DC Swing Gate Openers - motor cover

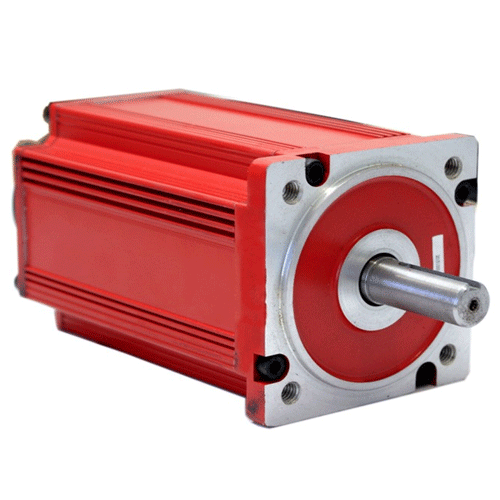

All-O-Matic SW-300 DC Swing Gate Openers - motor

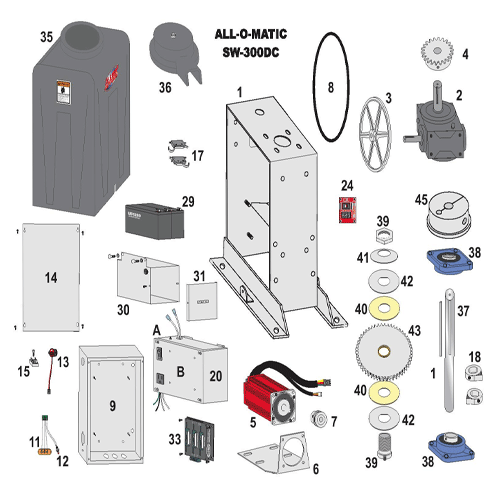

All-O-Matic SW-300 DC Swing Gate Openers - parts

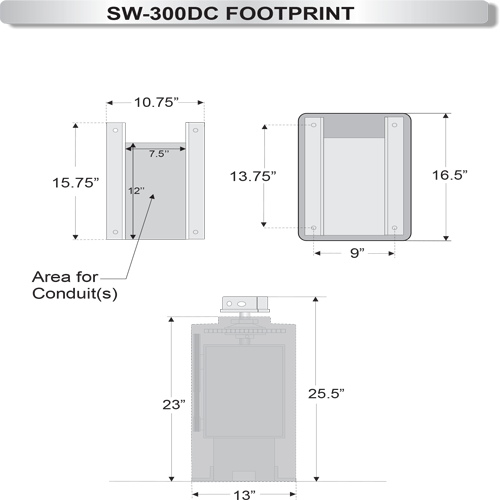

All-O-Matic SW-300 DC Swing Gate Openers - operator dimensions

All-O-Matic SW-300 DC 1/2HP Swing Gate Openers (Arm Included)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,659.97
/
Shipping calculated at checkout.

All-O-Matic SW-300 DC Swing Gate Opener

  • Max gate size: 20ft
  • Max gate weight: 1,200 lbs.
  • 1/2 horsepower motor
  • Arm assembly included

All-O-Matic’s SW-300-DC 1/2HP is designed to be one of the strongest, most durable DC gate operator in the industry. The SW-300 DC relies on its  brushless motor technology (no maintenance, high torque, and smooth quiet operation).  All of the design, programming and construction were all done in house, and is equipped with a built in loop detector rack.  Manufactured with a heavy duty frame and parts that are made to last a life time, plus All-O-Matic is an industry leading warranty.  DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage.

Specs:

  • Motor 24 VDC Brushless Motor ½ HP - Continuous Duty Cycle
  • Duty Cycle Continous
  • Power Options 120/220 VAC Single Phase
  • Gear Box Ratio 60:1 with Internal Clutch
  • Cover Rotationally Molded – Indestructible
  • Dimensions W: 21" – L: 17" – H 25.5"
  • Maximum Gate Length 20 Feet
  • Maximum Gate Weight 1200 lbs
  • Gate Travel Speed Aprox. 90 degrees travel in 17 sec
  • Emergency Release Options No-Bind, Band release Arm
  • Battery Backup Integrated-Capable of up to 250 Cycles Battery: Two 8 Ah Batteries 12VDC
  • Solar Capabilities 12VDC or 24VDC Solar Panel Input
