Seco Larm SD-991A-D1Q Mini No-Cut Electric Door Strike

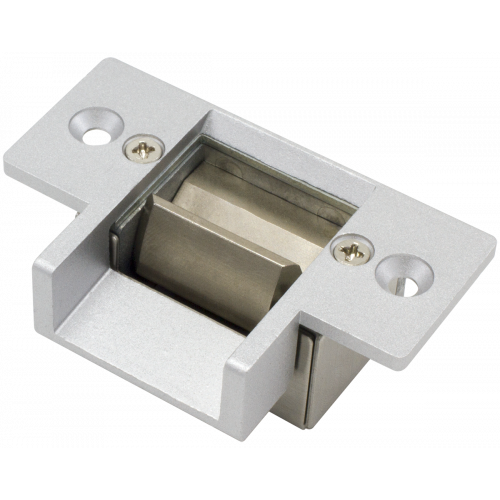

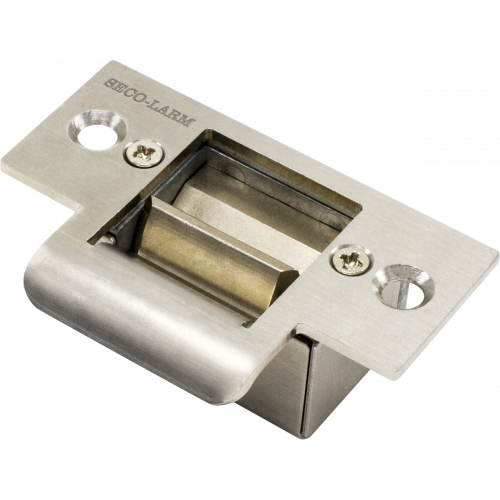

Mini No-Cut Electric Door Strike. Includes stainless steel no-cut and silver aluminum low-cut strike plates. 12VDC, Fail-secure (door locks when power is lost) operation. Optional bronze(SD-991RA-61Q/B) low-cut face plate available.

• Converts cylindrical lock sets into an electronic access-controlled locking system
• Fail-secure operation - Door remains locked if power to the strike is lost
• 2-wire installation, non-polarized connection
• Stainless steel keeper for strength and long life
• Includes Stainless Steel No-Cut and Silver-Colored Aluminum Low-Cut* Strike Plates
• Can be used with virtually any cylindrical door locking system
• Can be used with an optional digital keypad, push-button switch, and other entry devices.
• Suitable for office-type applications
• Reversible non-handed design fits either right-hand or left-hand doors
• Shallow design for use with most metal doors
• Powered by a solenoid, not a buzzer coil
• For indoor use​

Specs

• Operating Voltage     12VDC
• Current Draw     280mA@12VDC
• Latch Throw     1/2" (13mm)
• Static Strength     1,000-lb (454kg)
• Endurance     250,000 Cycles (Factory tested)
• Operating Temperature     14°~120° F (-10°~49° C)
• Operating Humidity     0~85% (Non-condensing)
• Dimensions     Stainless Steel No-Cut Plate: 2-3/4"x1-1/8"x15/16" (70x28x24 mm)
