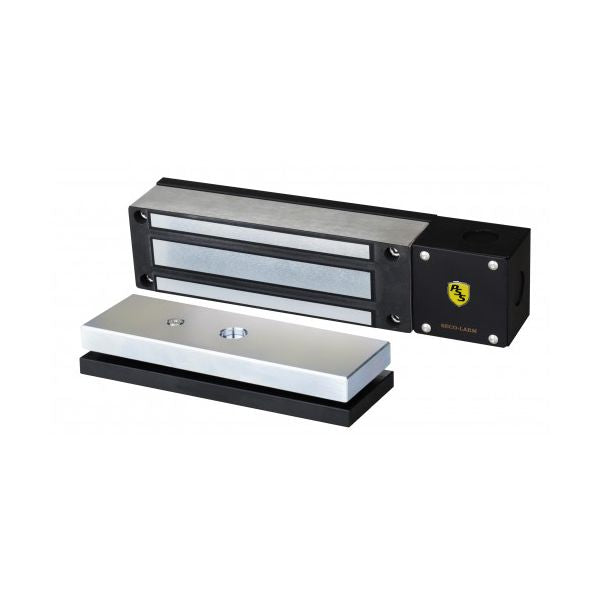

Seco-Larm E-942FC-1K3SQ Maglock with 1,200 lbs. of Holding Force

Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-1K3SQ is primarily designed for swinging gates.

Features

• Holding force 1,200-lb (545kg)
• Operating voltage 12 or 24 VDC ±10%
• Current draw 500mA@12VDC, 250mA@24VDC
• Temperature 14º~131º F (-10º~55º C)
• Magnet size 8"x2-1/2"x1-5/8" (203x63x41 mm)
• Armature size 7-1/4"x2-3/8"x5/8" (185x61x16 mm)
• Junction box N/A 2-1/2"x2-1/2"x2" (63x63x50 mm)
• Overall bracket (with maglock installed) N/A 10-1/2"x2-1/2"x2" (267x63x50 mm)
• Cable length (approx.) 12"
• Certification UL, ULC, CE UL for maglock only
• RoHS compliance Yes
• Weldable bracket
