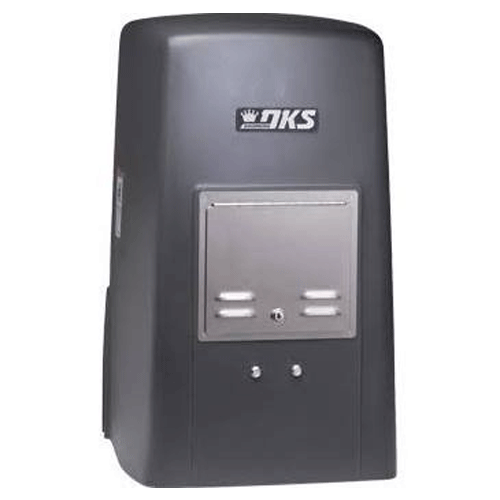

Model 9000-386 Secondary Vehicular Slide Gate Operator
The DKS 9000-386 slide gate operator offers convenience, reliability and safe operation in a small, compact design. The DoorKing 9000-386 is ideally used in residential, commercial or industrial high-use applications. The steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The DKS 9000 slide gate operator uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, the DoorKing 9000-086 slide gate opener will fit most slide gate operation requirements.

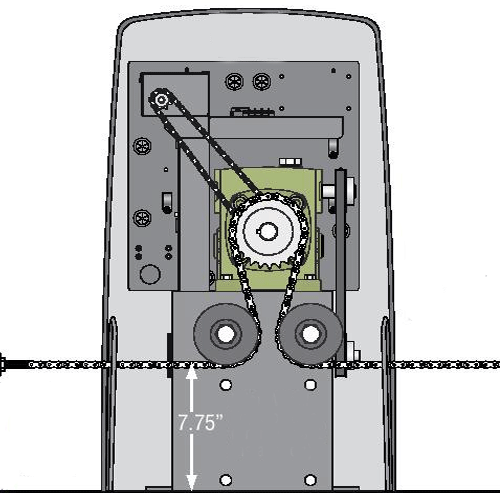

Features:
Steel frame provides strength and quiet operation
“T-Handle” release is easily accessible from front of operator
Operator re-connects automatically when handle is released
Adjustable partial open limit
Direct driven limit nuts for precise gate control
Auto-close timer 1-30 seconds
Ports for plug-in open and reverse loop detectors – DKS detectors only
Selectable loop/reverse input function; stop or reverse
Anti-tailgating feature helps to control un-authorized traffic
Standard normally closed stop circuit
Gate Tracker reporting output provides operator data to DKS access control system
Convenience outlets for accessory transformers
Built-in power switch and alarm reset switch
Simple bi-parting gate interface
Specifications:
Maximum gate width 35-ft.
Maximum gate weight 1000 pounds* (1/2 HP) or 1500 pounds* (1 HP). (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
1/2 or 1 HP continuous-duty motor
115, 230*, 208*, 460* VAC. (*230, 208, and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
Class I, II, III and IV applications
Compliant with UL 325 and 991, ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
