Specifications:

• Maximum gate width 18-ft. (1/2 HP)

• Maximum gate weight 700 pounds* (1/2 HP)
• (*Assumes gate swings level and is in good condition with properly adjusted hardware)
• Other external factors may affect the performance of the gate operator.)
• Swings gate 90 degrees in approximately 12-14 seconds
• 1/2 continuous-duty motor

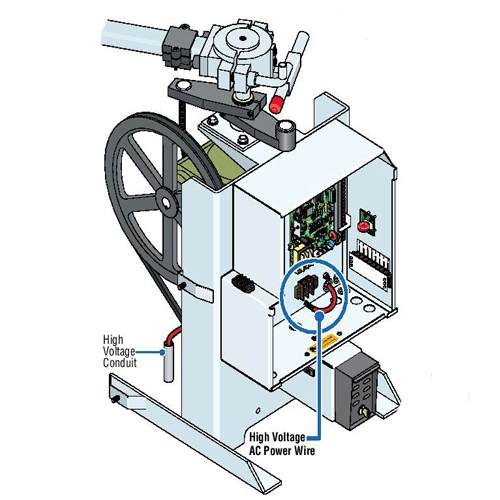

• 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
• Class I, II, III and IV applications
• Compliant with UL 325 and 991
• ETL Listed.
• (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator.
