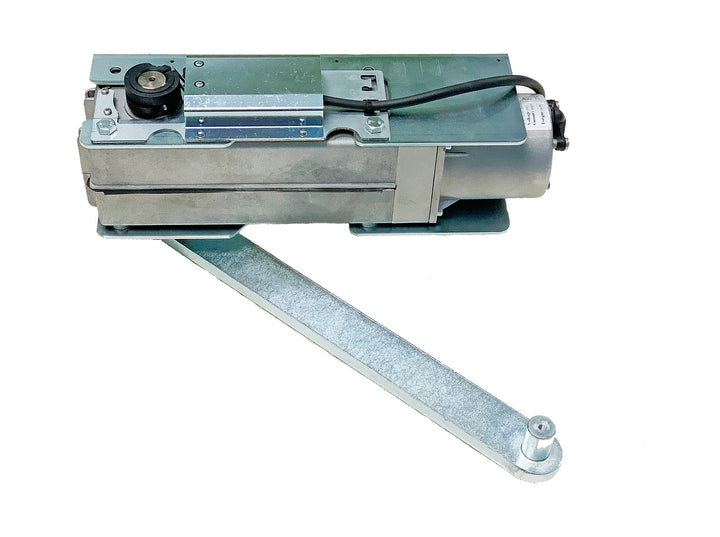

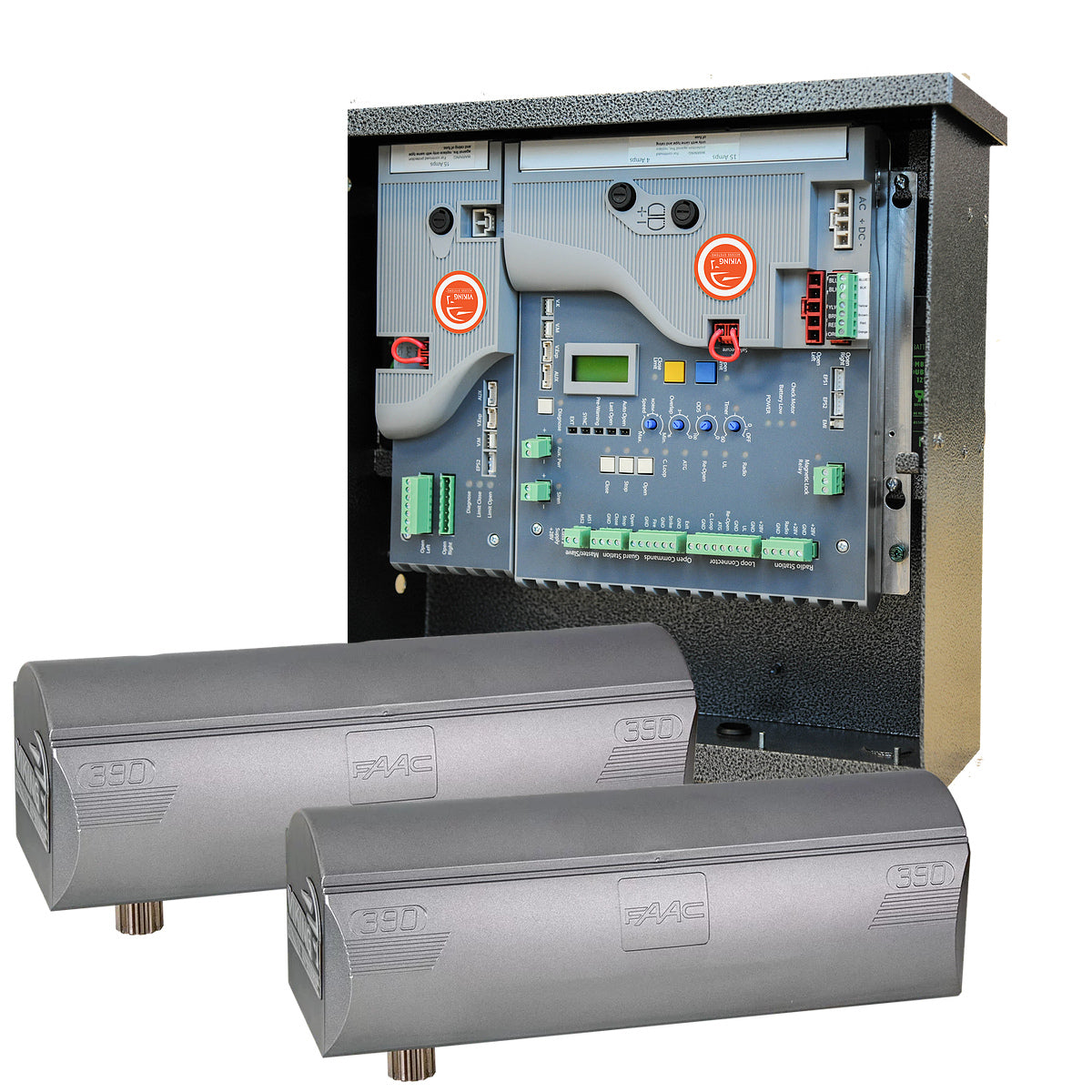

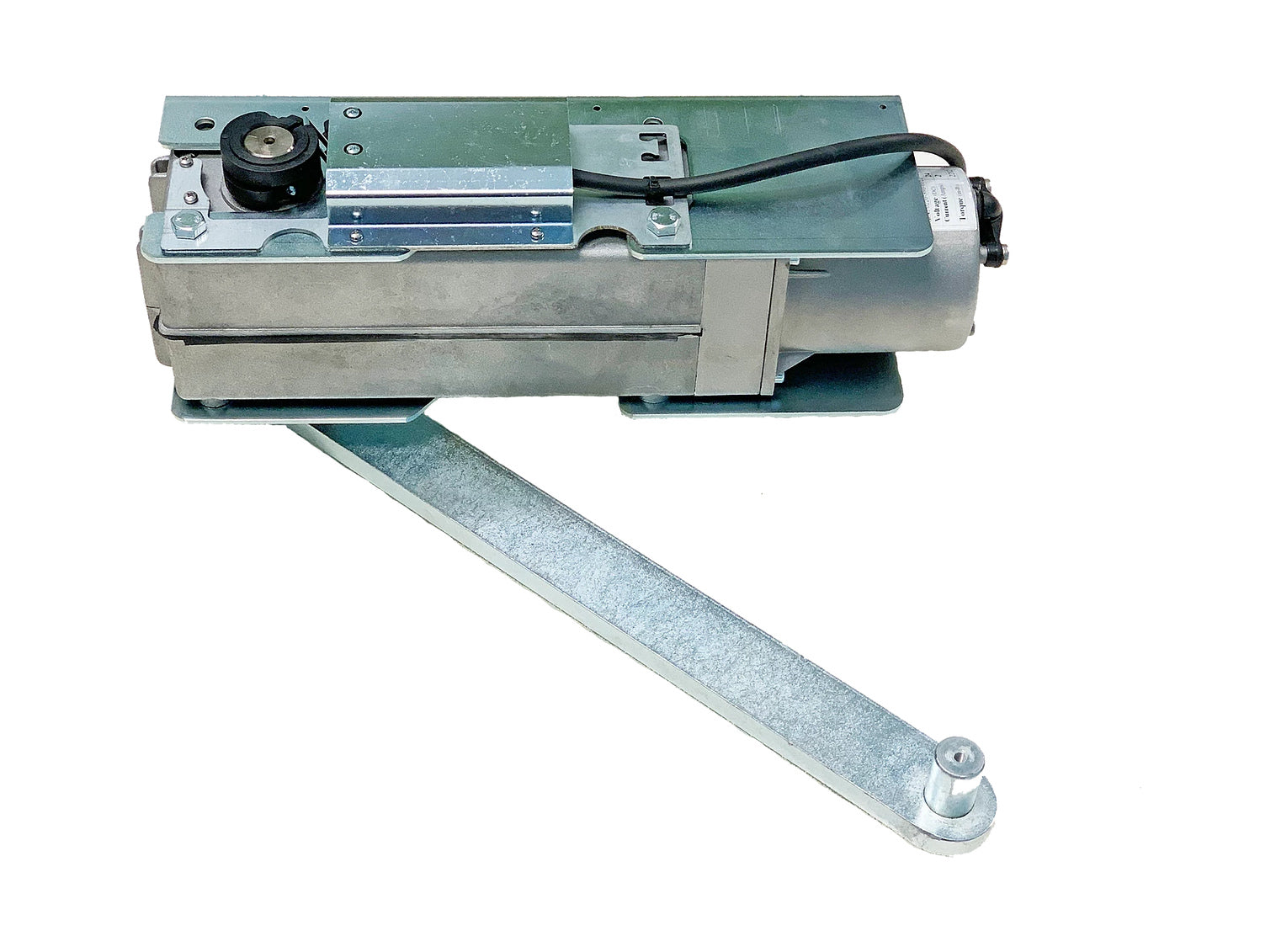

Viking X-390 Dual Column-Mount Swing Gate Operator System
The Viking X-390 Dual System provides a complete bi-parting gate solution with column-mounted operators, perfect for installations where traditional pad mounting isn't feasible. This UL 325/991-certified system handles gates up to 600 lbs/14 ft per leaf, featuring synchronized operation through Viking's wireless communication technology.
Features
Synchronized Operation
- Viking Konnect wireless system
- Secure operator-to-operator communication
- No trenching for inter-operator wiring
- Synchronized gate movement
- Independent limit switch adjustments
- Precision control
- Dual positive stop systems
- Easy-access limit switches on both units
- 10-13 second opening speed per 90° per leaf
Space-Saving Installation
- Column mounting advantages
- No pad construction required
- Minimal footprint per operator
- 184 lb-ft (250 Nm) torque per unit
- Flexible positioning options
- System protection features
- 20,000V/10,000A lightning protection per unit
- Dual surge protection monitoring
- Weather-resistant construction
Specifications
Per Operator Capacity
- Gate parameters:
- Maximum weight: 600 lbs per leaf
- Maximum length: 14 feet per leaf
- Operating temperature: -20°F to +131°F
- 100% continuous duty cycle
- Power specifications:
- 24 VDC operational voltage
- 120/240 VAC single phase power input
- High-efficiency motor systems
Advanced Features
Control & Integration
- V-Flex control system
- LCD diagnostic displays on both units
- Built-in three-button stations
- Automatic closure timers
- Viking Monitor compatibility
- Power management
- Independent battery backup systems
- Up to 400 continuous cycles per operator
- Solar compatibility for both units
- Large box options for extended backup
