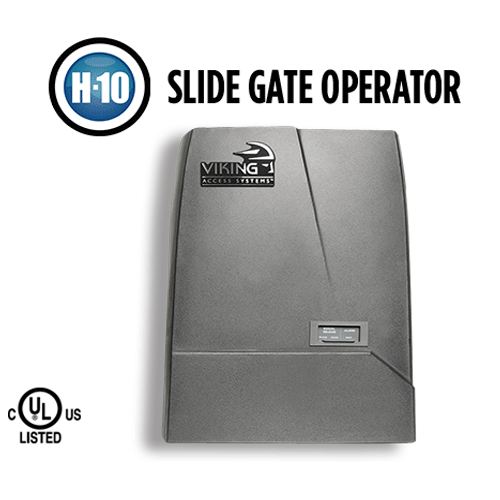

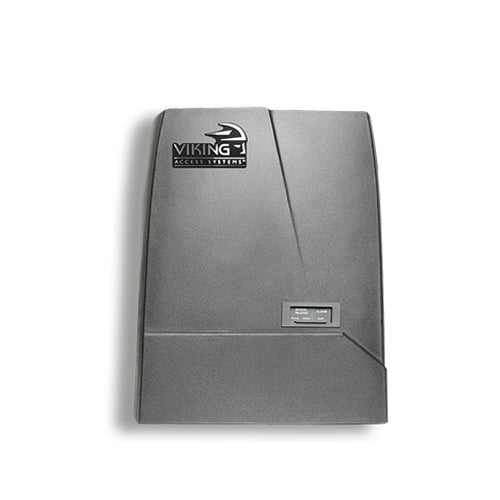

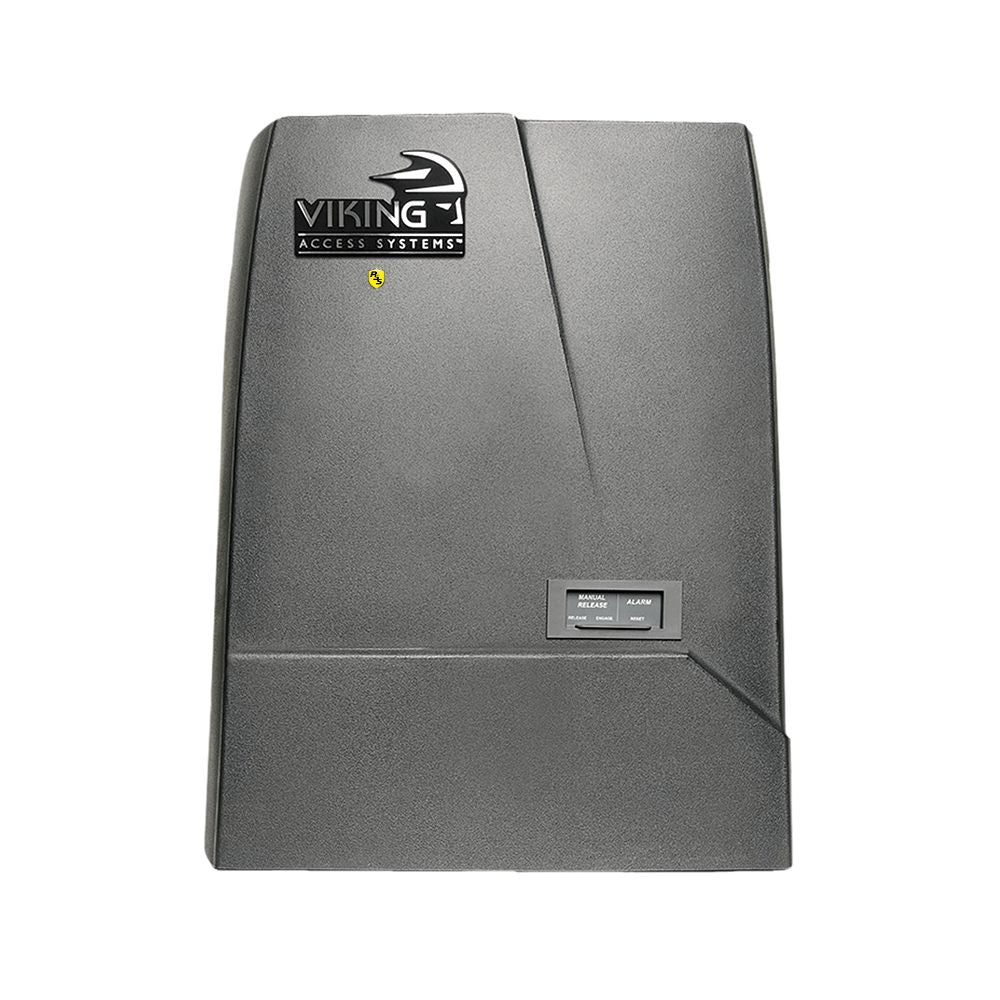

Viking H-10 Heavy-Duty Slide Gate Operator

The Viking H-10 is a powerful slide gate operator designed for high-traffic commercial and residential applications. Featuring a robust 1 HP motor and Smart Positioning System, this UL325-compliant operator handles gates up to 2200 pounds or 75 feet in length, making it ideal for demanding installations requiring superior performance.

Key Features

Advanced Control System

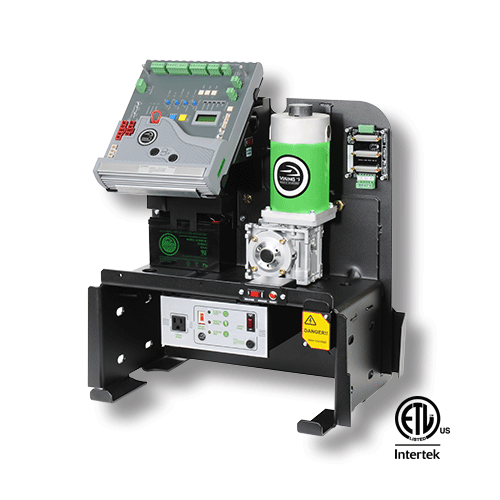

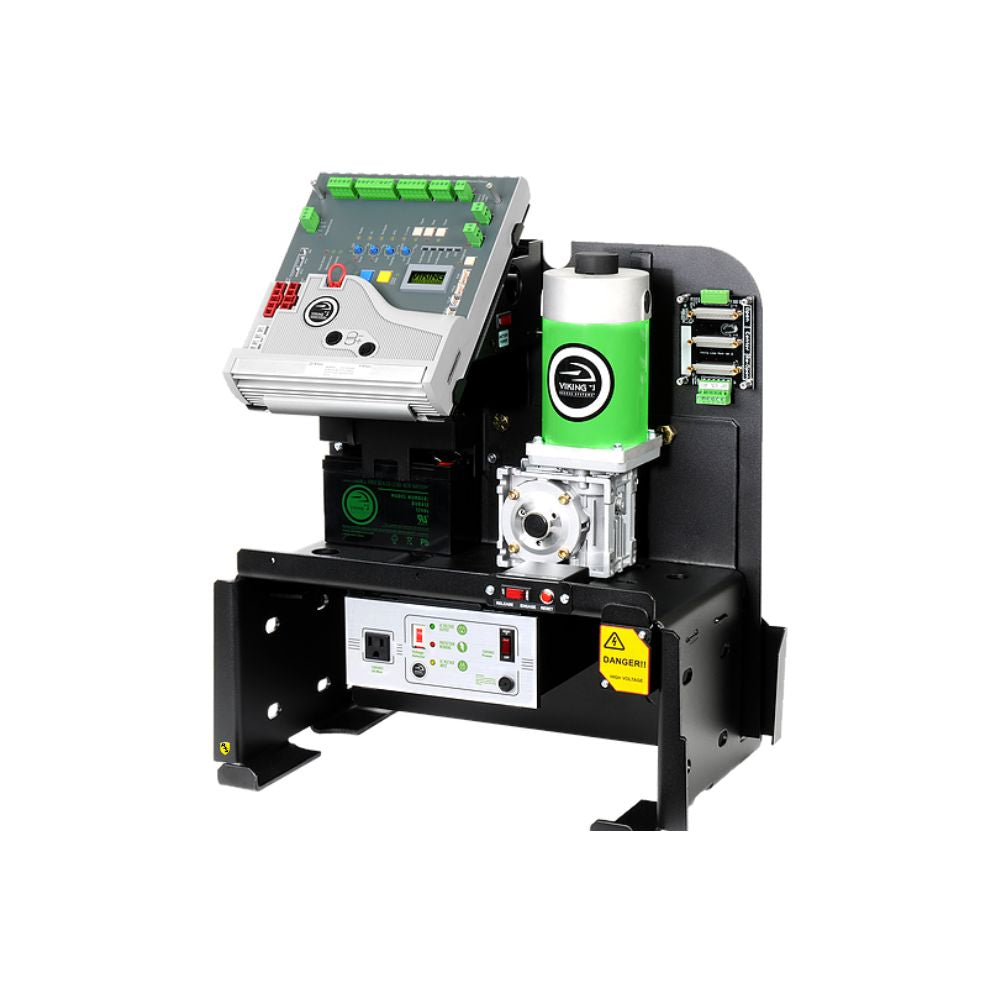

• V-Flex control board with real-time LCD diagnostic display
• Smart Positioning System for accurate gate tracking during power outages
• Compatible with Viking wireless accessories for extended functionality
• Removable power supply box for flexible installation options

High-Performance Design

• 1 HP motor for superior pulling power
• True Battery Backup System with 100 continuous cycles
• Integrated heater for operation down to -20°F
• Advanced lightning protection (20,000 volts/10,000 amps)

Industrial-Grade Construction

• Multi-layer corrosion protection system
• G90 galvanized steel with clear zinc plating
• UV-rated powder coating for weather resistance
• 1/4-inch steel chassis construction
• Post-mount ready design for versatile installation

Specifications

Operational Capabilities

• Maximum Gate Weight: 2200 pounds
• Maximum Gate Length: 75 feet
• Operating Speed: 12 inches per second
• Duty Cycle: 100% continuous operation

Power System

• 24 VDC with 1 HP motor
• 120/240 VAC single phase power options
• Dual 7 AmpHr 12 VDC batteries
• Remote power box capability

Safety Features

• UL325 certified for Classes I, II, III, & IV
• Built-in surge protection monitoring
• Adaptive digital limit system
• Full diagnostic display interface
