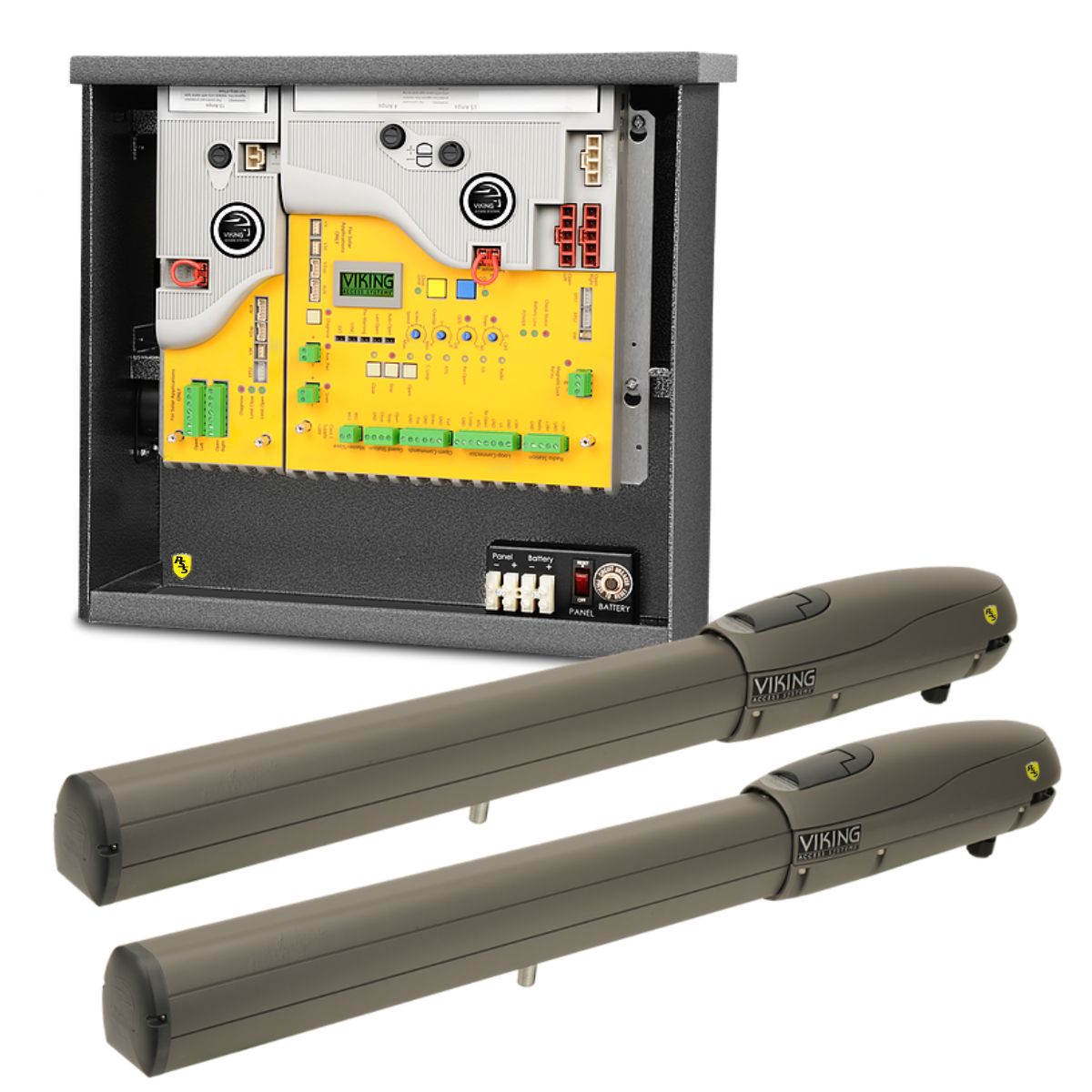

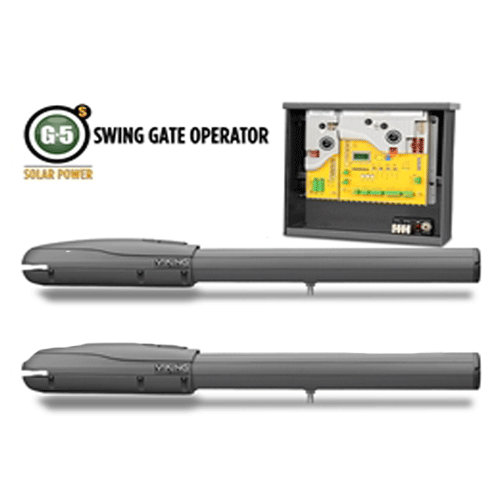

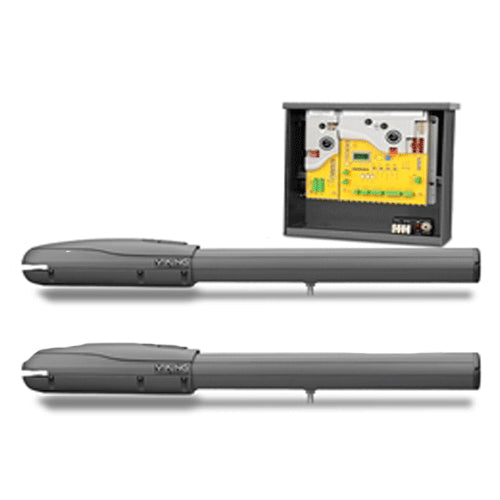

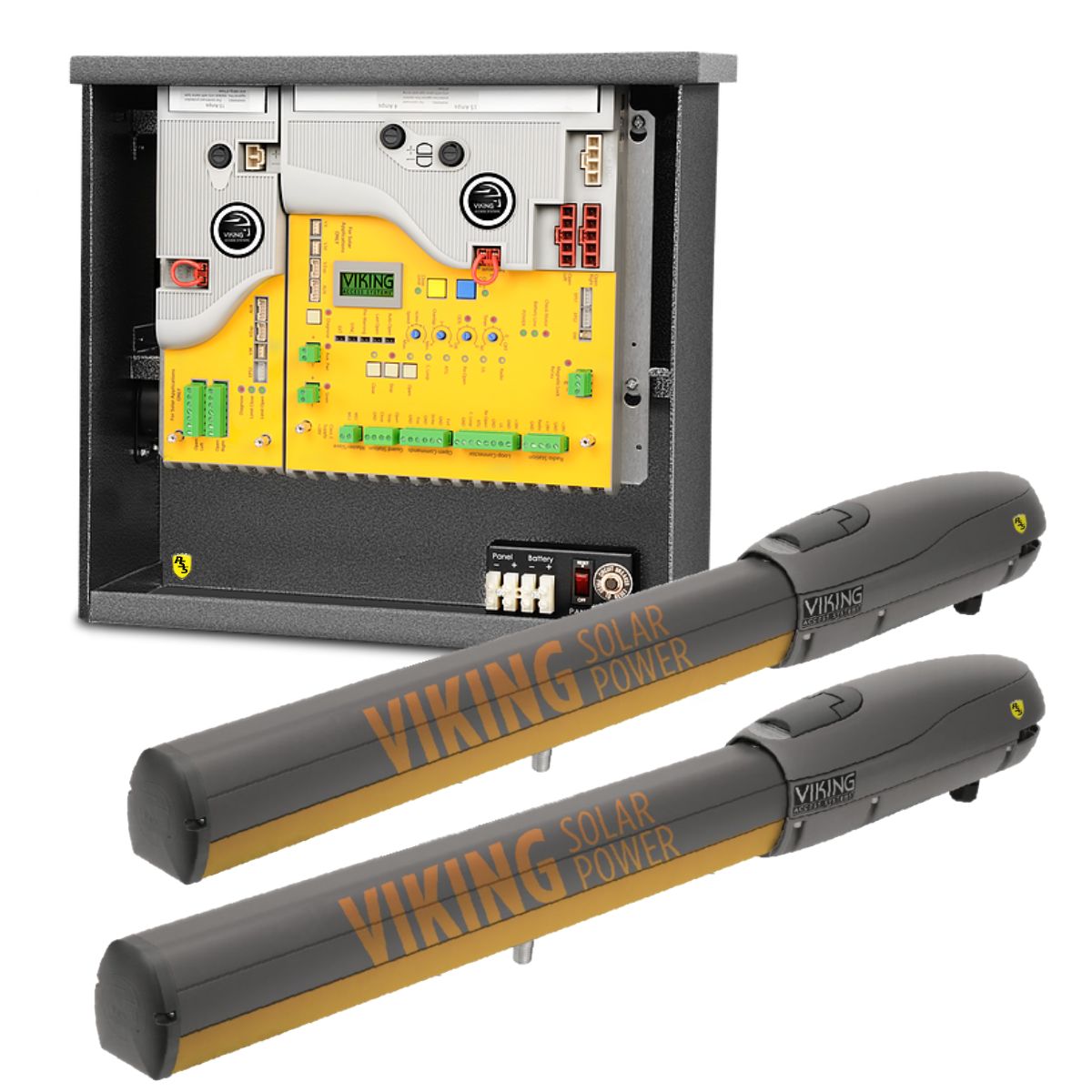

Viking G-5 Solar Dual Swing Gate Operator System
The Viking G-5 Solar Dual system represents a milestone in solar-powered gate automation. Each operator features a 24VDC motor powered by a single 12V battery and solar panel, providing an energy-efficient solution for double-gate applications up to 1,000 pounds per leaf. Perfect for residential properties and ranches where traditional power isn't practical, this system delivers reliable performance with eco-friendly operation.
Key Features
High-Efficiency Operation
- 24VDC motor system with innovative 12V power supply per operator
- 100% continuous duty cycle for reliable 24/7 operation
- 14-16 second opening time per 90-degree swing
- Water-resistant motors with high-torque, low-current design
Smart Control System
- Synchronized dual-gate management
- LCD diagnostic display with plain English messages
- Real-time voltage monitoring for both operators
- Easy-to-use control interface
Protection Features
- Industry-leading surge protection (20,000V/10,000A)
- Multi-layer chassis protection for extreme conditions
- Secure lockable covers with Viking-designed key system
- Comprehensive weather resistance
Specifications
Gate Capacity
- Maximum Weight: 1,000 pounds per leaf
- Maximum Length: 16 feet per leaf
- Operating Temperature: -20°F to 160°F
- Opening Speed: 14-16 seconds per 90°
Power System
- Motor Type: 24VDC high-efficiency
- Power Supply: 12VDC per operator
- Operation: 100% continuous duty cycle
- Solar Requirement: One 12V panel per operator*
Safety & Security
- Real-time system monitoring
- Independent arm control
- Built-in surge protection
- Weather-resistant construction
*Battery and Solar Panel not included
