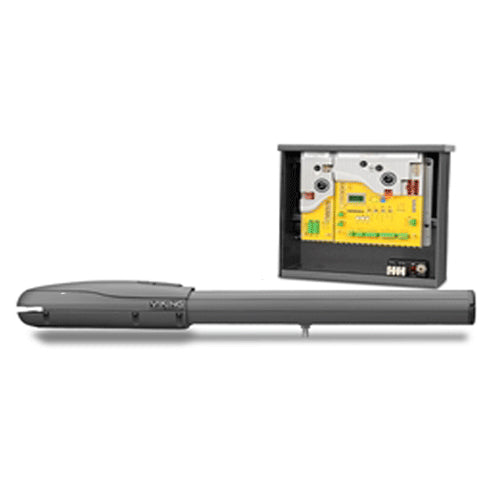

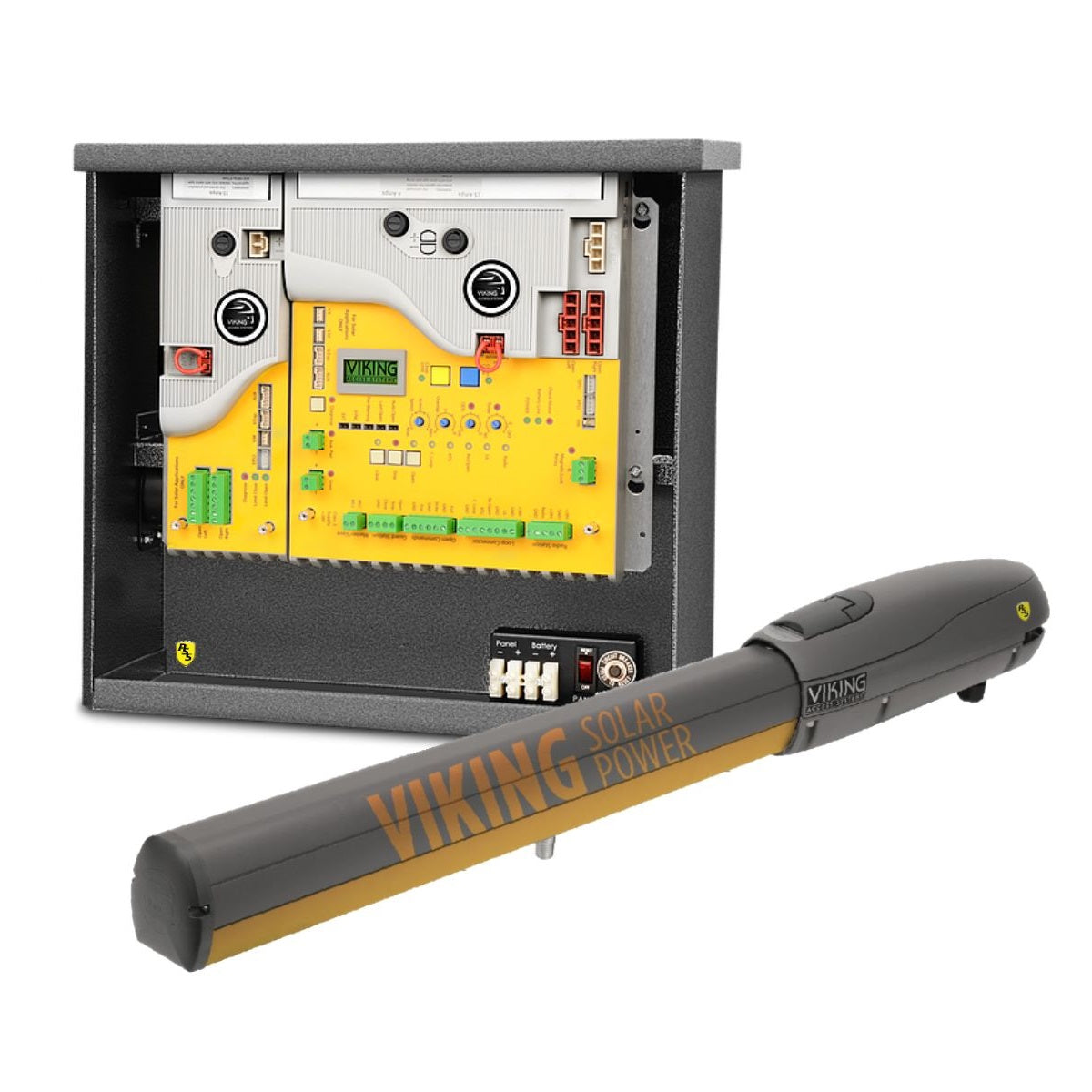

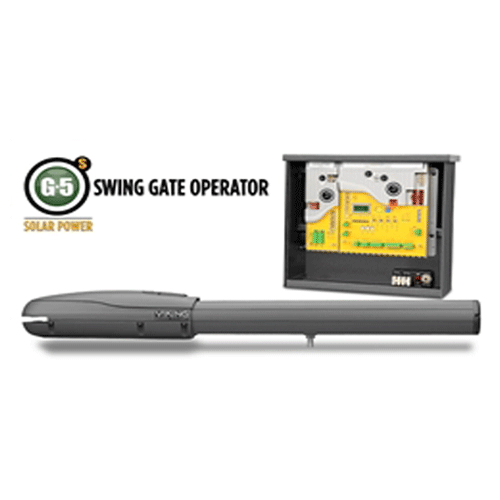

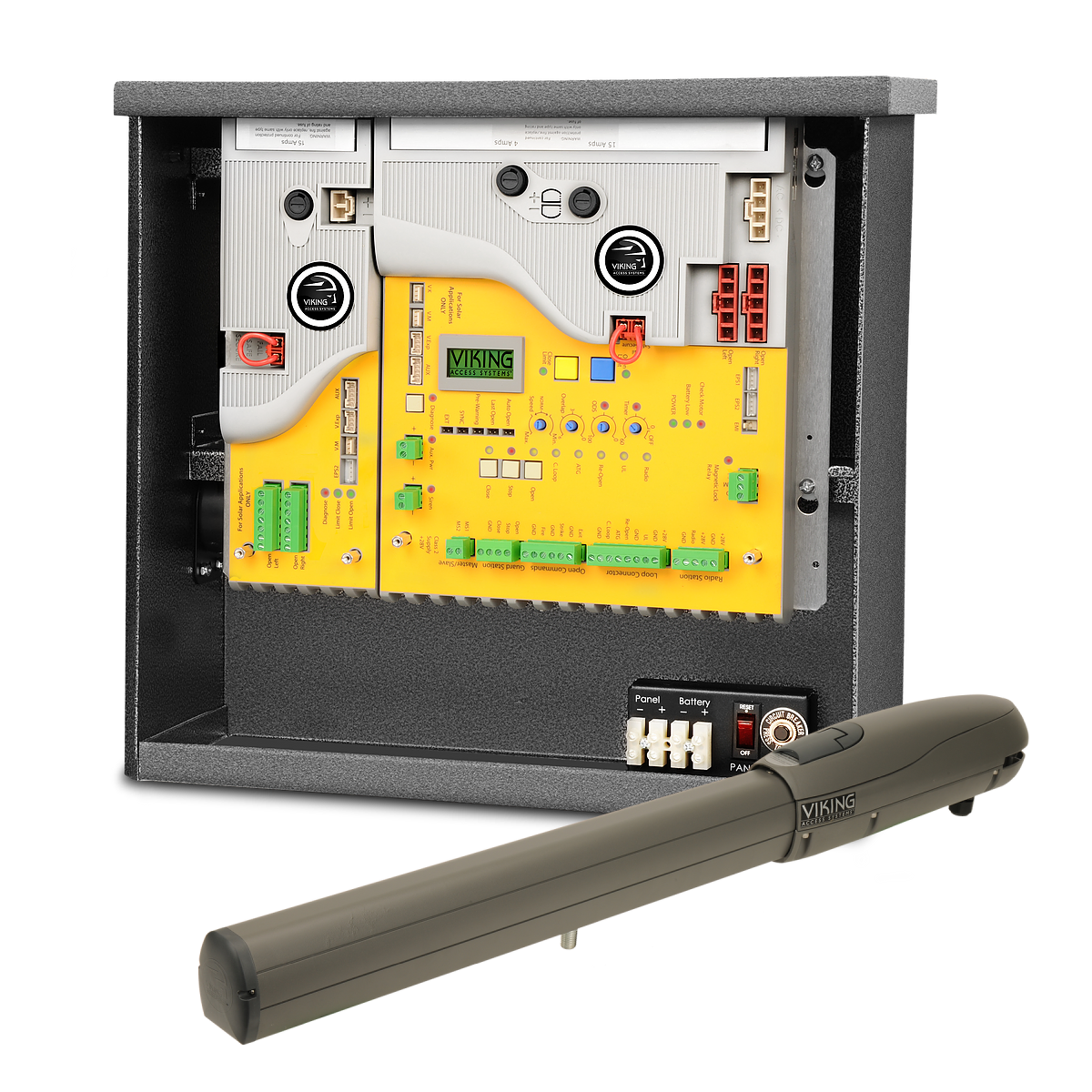

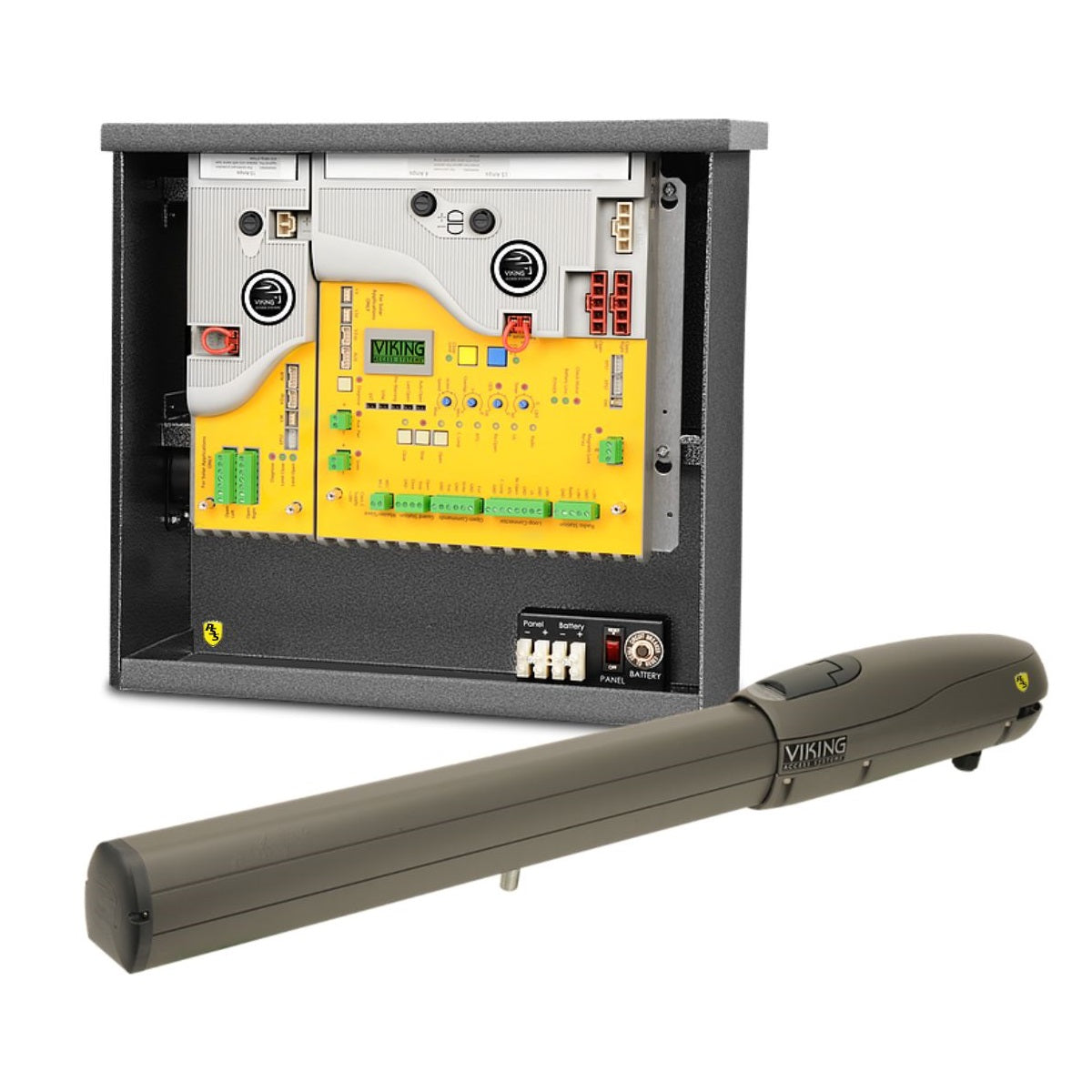

Viking G-5 Solar-Powered Swing Gate Operator

The Viking G-5 is an innovative solar-powered swing gate operator that combines eco-friendly operation with reliable performance. Using a single 12V solar panel and battery to power its 24VDC motor, this UL-listed operator efficiently handles gates up to 1,000 pounds or 16 feet in length, making it perfect for residential applications where traditional power sources are impractical.

Key Features

Solar Power Management

• Advanced power management system maximizes daily operation cycles
• Innovative sleep mode reduces power consumption for non-essential accessories
• Real-time LCD display shows solar panel, charging, and battery voltages
• Industry-leading charging system optimization

Efficient Performance

• 24VDC high-efficiency motor with built-in high torque
• Soft start/stop operation for smooth gate movement
• 14-16 seconds opening time per 90 degrees
• Water-resistant motor design for reliable operation

Protection Features

• Multi-layer corrosion protection with G90 galvanized steel
• Advanced lightning protection up to 20,000 volts/10,000 amps
• UV-rated powder coating for weather resistance
• Lockable cover with Viking-designed key system

Specifications

Operational Capabilities

• Maximum Gate Weight: 1,000 pounds
• Maximum Gate Length: 16 feet
• Operating Temperature: -4°F to 160°F
• Operating Speed: 14-16 seconds per 90°

Power System

• Solar Power Supply: 12VDC
• Battery Requirement: Single 12V system
• Solar Panel: Single 12V panel required
• Power-saving technology with sleep mode

Safety Features

• UL325 listed for Class I residential applications
• Built-in surge protection monitoring
• Real-time diagnostic display
• Comprehensive system monitoring
