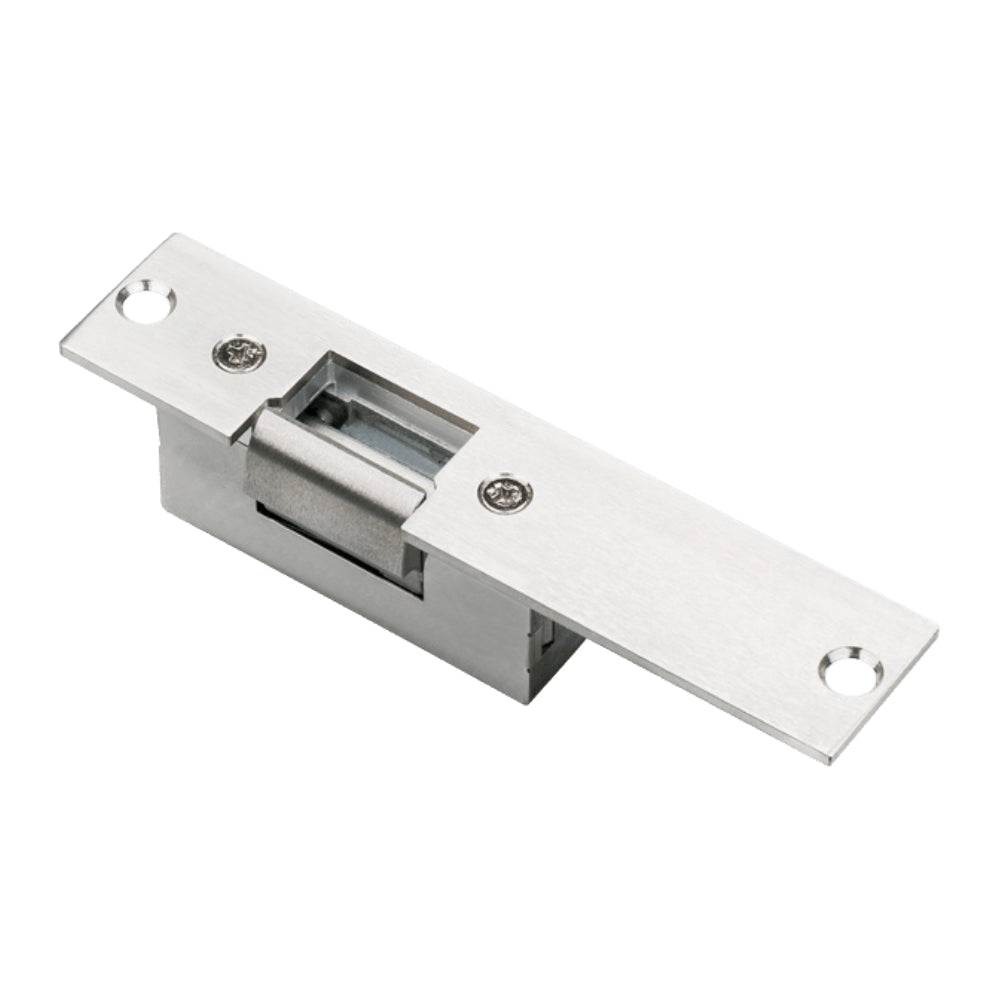

Seco Larm SD-994A-A1AQ Door Strike
Asymmetric (strike portion not centered on the reversible faceplate). Fail Secure operation. The SECO-LARM® Electric Strikes are the ideal way to convert cylindrical lock sets into an electronic access-controlled locking system. The strikes come in two varieties: asymmetric and symmetric. Both models come with a reversible faceplate for right-hand or left-hand doors and have a fail-secure operation.
Features
- 8~16VAC / 12VDC Operating voltage
- For use on wood doors
- Can be used with virtually any cylindrical-door locking system
- Fail-secure operation
- US26D Chrome faceplate
- Miniature lock body for easier installation
- Faceplate size: 57/8” x11/4” x1/8” (150x32x3.2 mm)
- Corrosion-resistant case and moving parts
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Reversible for right- or left-hand doors
- Current draw: 800mA@16VAC 750mA@12VDC
- Keeper depth: 21/32” (16.8mm)
- Latch depth: 3/4” (19mm)
- Strike depth: 11/2” (38mm
Specifications
- Operating Voltage: 8~16 VAC/12VDC
- Operation: Fail secure
- Current Draw: 800mA@16VAC, 750mA@12VDC
- Operating Temperature: 14º~113º F (-10º~45º C)
