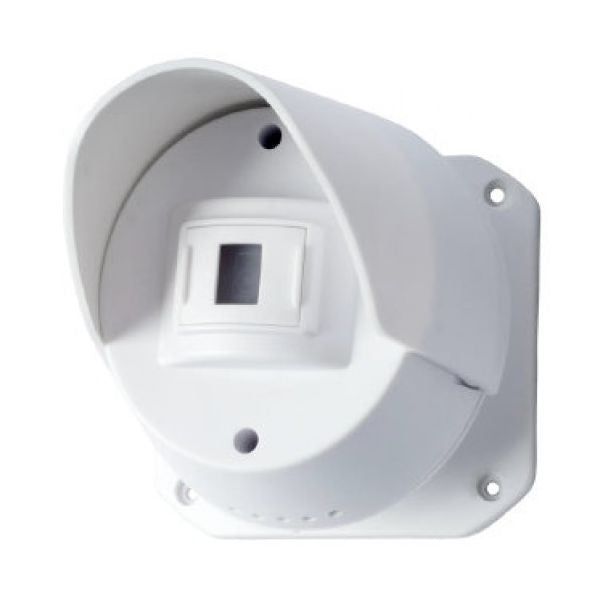

Seco Larm RA-4961-DSQ

A wireless Outdoor PIR Sensor for use with the RA-4961 series receivers. Also known as RA-4961-PRQ

Features

For use with the RA-4961 series RF receivers
Wirelessly monitors driveways, walkways or other areas
Up to 1,000ft (305m) transmission range*
Programmable activation time
Programmable sensing range up to 39ft (12m)
Runs on batteries for a convenient, wireless installation
Adjustable mounting angle
Weatherproof (IP45)
*Line of sight. Transmission range will vary depending on installation and operating environment.

Specifications

Frequency	914.8MHz
Channels	1
Transmission Range	Up to 1,000ft (305m)
Power Supply	4x AA Batteries (Not Included)
Current Draw	Standby - 70μA, Max- 18mA
Estimated Battery Life	300 days (@ 3 triggers/day)
Low Battery Indicator	Zone LED on receiver blinks continuously
Enclosure	Weatherproof IP45
PIR Sensor Detection Angle	12° (with lens cover) / 15° (without cover)
PIR Sensor Range	13’ (4m) / 23’ (7m) / 26’ (8m) / 39’ (12m)
Operating Temperature	-4°~140°F (-20°~60°C)
Dimensions	3-7/8” x 3-13/16” x 4-3/4” (98 x 97 x 120 mm)
