Seco-Larm E-931CS22RFCQ Wireless Entry Alert System

ENFORCER E-931CS22RFCQ Wireless Entry Alert System

The ENFORCER E-931CS22RFCQ is a versatile, self-contained wireless entry alert system designed for seamless security monitoring in both commercial and residential settings. This complete system features a weatherproof photoelectric beam sensor that communicates wirelessly with the included speaker, providing instant alerts when someone enters your property.

Features

• Wireless technology eliminates the need for complex wiring between sensor and speaker
• Weatherproof IP55-rated sensor designed for reliable outdoor operation
• Long-range performance with sensor detection up to 22ft (7m) and wireless communication up to 328ft (100m)
• Flexible alert options with selectable chime or alarm sounds
• Adjustable volume control (0-90dB) for customized alert levels
• Adjustable alarm duration from 3-30 seconds when in alarm mode
• Each sensor can pair with unlimited speakers for property-wide coverage
• Each speaker can pair with up to 5 different sensors for comprehensive monitoring

Perfect For

• Driveway entrance monitoring
• Retail store entrance alerts
• Warehouse security zones
• Office entry notifications
• Home perimeter protection

Smart Technology

• Reflective photoelectric beam technology for accurate detection
• LED alignment indicator for easy installation
• Easy pairing system for additional speakers
• Compatible with optional digital counter for entrance tracking

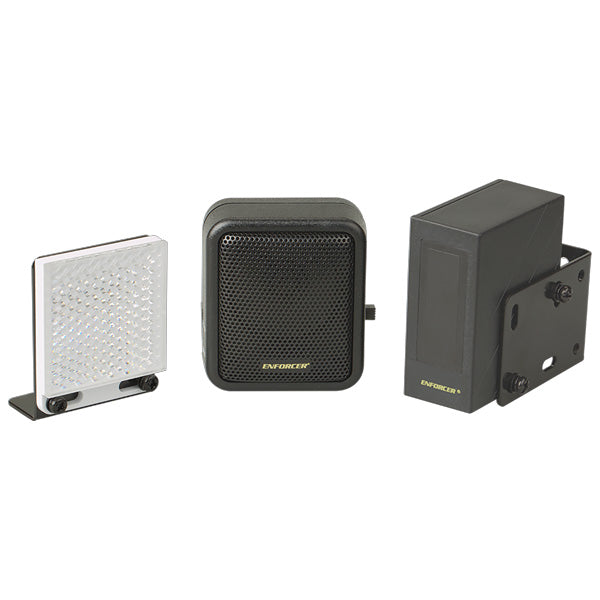

Complete Kit Includes

• Weatherproof wireless reflective sensor (transmitter)
• Wireless speaker (receiver)
• 3" round reflector
• Two 12VDC power adapters
• Mounting brackets for sensor, reflector, and speaker
• Small screwdriver for adjustments
• Complete hardware kit for installation

Specifications

Technical Specifications

Sensing Range:

• Photoelectric Beam Range: Up to 22ft (7m)
• Wireless Communication Range: Up to 328ft (100m)*

*Range may vary depending on installation environment and obstacles

Electrical:

• Operating Voltage: 12VDC (power adapters included)
• Operating Frequency: 433.92 MHz
• Sensor Current Draw: 5mA standby, 20mA active
• Speaker Current Draw: 25mA standby, 100mA active
• Power Input: 2.5mm DC Jack

Physical:

• Sensor Dimensions: 3¼" x 2⁹⁄₁₆" x 1½" (82x66x38mm)
• Speaker Dimensions: 3¼" x 2¹⁵⁄₁₆" x 1⁹⁄₁₆" (83x75x40mm)
• Sensor IP Rating: IP55 (weatherproof)
• Operating Temperature: 32°~122°F (0°~50°C)

Functionality:

• Volume: Adjustable 0~90dB
• Alarm Time: Adjustable 3~30 seconds
• Speaker Output: Selectable Chime/Off/Alarm modes
• Light Source: IR LED

Warranty: One-year limited warranty from SECO-LARM against defects in material and workmanship during normal use.
