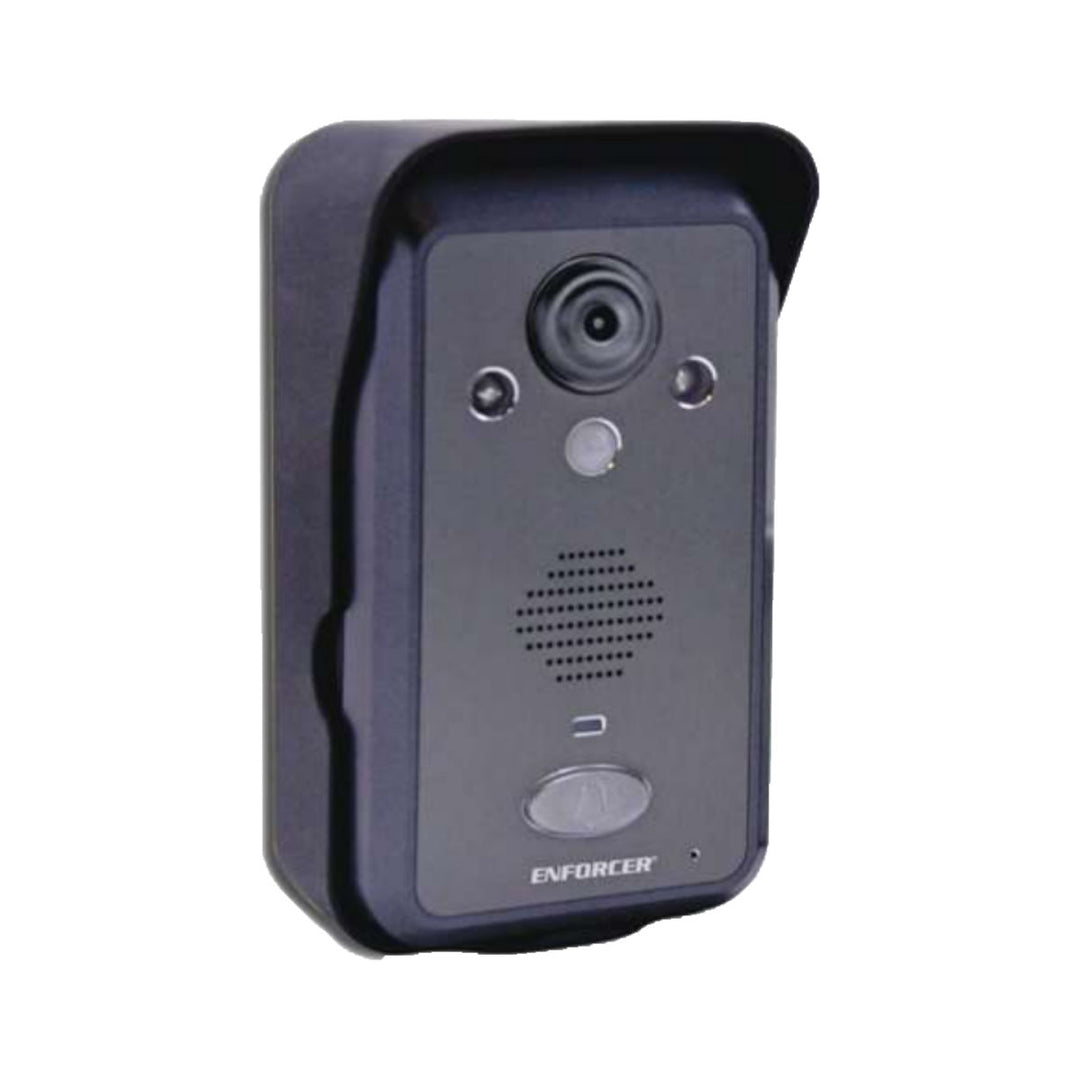

Seco-Larm DP-266-CAQ Additional Camera

Additional Color Video Door Phone Camera for DP-266-1C7Q.

Features

• Camera has built-in IR LEDs for nighttime use
• Camera powered by 9~16 VAC/5~16 VDC
• Camera includes a built-in PIR sensor that activates the camera and takes photos of the visitor when they approach
• Adjustable camera pan and tilt angle—up to 20° from centerline in any direction—to allow for mounting variations

Specifications

• Type     Color camera
• Chip     CMOS
• Resolution     640 TV Lines
• Lens     2mm
• Field of view     170°
• Camera angle adjustment     Up to 20° any direction
• Operating voltage     9~16 VAC / 5~16 VDC
• Relock delay     3/6/8 Seconds
• Relay output     3A@24VAC/24VDC
• Current draw     Active: 300mA@12VDC, Standby: 15mA@12VDC
• Battery life     Active: ~7 hours, Standby: ~60 Days
• IR LED Range     5′ (1.5m)
• IR LED Frequency     940nm
• PIR Detection range     9′ (3m)
• PIR Detection angle     60°
• Dimensions (with bracket)     3-1/8″x5-11/16″x1-15/16″(80x144x50 mm)
• Operating temperature     14°~122° F (-10°~50° C)
