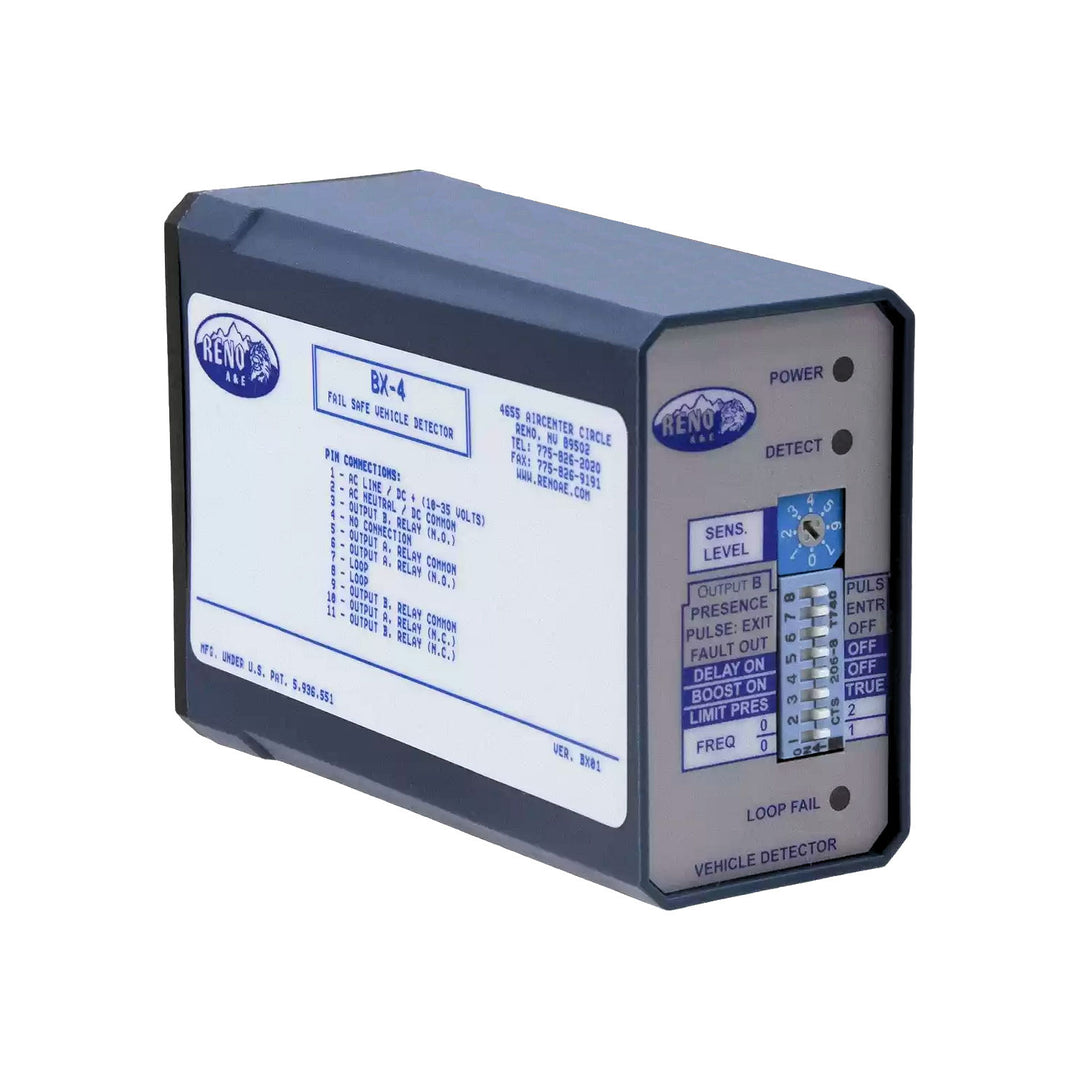

Reno BX4 Series Loop Detector

12VDC, 24VDC or 24VAC (Harness Required, see Reno Harness)

• Dual Relay Loop Detector 12VDC, 24VDC or 24VAC
• Delay Relay Outputs:
• Output A: Limited Presence, True Presence TM
• Output B: Presence (Duplicates Output A), Pulse-on-Entry, Pulse-on-Exit, Fault Output
• Delay Outputs A & B for two seconds
• Eight levels of sensitivity selectable from the front panel rotary switch
• External DIP switches
• Sensitivity Boost for applications where high-bed vehicles might be encountered
• Detect Memory feature maintains detection during momentary power interruptions of up to two seconds
• Fail LED indicates current loop failures or loop failures that have occurred
• Four loop frequencies selectable from the front panel
• Super bright LED indicators for power, detect, and loop fail
• 11-pin Amphenol connector
• Fail-Safe or Fail-Secure versions available
• 3.00” High x 1.75” Wide x 4.30” Deep
