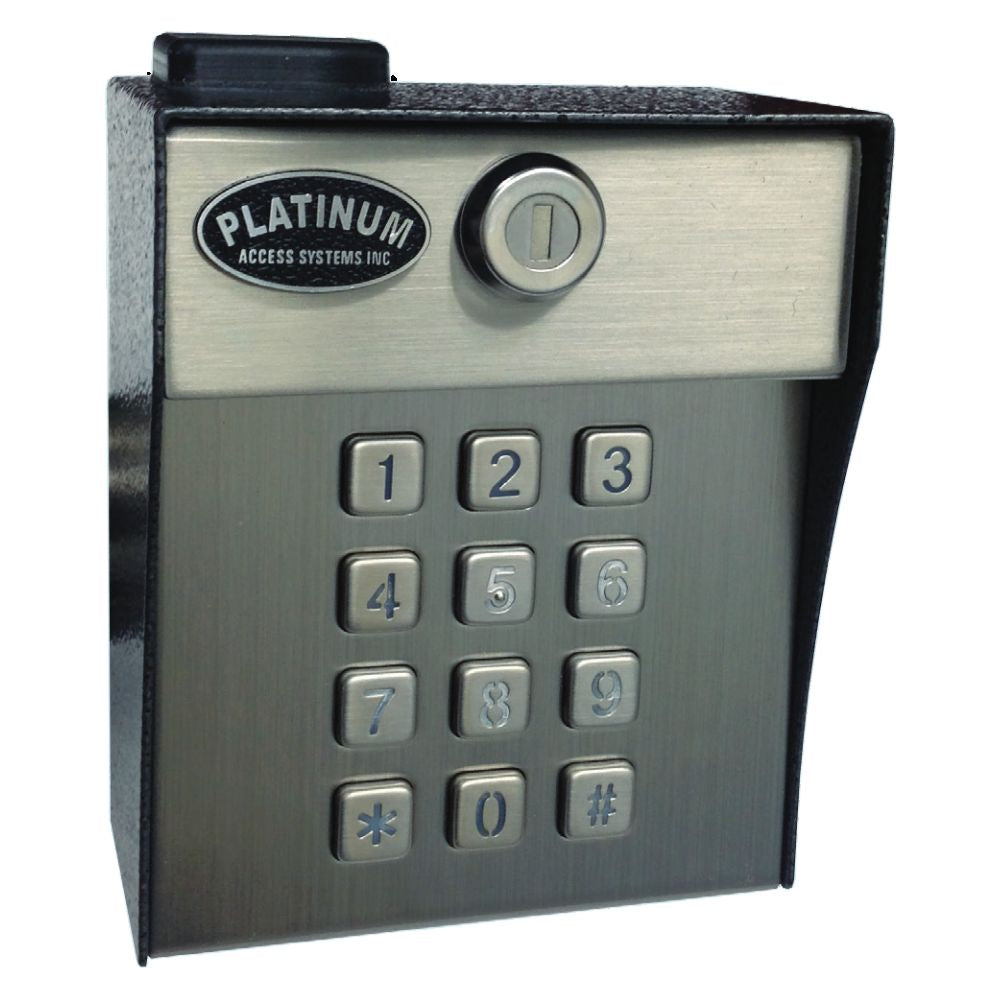

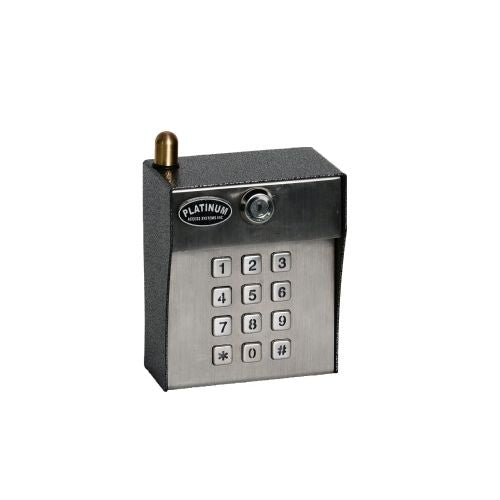

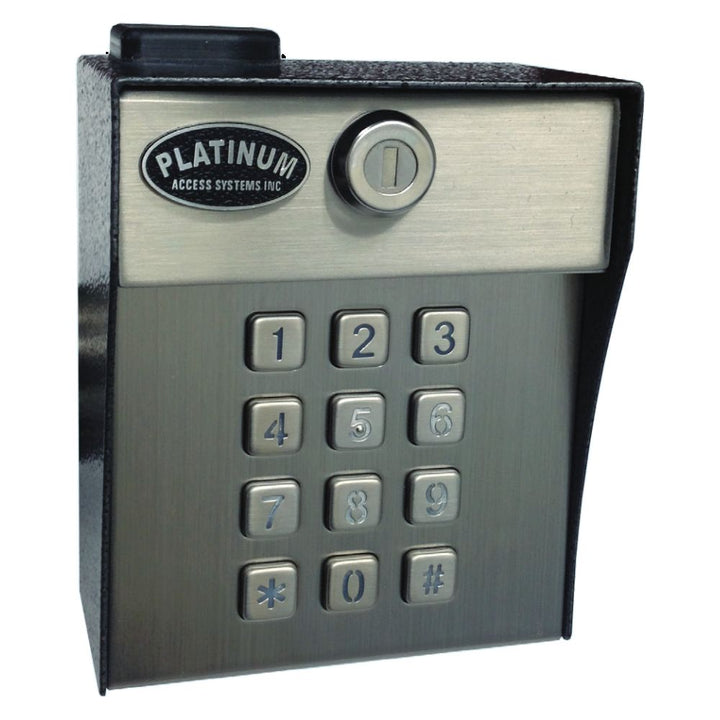

Platinum Access PA1035 RF Wireless Keypad

Works with the Platinum RF RFRX-1000 receiver to provide >100ft of coverage.
The PA1035 is adaptable to wired and wireless installations

The PA1035 keypad is designed to operate with Platinum Access control systems. This keypad is housed in a powder coated metal enclosure with a stainless steel front panel. The keys have bright, easy-to-read graphics. Each key has a tactile “click” feel when pressed. This keypad can be mounted to a pedestal, or directly to a wall. A key-Lock secures the keypad to the mounting plate. An incandescent panel lamp lights the Keypad for nighttime use. Red, green, and yellow indicator LED’s show power, access, and lockout conditions.

The Keypad is powered by a 9-24 VDC power supply. It is also contains a backup battery to keep the keypad working when no AC power is available. Finally, this unit is manufactured with robust static, and lightning protection circuits, safeguard the electronic components.


  • Ultra Low Power Consumption
  • Multiple Power Supply Modes
  • Rechargeable
  • RF Remote Control
  • Hold Open Operation
  • Wireless and Wired Installation
  • Request to Exit Input
  • Adjustable Control Output Strike Duration


  • Memory Capacity: 20,000 codes
  • 5-digit code: 0000-59999
  • 4-digit code: 0000-9999
  • Secure & Lock Case: Housed in a weather resistant metal box for outdoor installation.
  • Dimension: 4.5”X4”x8.25”H
  • Main Power: 9-24 VDC  power supply. Built-in Battery backup.
  • Optional Solar power.
  • Working temperature: -22°F to 140°F
