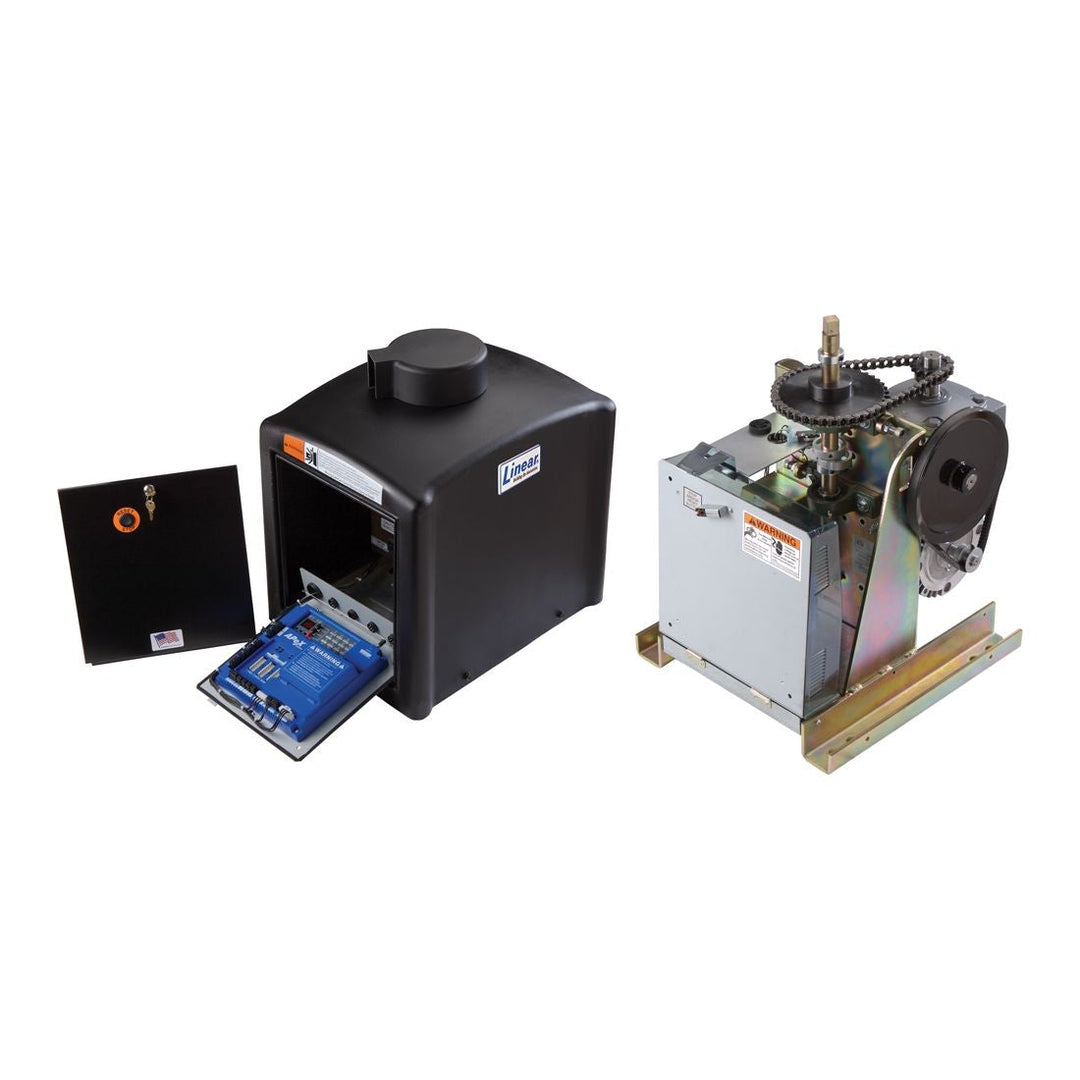

Linear SWC-121 Swing Gate Operator 1 HP

• Max gate size: 19ft
• Max gate weight: 1,000 lbs.

Features

• APeX Controller
• Black polyethylene cover
• Built-in MegaCode receiver
• Gear reducer, size 60 (1/2 HP), size 70 (1 HP)
• Quick disconnect crank assembly
• Exterior reset button
• Heavy-duty, zinc-plated, steel chassis
• Lockable steel access door
• High starting torque – heavy duty PSC motor
• ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Specifications

• Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• LED diagnostic display for ease of setup and troubleshooting
• Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
• Regulated 24 Volt DC power available for access control accessories
• Integrated maximum run and auto close timer (0-9 minutes)
• Built-in networked dual gate capability using 3-wire shielded cable
