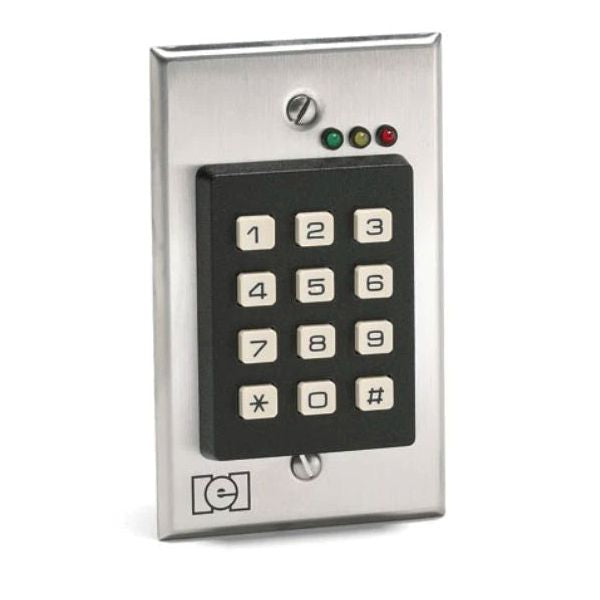

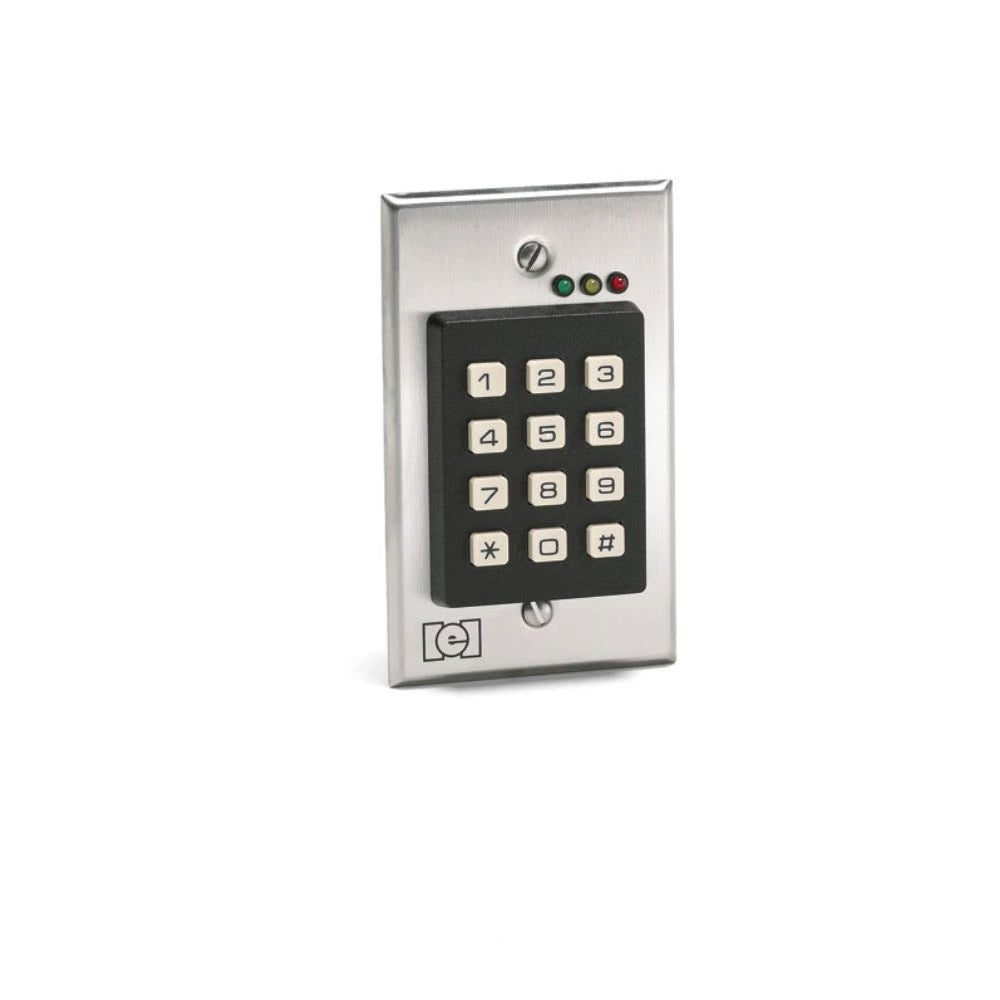

Linear IEI 212i Gate Keypad

Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED’s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.

Features

• 120 users
• Single gang design
• 1 SPDT 2 amp relay and three 50mA negative voltage outputs
• Optional 293 relay board converts 3 voltage outputs to SPDT relays
• Indoor use only


Specifications

• Operating voltage: 12-24 VAC/VDC – auto adjusting
• Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
• Dimensions including the 293 relay module: 2.75″ W x 4.50″ H x 1.68″ D
• Temperature tolerance: -20F to 130F
