Liftmaster LA500XL20W Dual 24VDC with XL Control Panel and Solar Panel (On Sale)

Liftmaster LA500XL20W Dual 24VDC with XL Control Panel and Solar Panel (On Sale)
Liftmaster LA500XL20W Solar Swing Gate Opener - Liftmaster Swing Gate Opener - LA500XL Control Panel
Liftmaster LA500XL20W Solar Swing Gate Opener - Liftmaster Swing Gate Opener - XL 33 amp hour batteries
Liftmaster LA500XL20W Solar Swing Gate Opener - Liftmaster Swing Gate Opener - 20 watt solar panel for LA500

Liftmaster LA500XL20W Dual 24VDC with XL Control Panel and Solar Panel (On Sale)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $3,639.97
/
Shipping calculated at checkout.

Liftmaster LA500XL20W DUAL 24VDC (On Sale)

  • Max gate size: 18ft
  • Max gate weight: 1,600 lbs.

The Liftmaster LA500XL20W Dual 24VDC Swing Gate Opener is a Residential/Light Commercial Linear Actuator with Monitored Photo Eye

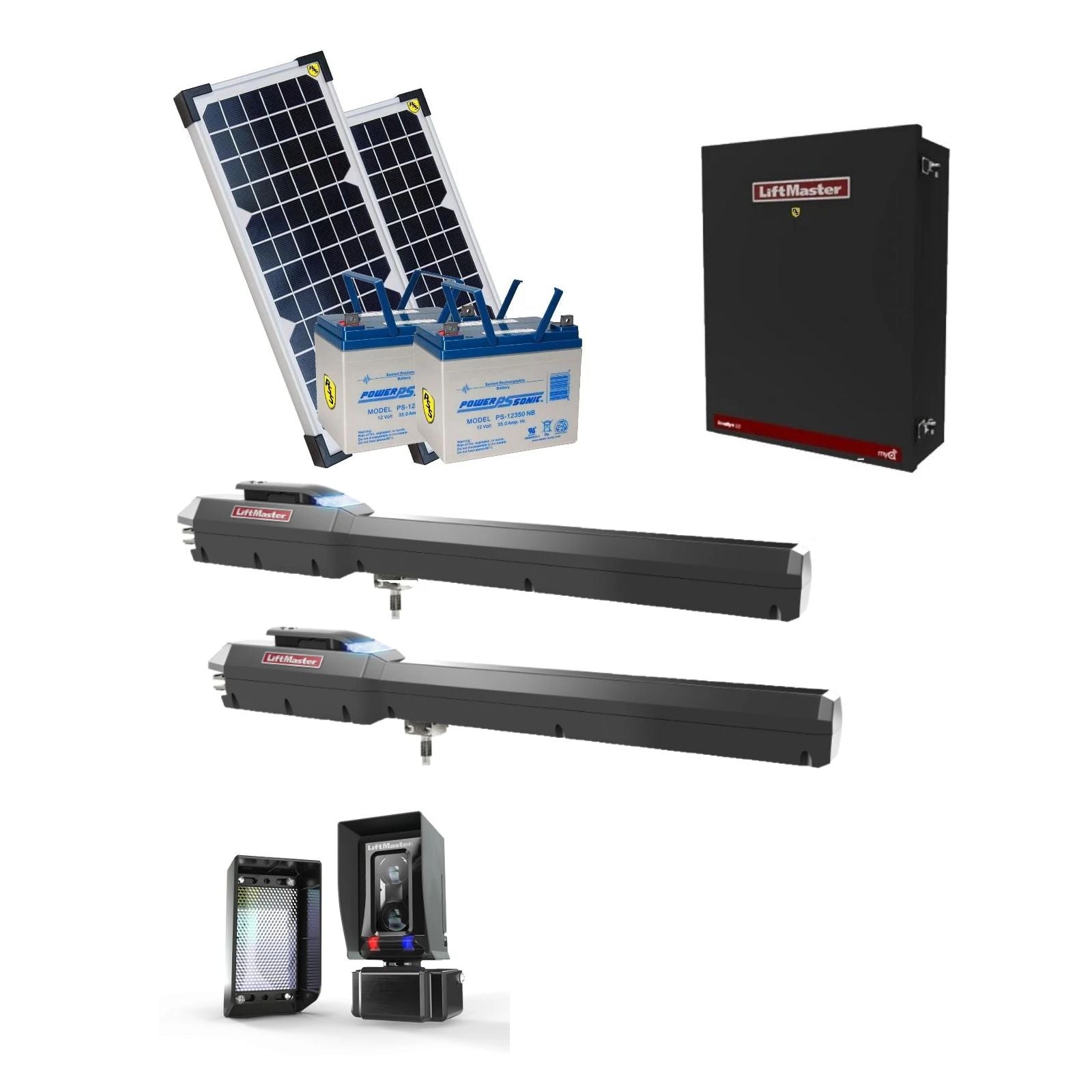

LA500XL20W Package Includes:

2 - LA500DC linear actuator arm with brackets  (LED light discontinued)

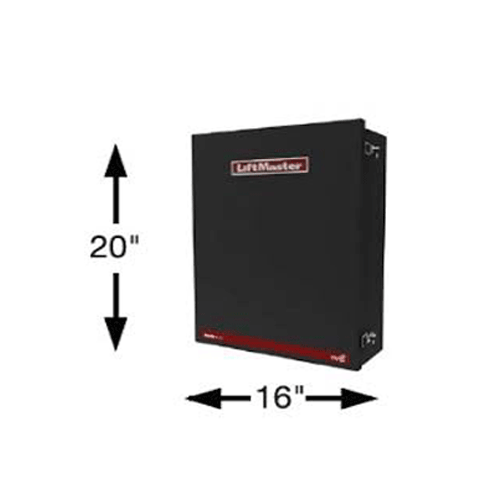

1 - XL control panel with circuit board

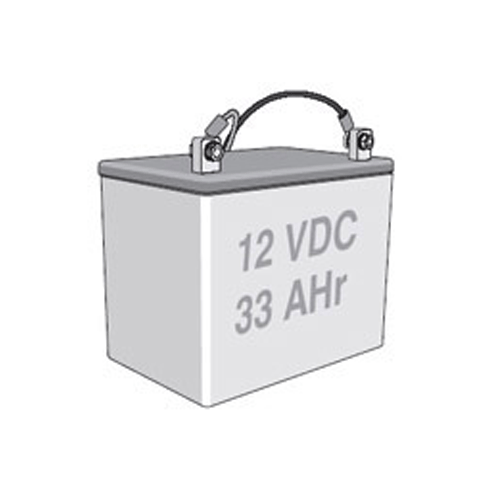

2 - 33 amp hour batteries

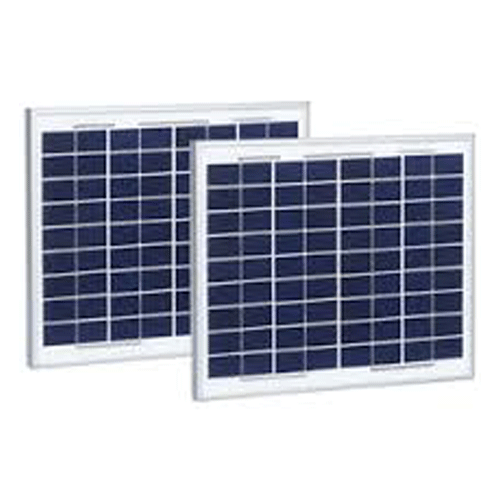

2 - 10 watt 12V solar panel (together will make a 20 Watt 24 Volt)
1 - Set of Liftmaster LMRRU Monitored Saftey Photo Eyes

Liftmaster LA500XL20W Dual Residential/Commercial Swing Gate Opener

The Liftmaster LA500XL20W Dual is designed to be used in a residential location, but it is not uncommon to be used in small commercial locations.  The LA500XL20W is a solar powered swing gate opener with solar panel, XL Control Box and 33 amp hour batteries. The LA500XL20W includes settings such as Soft Start/Stop and Mid-Travel Reversal, Commercial-Duty Cast Aluminum Housing with Heavy-Duty DC Motor, Inherent Reversing Sensor, Fire Department Compliance, Keyed Manual Disconnect, Surge Suppression, Quick Close/Anti-Tailgate, and  Molecularly Bonded Coating.  The LA500 Swing Gate Opener is one of our best selling products, and are one of the most reliable operators on the market.

Features:

  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • LED DIAGNOSTIC DISPLAY
  • WIRELESS DUAL-GATE COMMUNICATION
  • BI-PART DELAY
  • PROGRAMMABLE AUXILIARY RELAYS
  • ANTI-TAILGATE
  • PRE-MOTION WARNING ALARM
  • SYNCHRONIZED CLOSE
  • HOMELINK® COMPATIBLE
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER

Specifications:

  • POWER: Full-time AC-run operation 120V/230V Single Phase
  • ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
  • MONITORED SAFETY INPUTS: 3 Main Board, 3 Expansion Board
  • TEMPERATURE SPECIFICATIONS: -4°F (-20°C) to 140°F (60°C)
  • UL USAGE CLASSIFICATION: I, II, III, and IV
  • GATE TRAVEL SPEED: 90-degree opening in 15-17 seconds.

Construction:

  • P3 MOTOR: 24VDC continuous-duty motor
  • OPERATOR DUTY RATING: Continuous duty, 300 cycles per day
  • CHASSIS: Commercial-duty aluminum die-cast housing
  • WORM GEAR REDUCTION: Precision-machined all-metal gear in contained lubrication housing
  • OPERATOR WEIGHT: Actuator arm 35 lbs. Standard control box 13 lbs. • Includes (2) 7Ah batteries
  • RECOMMENDED CAPACITIES: Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs
