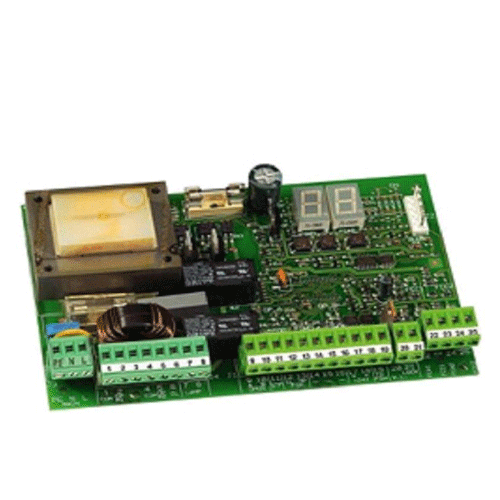

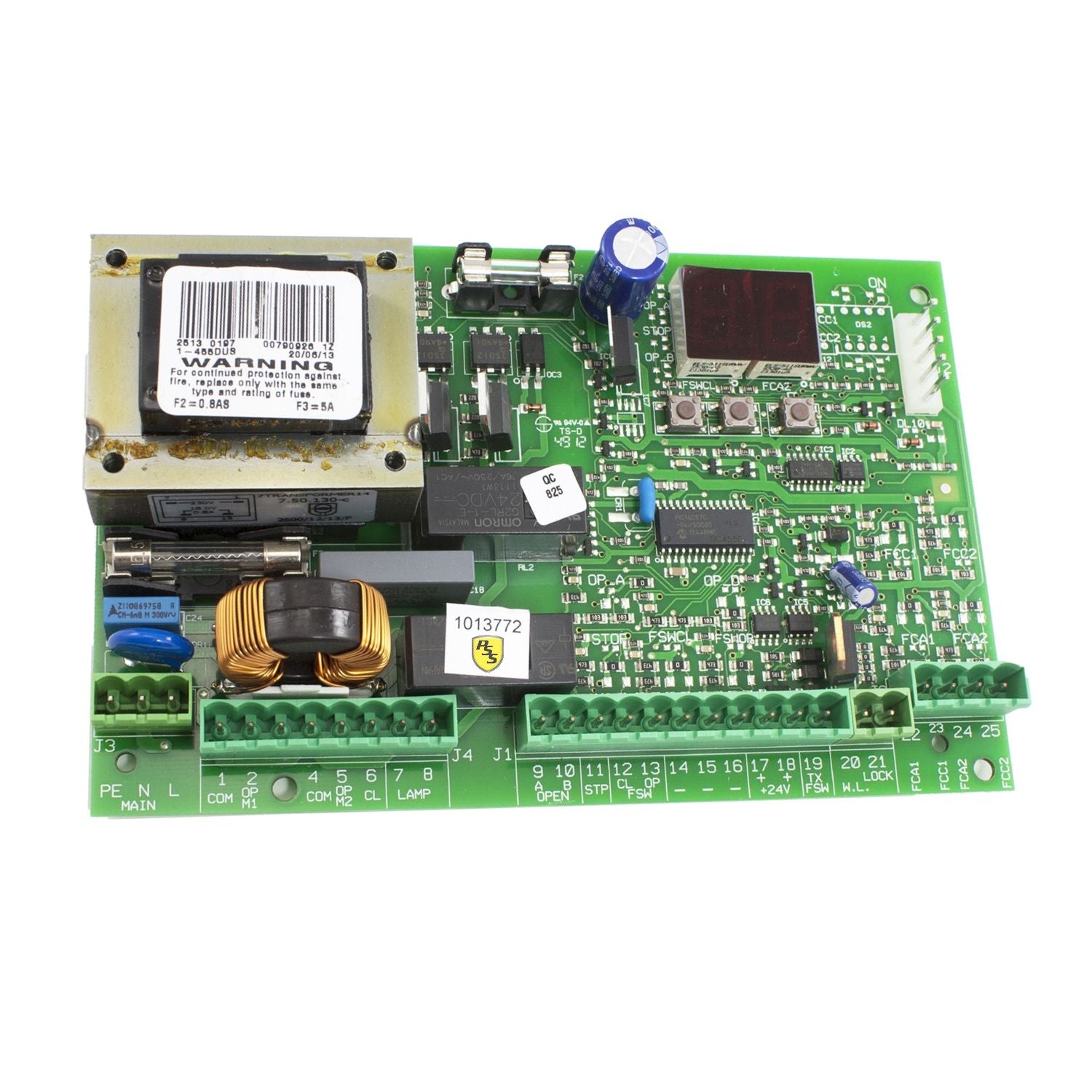

FAAC 455D Circuit Board 230V

The FAAC 455D control panel can operate a single leaf or master/slave gate system. Control Panel Replacement only, does not include enclosure.

Features

• Operates a single leaf or a bi-parting gate
• Provides opening and closing "slow down, soft stop" convenience
• Absorbed power: 10W
• Motor max load: 800W
• Accessories max load: .5 amp
• Electric lock max load: 15 Va
• Opening/closing time: 0 to 120 seconds (programmable)
• Pause time: 0 to 4 minutes (programmable)
• Closing leaf delay: 0 to 4 minutes (programmable)
• Opening leaf display: 2 seconds (can be disabled)
• Torque: adjustable from 0 to 50 levels
• On board programming via push button
• Easy interconnection of actuating and reversing devices
• Open/Hold open function
