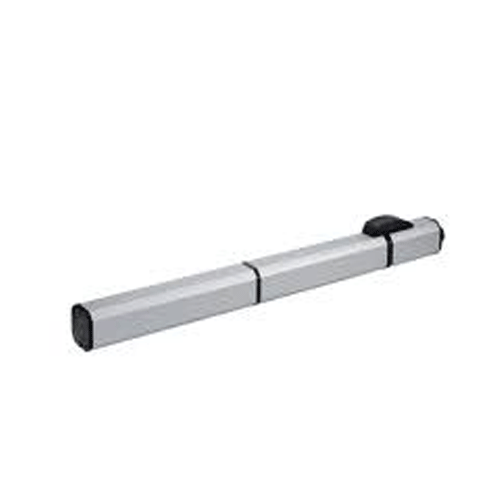

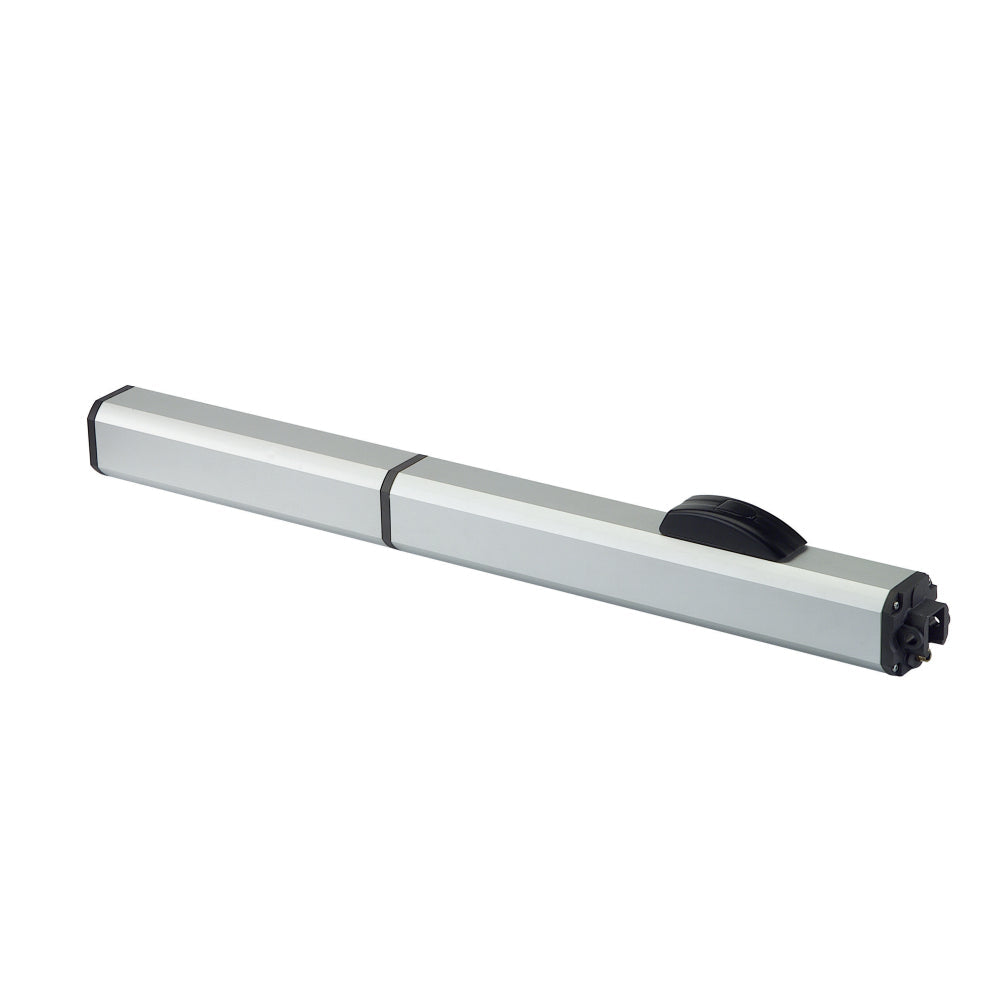

FAAC 400 CBAC "EG" Arm Only

The FAAC 400 CBAC EG hydraulic swing gate operator is used to make the single kit into a master/secondary bi-parting system or use as a replacement operator for an existing system. The FAAC 400 CBAC EG is for gates up to 18 feet and 1,500 lbs. 50 cycles per hour.

Please call 800-676-4909 for assistance.

SPECIFICATIONS

• Max Gate Length: 18
• Maximum Force Output: 1045
• Duty: Continuous
• Cycles Per Hour: 50
• Power Supply Volts: 230V
• Battery (AC Power Failure): No
• Anti-Crushing Protection: Hydraulic Bypass +Electronic
• End Travel Declaration: Timed
• Rod-Effective Stroke (inches): 15
• Max Opening Angle: 110
• Built in Mechanical Stops: Optional (Model 84)
• Life Expectations (cycles): 1,000,000 (10 years @ 280 cycles per day)
• Transmission: Oil Bath
