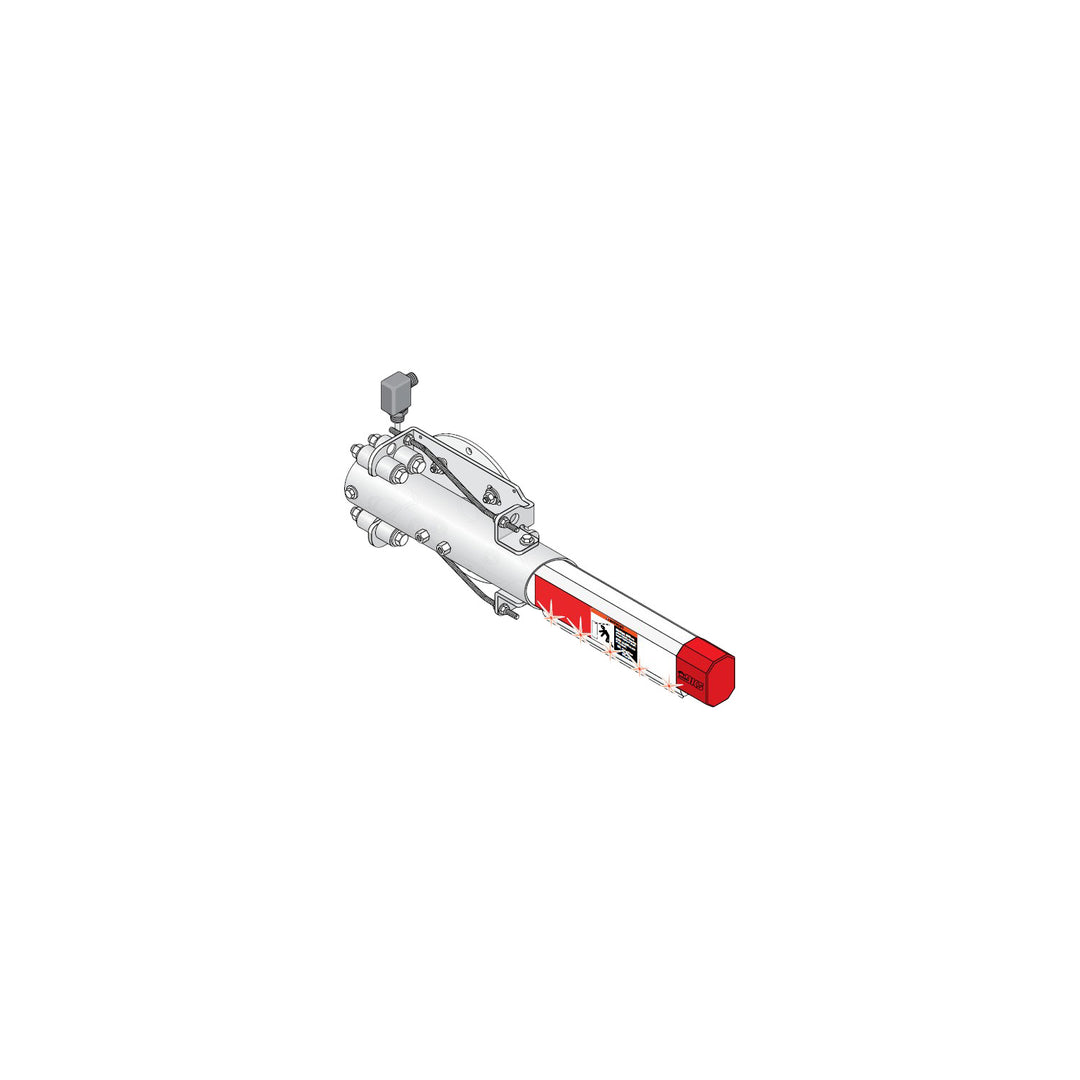

DoorKing 1601 Octagonal Aluminum Breakaway Arm Kit with LED Reversing Edge

DoorKing Octagonal Aluminum Breakaway Arm Kit with LED Reversing Edge

This premium safety and visibility kit combines the most advanced features available for your DoorKing 1601 Parking Gate Operator. Featuring octagonal aluminum arms with breakaway functionality, LED lighting, and reversing edge technology, this comprehensive solution provides maximum safety, visibility, and damage prevention. The integrated LED lighting system clearly signals gate status with red/green indicators, while dual safety mechanisms protect against both minor contacts and more significant impacts. Choose between one-piece or two-piece arm configurations to best suit your shipping and installation requirements.

Key Features

• Ultimate protection package with octagonal breakaway arm, hardware, and LED reversing edge
• Premium octagonal aluminum construction for enhanced visibility and durability
• Integrated LED lighting system with automatic red/green color changes based on gate position
• Triple safety approach: LED visibility + reversing edge technology + breakaway functionality
• Red LEDs illuminate when barrier is down/closed; green when up/open
• Reversing edge automatically reverses arm upon contact with obstacles
• Breakaway capability allows arm to swing away during more significant impacts
• Easy reset - arm simply snaps back into place after breakaway
• 14-foot arm length suitable for standard traffic lanes
• All necessary mounting hardware included for straightforward installation

Available Options

• 14 Ft One-Piece Octagonal Breakaway Arm Kit with LED Reversing Edge
  • SKU: 1601-555-BRK-LEDKT
  • Includes: One-Piece Octagonal Aluminum Arm (1601-555)
  • Includes: Breakaway Hardware Kit (8080-295, formerly 1601-295)
  • Includes: LED Reversing Edge Sensor with Red/Green Lights (8080-096)
  • Single-piece construction for streamlined appearance
  • Same durability as two-piece when installed
  • IMPORTANT SHIPPING NOTICE: Due to the length exceeding 8 feet, this option incurs significantly higher shipping costs

• 14 Ft Two-Piece Octagonal Breakaway Arm Kit with LED Reversing Edge
  • SKU: 1601-567-BRK-LEDKT
  • Includes: Two-Piece Octagonal Aluminum Arm (1601-567)
  • Includes: Breakaway Hardware Kit (8080-295, formerly 1601-295)
  • Includes: LED Reversing Edge Sensor with Red/Green Lights (8080-096)
  • Sectional design for easier transportation and handling
  • Simple assembly at installation site
  • RECOMMENDED OPTION: Significantly reduced shipping costs compared to one-piece model

Specifications

Arm Specifications

• Material: Octagonal Aluminum
• Length: 14 Ft (4.3m)
• Available in One-piece (1601-555) or Two-piece (1601-567) construction
• Compatible with plastic arm cover (included with operator)
• Distinctive octagonal profile for enhanced visibility

Breakaway Hardware Features

• Allows arm to swing out of the way upon significant impact
• Simple reset mechanism - arm snaps easily back into place
• Can be configured for breakaway from either side of the cabinet
• All required fasteners and securing hardware included
• Designed to prevent costly arm replacements

LED Reversing Edge Features

• Pressure-sensitive edge technology detects contact with obstacles
• Integrated LED lighting system with automatic color changes
• Red LEDs illuminate when barrier is in down/closed position
• Green LEDs illuminate when barrier is in up/open position
• Triggers immediate arm reversal upon activation
• Enhances visibility of barrier arm status, especially at night
• Weather-resistant construction for reliable outdoor operation
• Pre-wired for integration with gate operator controls

Compatibility

• Designed for DoorKing 1601 Parking Gate Operators
• Compatible with models 1601-380, 1601-381, 1601-480, and 1601-481
• For open areas with open vertical clearance
• Can be mounted on either left or right side of roadway

Installation Requirements

• All necessary hardware included in this complete kit
• Professional installation recommended
• Basic electrical and mechanical skills required
• Must be properly connected to operator control board

Available Accessories

• High Wind Bracket Kit (P/N 1601-297) - recommended for areas with strong winds

Note: This premium safety and visibility kit offers the most comprehensive protection and signaling available for DoorKing 1601 barrier systems. The combination of LED lighting, reversing edge technology, and breakaway functionality provides maximum protection against damage while enhancing operational visibility. The LED lighting significantly improves the visibility of the barrier arm, particularly at night, providing clear visual signals to approaching vehicles. For complete barrier gate safety, DoorKing requires the use of appropriate primary safety devices such as in-ground loops or photocells. Always follow manufacturer installation guidelines and safety recommendations to ensure proper system operation and compliance with safety standards.
