DoorKing 9150 1/2 HP Vehicular Slide Gate Operator
The DoorKing 9150 1/2 HP Slide Gate Operator delivers worry-free, self-adjusting gate automation with outstanding safety features in a reliable design. This versatile operator can be used in residential, commercial, or industrial applications, featuring an innovative fail-safe design that significantly reduces the chance of injury or entrapment. Available with either a durable steel or lightweight polypropylene cover, this operator can be configured for front, center, or rear drive applications and can be pad or post mounted for maximum installation flexibility.
Innovative Safety Features
- Electronic magnetic limits eliminate mechanical switches that can wear out
- Automatic self-setting limits require no adjustments
- Built-in mechanical and electronic reverse system
- Automatically assumes fail-safe mode when an entrapment condition exists
- Compliant with UL 325 and 991 standards (ETL listed)
Versatile Installation Options
- Configurable for front, center, or rear drive applications
- Pad or post mount capability

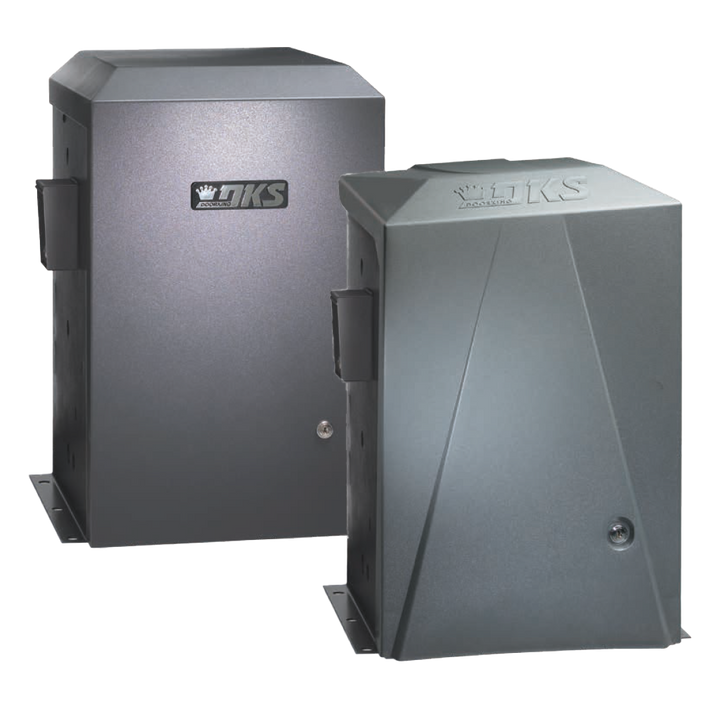

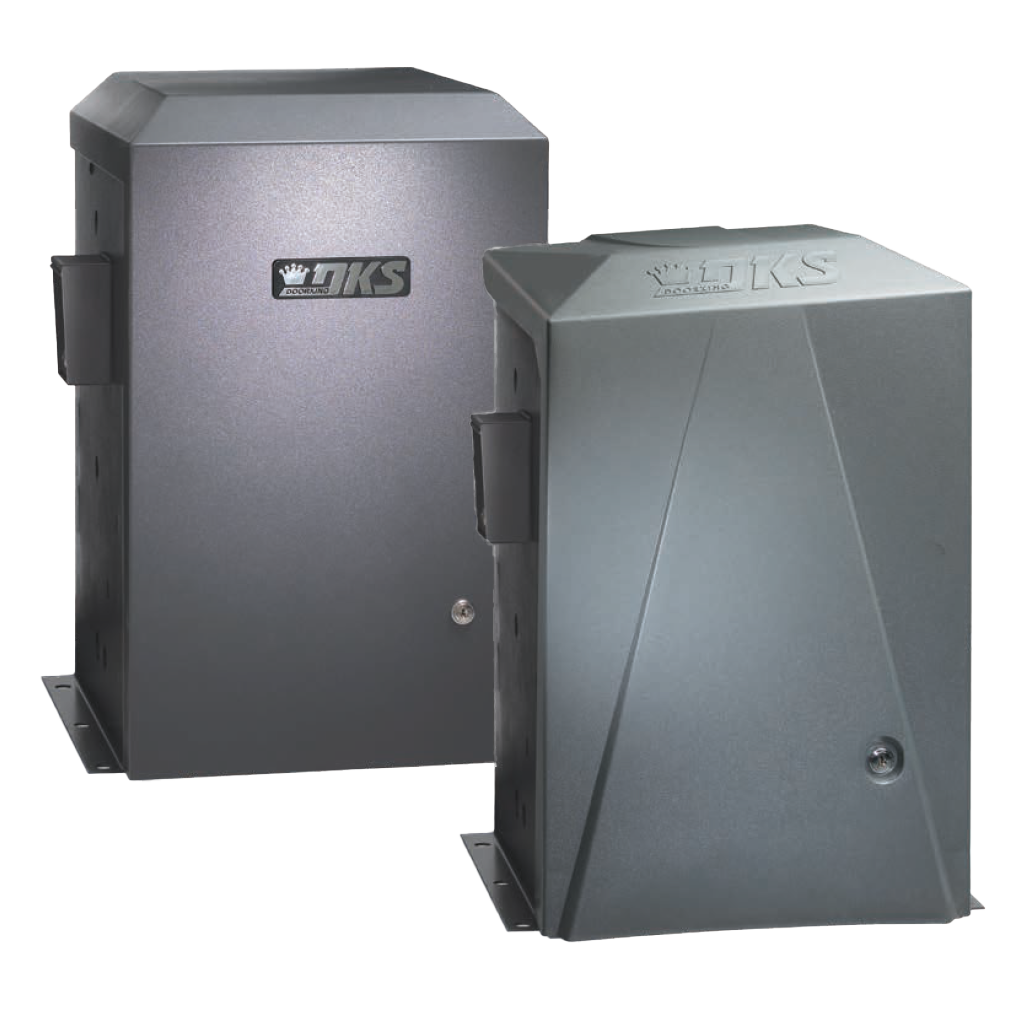

- Choice of durable steel or lightweight polypropylene cover
- Units with polypropylene cover include MicroPlus RF Kit (1 TX + 1 REC)
- Multiple voltage options for installation flexibility
Advanced Control Features
- Microprocessor control board with programming switches
- Adjustable auto-close timer (1-23 seconds)
- Partial-open feature for pedestrian or limited access
- Anti-tailgating functionality for enhanced security
- Gate Tracker™ reporting output for access control integration
- Two convenience outlets for accessory transformers
Available Models
-

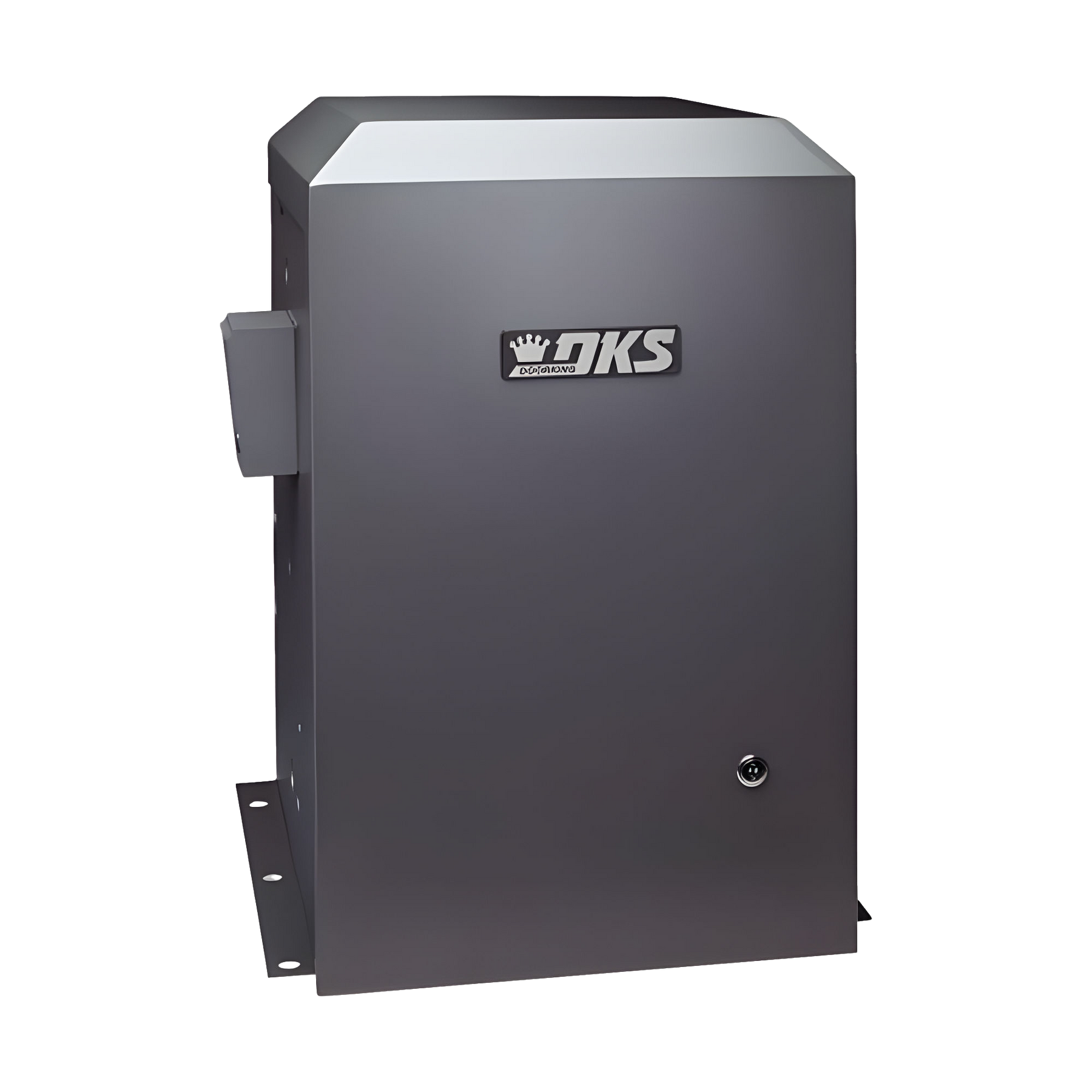

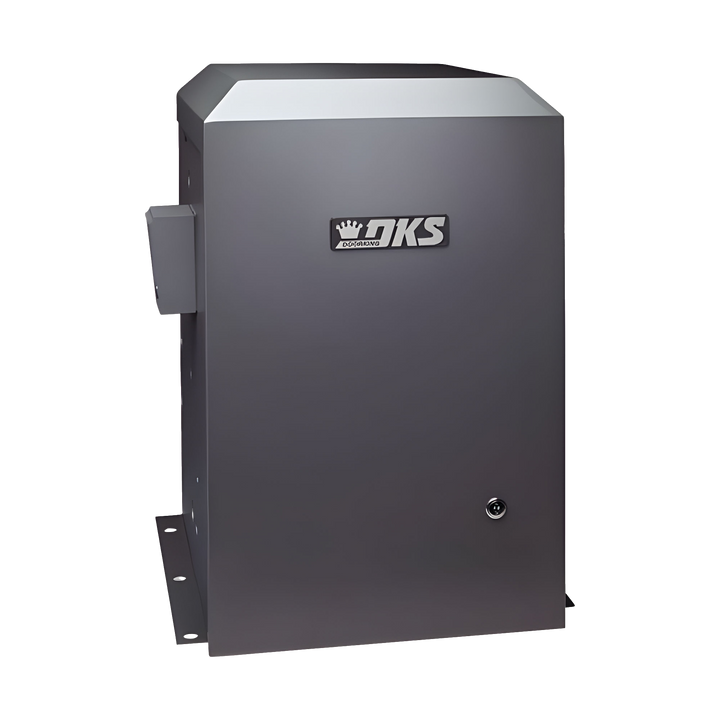

1/2 HP with Steel Cover:
- SKU: 9150-384
- Durable galvanized steel housing
- Enhanced weather and impact resistance
- Traditional industrial appearance
-

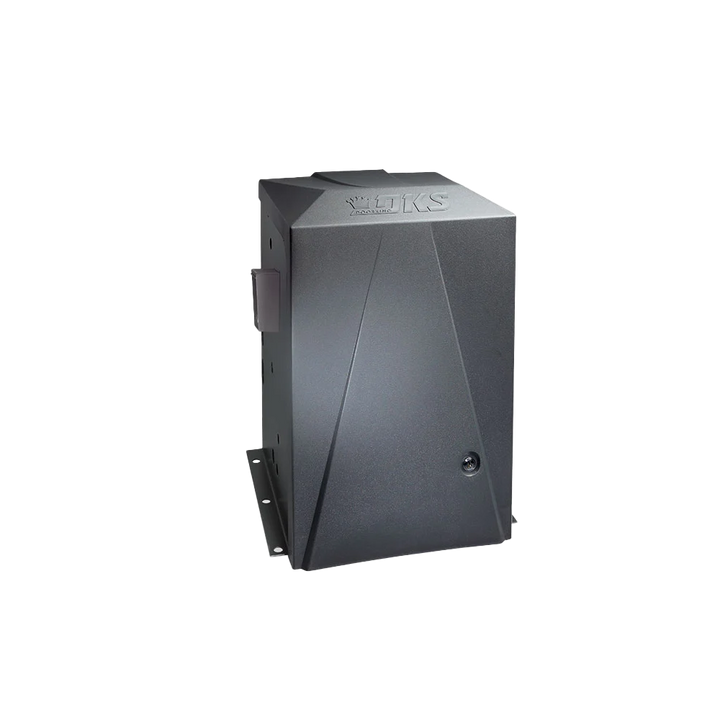

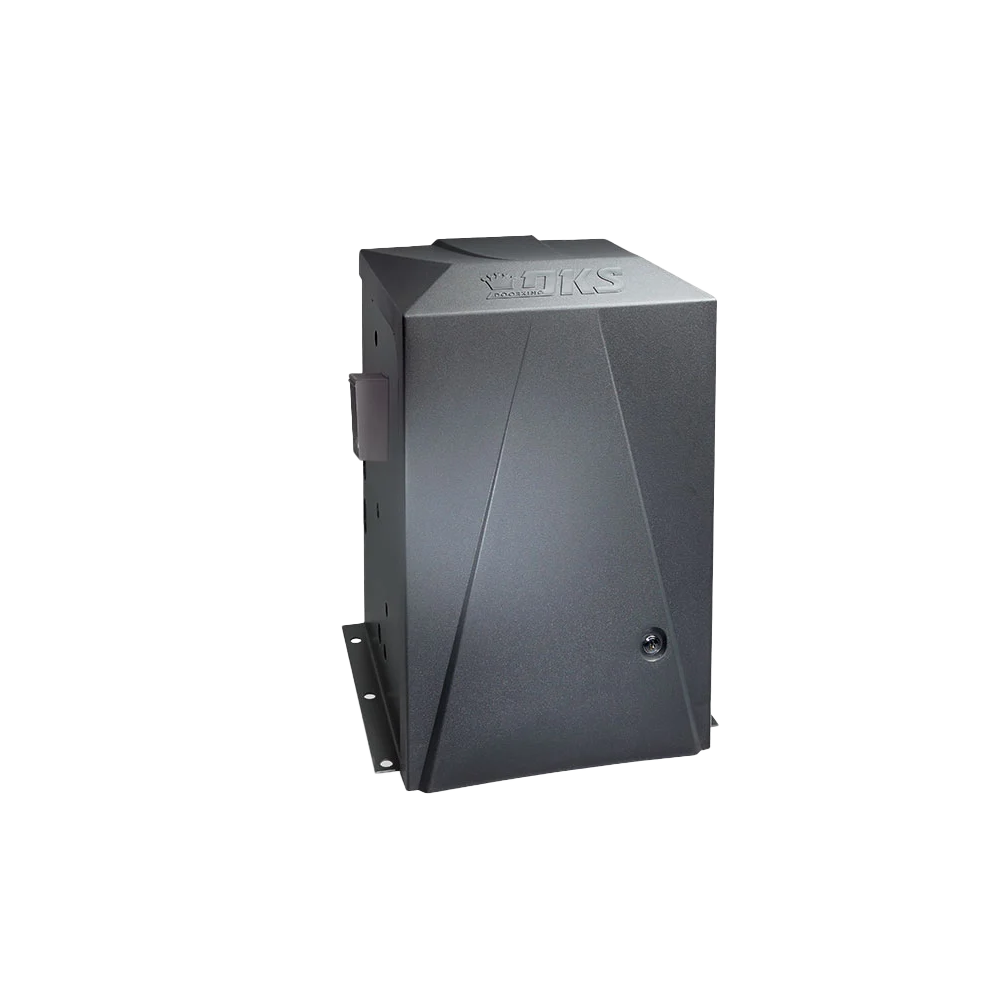

1/2 HP with Polypropylene Cover:
- SKU: 9150-386
- Lightweight, corrosion-free housing
- Includes MicroPlus RF Kit (1 TX + 1 REC)
- Contemporary appearance
Specifications
Gate Capacity
- Maximum Gate Length: 30 feet (9.1 m)
- Maximum Gate Weight: 1,000 pounds (454 kg)*
- *800 pounds with DC Convenience Open option
- Operating Speed: Approximately 10 inches per second (254 mm/sec)
Electrical
- Motor: 1/2 HP continuous-duty
- Input Power Options:
- 115 VAC, 60 Hz, 5.4A (standard)
- 208 VAC, 60 Hz, 2.8A (with step-down transformer)
- 230 VAC, 60 Hz, 2.7A (with step-down transformer)
- 460 VAC, 60 Hz, 1.4A (with step-down transformer)
- Step-down transformers used to achieve 115 VAC operating voltage
Construction
- Frame: G90 galvanized steel to prevent rusting
- Cover Options:

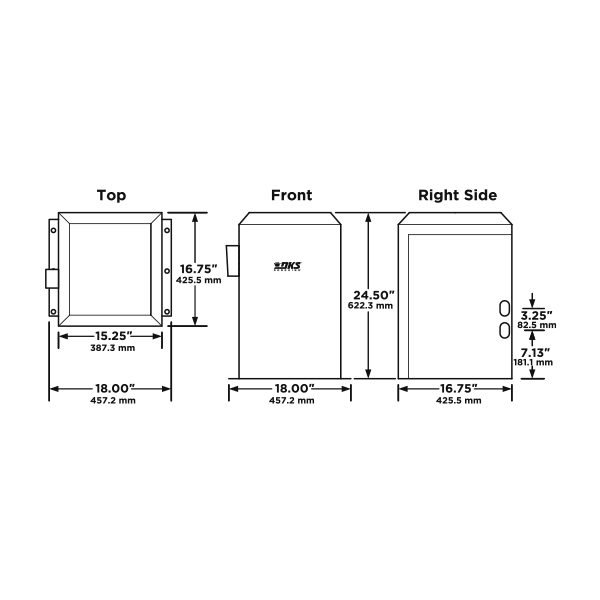

- Steel Cover (9150-384): 15.25"W x 24.50"H x 16.75"D

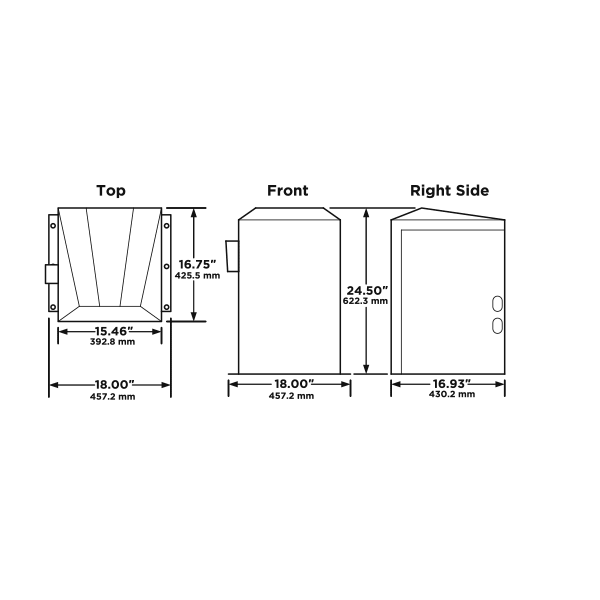

- Polypropylene Cover (9150-386): 15.46"W x 24.50"H x 16.93"D
- Primary Reduction: Single cog belt
- Chain: 20 ft (6 m) of #40 roller chain included with brackets and hardware
- Shipping Weight: 125-185 lb (68-84 kg)
Control Features
- Automatic limit adjustment
- Auto-close timer (1-23 seconds)
- Selectable stop/reverse loop function
- Built-in On/Off switch
- Built-in alarm reset switch
- Programming switches for operational settings
- Partial-open and anti-tailgating features
- Two 115 VAC convenience outlets
- Ports for plug-in loop detectors (DKS detectors only)
Safety & Compliance
- Requires monitored Type B1 and/or Type B2 entrapment protection devices
- Operating Temperature: 10°F to 140°F (-12°C to 62°C)
- Thermostatically controlled heater kit available for colder environments
- Conforms to ANSI/CAN/UL 325:2017 Ed. 7
- Certified to CSA C22.2 #247
- Suitable for Class I, II, III, and IV applications
Options
- Heater kit for cold weather environments
- Base plate for post mounting
- Fail-secure release kit (fail-safe is standard)
- DC Convenience Open feature
Note: Five-year limited warranty included. Compatible with required entrapment protection devices sold separately. Polypropylene cover model (9150-386) includes MicroPlus RF Kit.
