DoorKing 9050 Residential Slide Gate Operator
The DoorKing 9050 Slide Gate Operator delivers reliable performance and outstanding safety features in a compact design ideal for residential applications. With self-adjusting electronic magnetic limits and built-in safety systems, this operator provides worry-free operation while protecting against potential hazards. Available with either a durable steel (9050-380) or lightweight polypropylene (9050-385) cover, this versatile operator can be configured for front, center, or rear drive applications to suit your specific installation needs.
Superior Safety Features
- Electronic magnetic limits eliminate mechanical switches that can wear out
- Automatic self-setting limits require no adjustments
- Built-in mechanical and electronic reverse system
- Automatically assumes fail-safe mode when entrapment is detected
- Compliant with UL 325 and 991 standards (ETL listed)
Reliable Performance
- 1/2 HP continuous-duty AC motor for dependable operation
- Smooth operation at approximately 10 inches per second
- G90 galvanized steel frame prevents rusting
- Fail-safe release allows manual operation during power outages
- Built-in power and reset switches for easy operation
Installation Flexibility
- Configurable for front, center, or rear drive applications
- Pad or post mount capability
- Choice of durable steel (9050-380) or lightweight polypropylene (9050-385) cover
- Two 115 VAC convenience outlets for accessory transformers
- Includes 20 feet of #40 roller chain with brackets and hardware
Available Models
-
Steel Cover Model:
- SKU: 9050-380
- Durable galvanized steel housing
- Enhanced weather and impact resistance
- Traditional industrial appearance

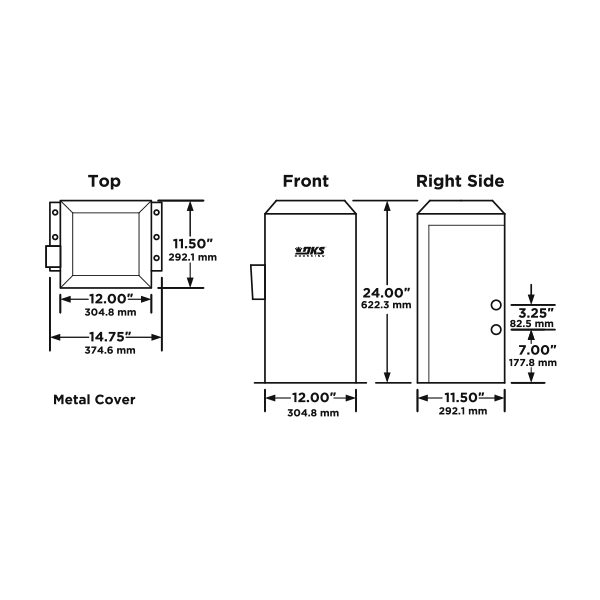

- Dimensions: 12"W x 24"H x 11.5"D
-

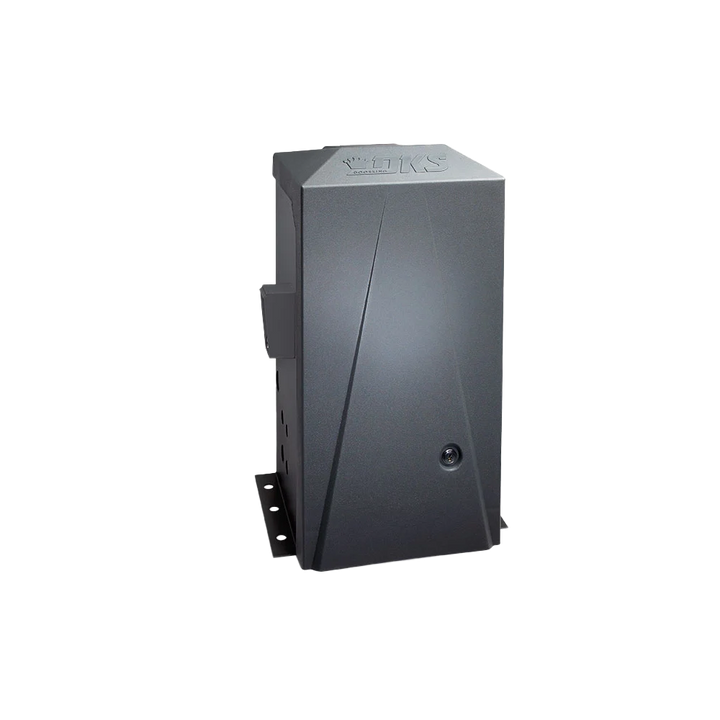

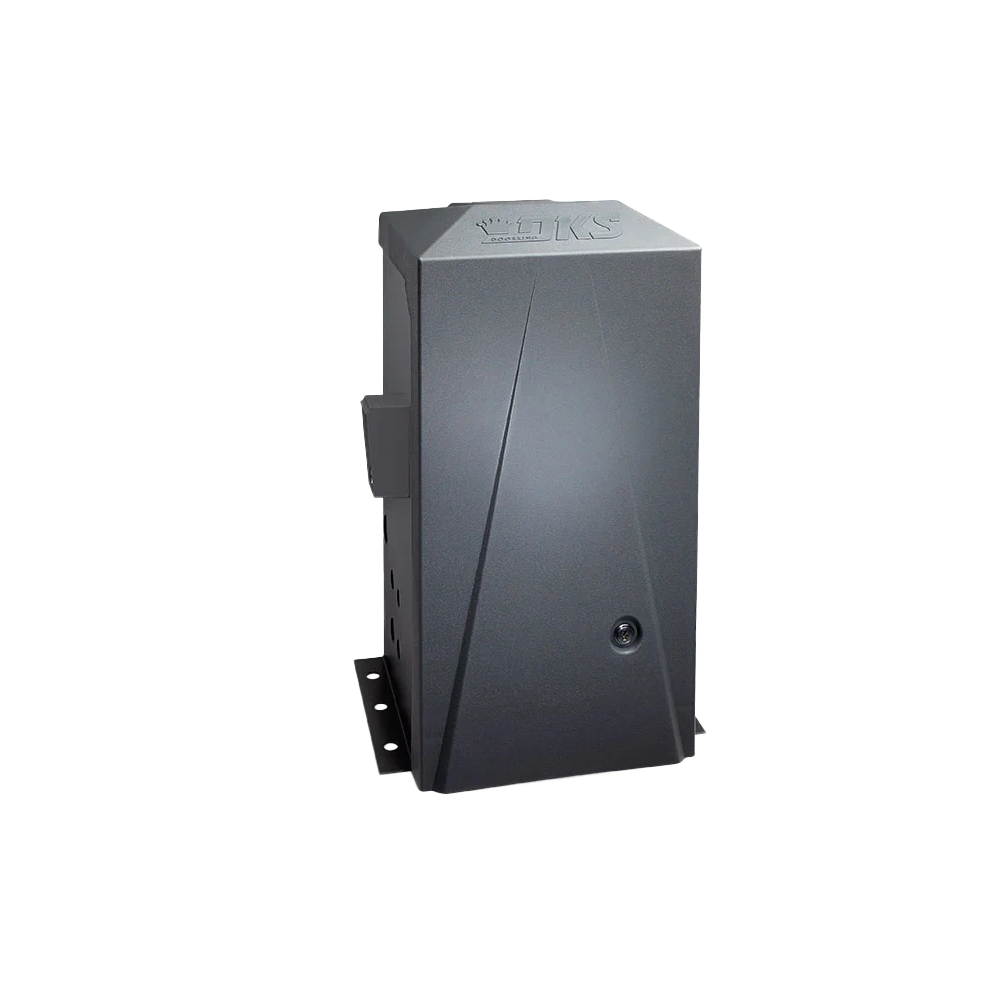

Polypropylene Cover Model:
- SKU: 9050-385
- Lightweight, corrosion-free housing
- Contemporary appearance

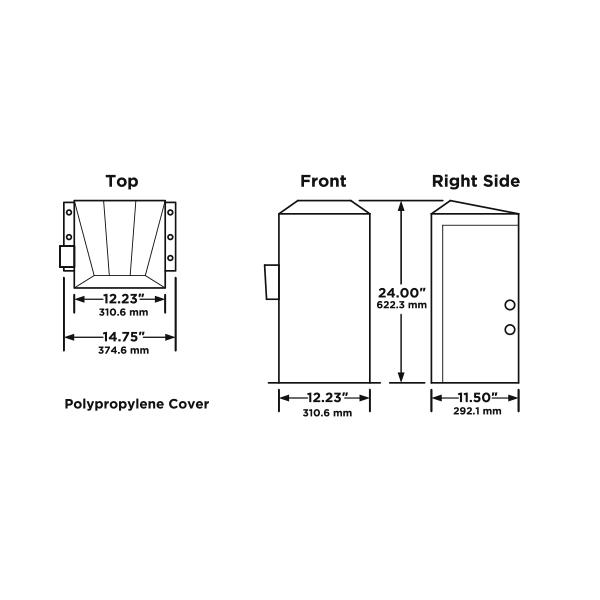

- Dimensions: 12.23"W x 24"H x 11.5"D
Specifications
Gate Capacity
- Maximum Gate Length: 16 feet (4.9 m)
- Maximum Gate Weight: 500 pounds (227 kg)
- Operating Speed: Approximately 10 inches per second (254 mm/sec)
Electrical
- Motor: 1/2 HP continuous-duty AC motor
- Input Power: 115 VAC, 60 Hz, 5.4A
- Auto-close timer: 1-23 seconds (adjustable)
- Two 115 VAC convenience outlets for accessory transformers
Construction
- Frame: G90 galvanized steel to prevent rusting
- Primary Reduction: Single cog belt
- Chain: 20 ft of #40 roller chain included with brackets and hardware
- Shipping Weight: Approximately 70 lb (32kg)
Control Features
- Microprocessor control board with programming switches
- Auto-close timer (1-23 seconds)
- Selectable stop/reverse loop function
- Built-in On/Off switch and alarm reset switch
- Ports for plug-in loop detectors (DKS detectors only)
Safety & Compliance
- Requires monitored Type B1 and/or Type B2 entrapment protection devices
- Operating Temperature: 10°F to 140°F (-12°C to 62°C)
- Thermostatically controlled heater kit available for colder environments
- Conforms to ANSI/CAN/UL 325:2017 Ed. 7
- Certified to CSA C22.2 #247
- Suitable for Class I (residential) applications
Options
- Heater kit for cold weather environments
- Base plate for post mounting
- Fail-secure release kit (fail-safe is standard)
Note: Five-year limited warranty included. Compatible with required entrapment protection devices sold separately.
