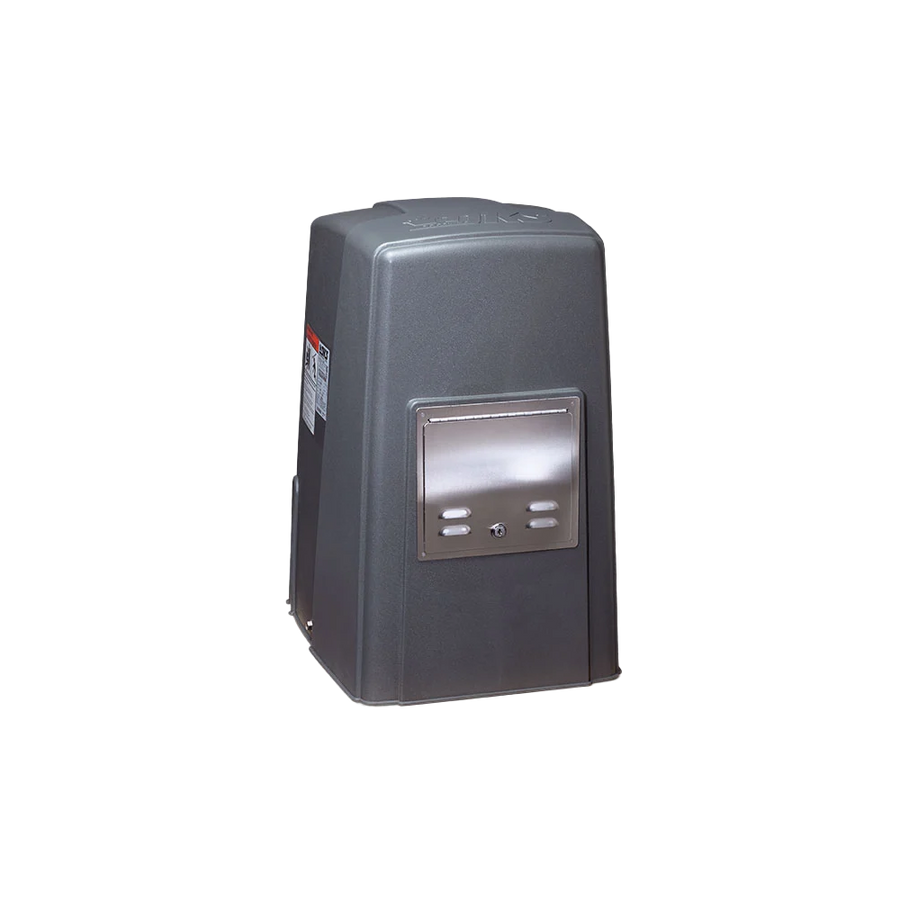

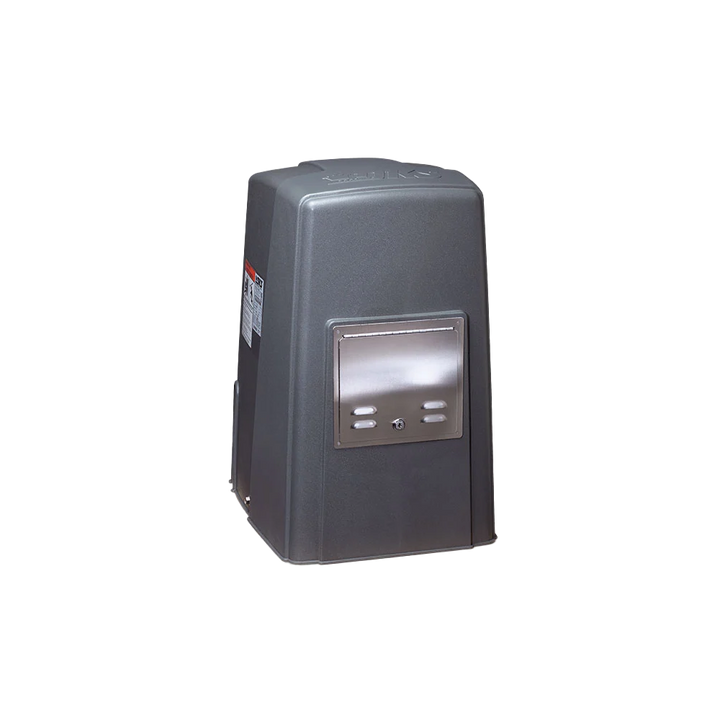

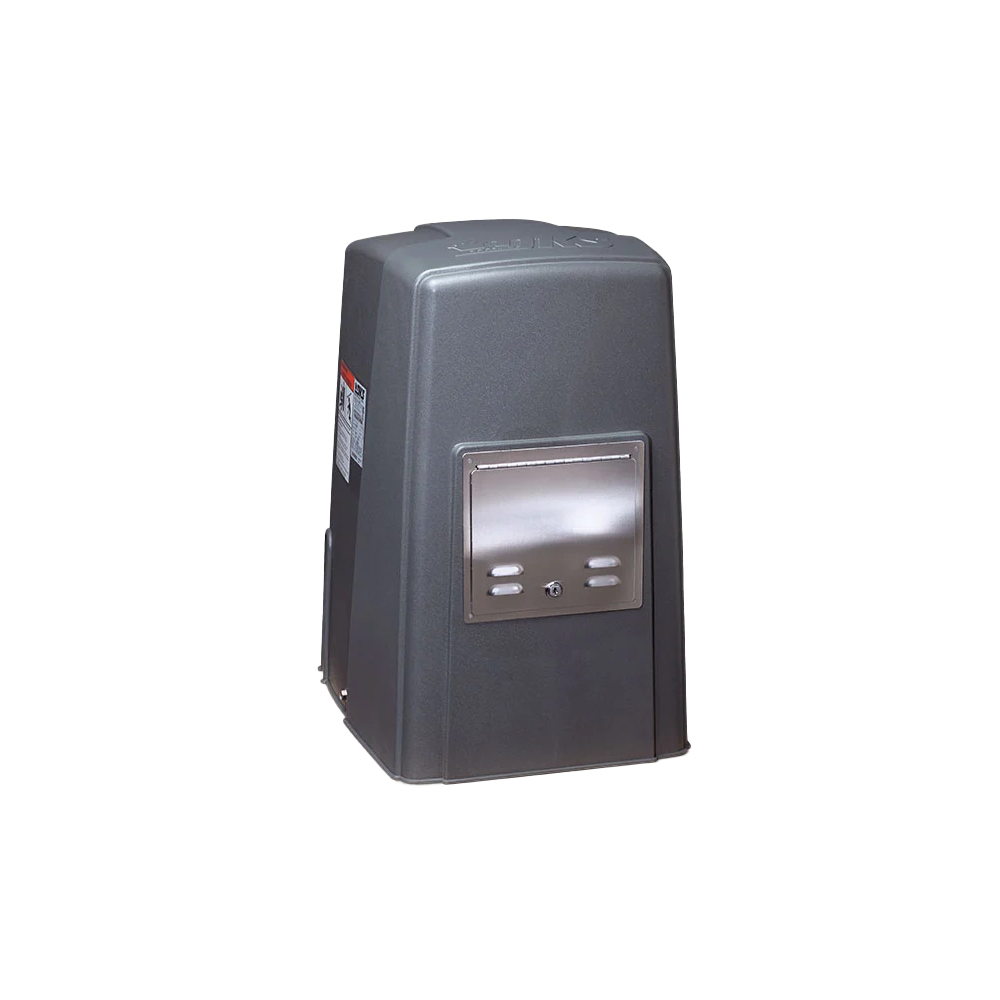

DoorKing 9000 Primary Slide Gate Operator
The DoorKing 9000 Series Primary Slide Gate Operator delivers powerful, quiet, and reliable operation for demanding residential, commercial, and industrial applications. Available in both 1/2 HP (9000-380) and 1 HP (9000-385) configurations, this versatile operator features a steel frame and belt-driven gear-box reduction system that provides exceptional performance while minimizing noise. Designed with safety and convenience in mind, the 9000 Series is the perfect solution for high-traffic slide gate installations requiring dependable operation.
Powerful & Quiet Performance
- Choice of 1/2 HP (9000-380) or 1 HP (9000-385) continuous-duty motors
- Handles gates up to 35 feet in length and up to 1,500 pounds (1 HP model)
- Operating speed of approximately 1 foot per second
- Belt-driven 30:1 gear reduction system in continuous oil bath
- Heavy-duty steel frame for strength and noise reduction
Advanced Control Features
- Direct-driven limit nuts for precise gate control
- Auto-close timer (1-30 seconds)
- Anti-tailgating technology for enhanced security
- Selectable loop/reverse input function
- Built-in power and alarm reset switches
- Gate Tracker™ reporting output for access control integration
Convenient Installation & Operation
- Easy-to-use manual T-handle release
- Automatic reconnection when handle is released
- Two 115 VAC convenience outlets for accessory transformers
- Simple bi-parting gate interface for dual gate applications
- Includes 20 feet of #40 roller chain with mounting hardware
Available Primary Models
-
1/2 HP Primary Model:
- SKU: 9000-380
- Maximum Gate Length: 35 feet (10.7 m)
- Maximum Gate Weight: 1,000 pounds (454 kg)
- Input: 115 VAC, 60 Hz, 5.4A (standard)
- Alternative Power Options: 208 VAC, 230 VAC, 460 VAC with step-down transformer
-
1 HP Primary Model:
- SKU: 9000-385
- Maximum Gate Length: 35 feet (10.7 m)
- Maximum Gate Weight: 1,500 pounds (680 kg)
- Input: 115 VAC, 60 Hz, 9.7A (standard)
- Alternative Power Options: 208 VAC, 230 VAC, 460 VAC with step-down transformer
Specifications
Construction
- Frame: 3/16" (4.7 mm) steel with corrosion protection
- Cover: 1/4" (6.3 mm) inch polypropylene
- Drive System: Belt-driven 30:1 gear reduction in continuous oil bath
- Chain: 20 ft (6 m) of #40 roller chain included

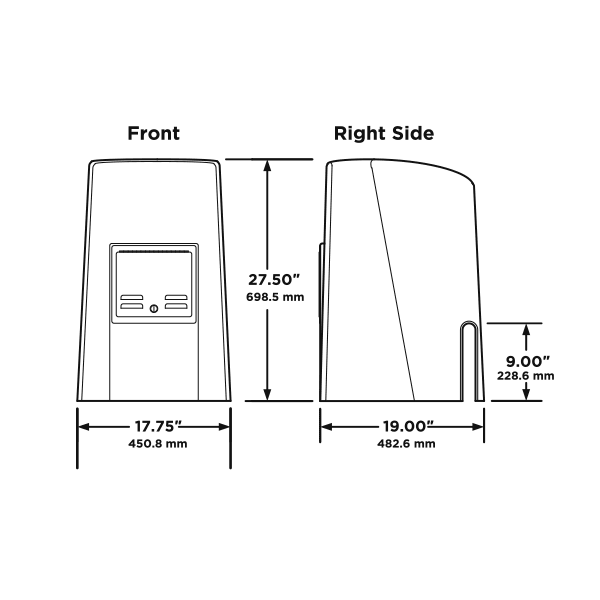

- Dimensions: 18.375"W x 31.675"H x 23.25"D
- Shipping Weight: 145-170 lb (64-77 kg)
Electrical Features
- Direct-driven limit nuts for precise gate control
- Auto-close timer (1-30 seconds)
- Selectable loop/reverse input function
- Anti-tailgating feature
- Standard normally closed stop circuit
- Built-in power On/Off switch
- Built-in alarm reset switch
- Two 115 VAC convenience outlets
- Ports for plug-in open and reverse loop detectors (DKS detectors only)
Safety & Compliance
- Requires monitored Type B1 and/or Type B2 entrapment protection devices
- Operating Temperature: 10°F to 140°F (-12°C to 62°C)
- Thermostatically controlled heater kit available for colder environments
- Compliant with UL 325 and 991 standards
- ETL Listed
- Suitable for Class I, II, III, and IV applications
Optional Accessories
- Heater kit for cold weather environments
- Base plate for post mounting
- Plug-in loop detectors
- Secondary operator for bi-parting gates (9000-381 or 9000-386)
Note: Five-year limited warranty included. Step-down transformers are used to achieve 115 VAC operating voltage for 208, 230, and 460 VAC models. Compatible with required entrapment protection devices (sold separately).
