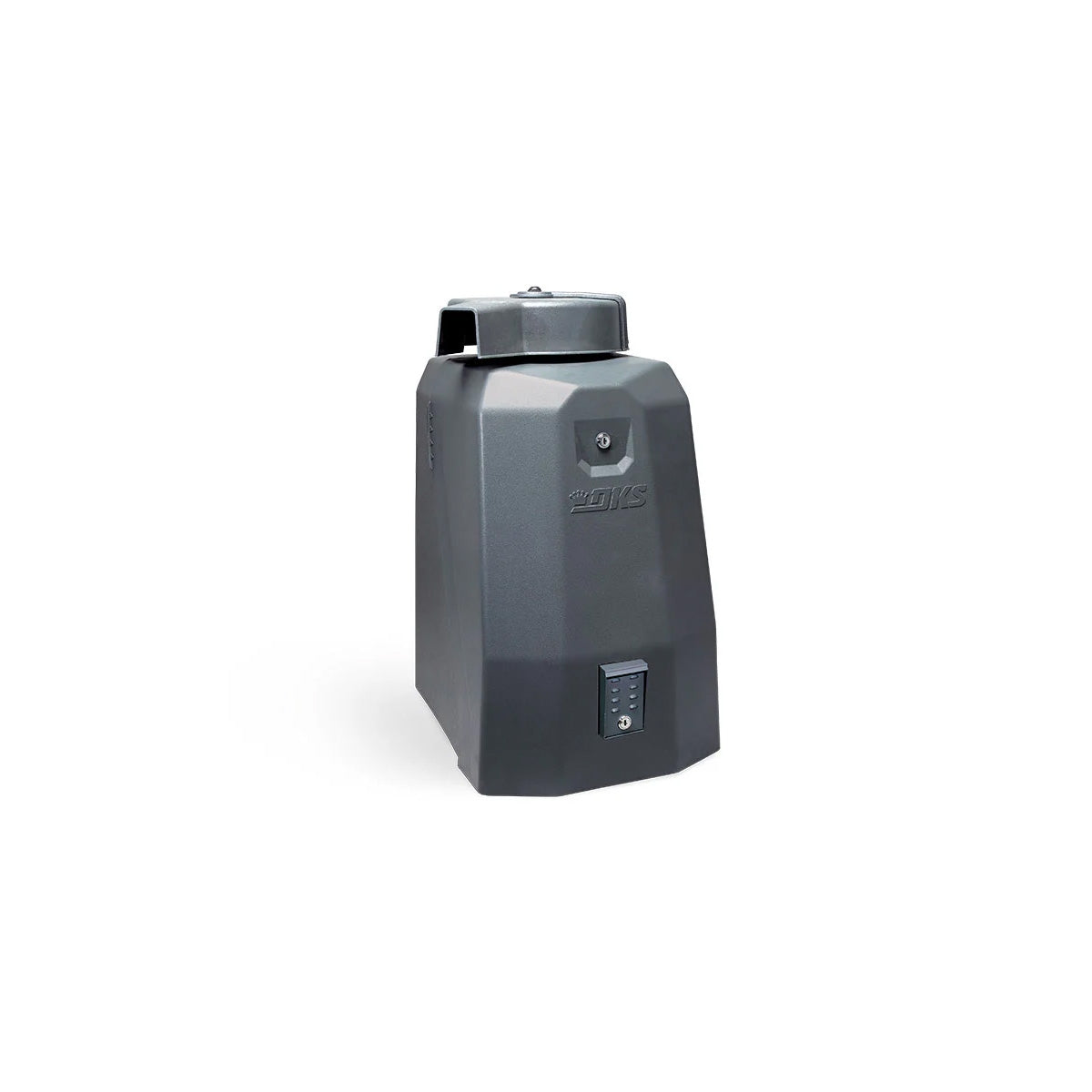

DoorKing 6524 DC Swing Gate Operator

DoorKing 6524 DC Swing Gate Operator with Battery Backup & Solar Power Options

The DoorKing 6524 DC Swing Gate Operator offers uninterrupted operation and reliability in a versatile, compact design. Perfect for residential, commercial, and industrial applications, this operator keeps running even when AC power is lost, thanks to its built-in battery backup system. Available in both AC-powered (6524-380) and Solar-powered (6524-381) models, the 6524 provides flexible installation options for virtually any location.

Uninterrupted Power Solutions

• Built-in 7.2 Ah batteries (2) provide operation during power outages
• AC model converts 115/230 VAC to 24 VDC with switch selection
• Solar model operates on 24 VDC power for remote installations
• 0.0 Amp SBPD circuit optimizes battery usage (solar model only)
• Optional 18 Ah batteries for extended backup capacity

Powerful Performance

• 1/2 HP Quadra Drive DC motor for long-lasting, reliable operation
• Handles gates up to 16 feet in length and 800 pounds in weight
• 90° opening in approximately 12-14 seconds
• Pulley/belt drive with 60:1 worm gear-box reduction system
• Smooth, extremely quiet gate operation

Convenient Design Features

• Split polypropylene housing for easy access without removing gate arm
• Two-piece articulating arm with mechanical slow-start/slow-stop function
• Unique breakaway hub design prevents gear box damage
• Heavy-duty steel frame for strength and durability
• Keyed manual release for operation during power failures

Available Models

• AC-Powered Model:
  • SKU: 6524-380
  • Input Power: 115/230 VAC (switch selectable), 1.8A/0.9A
  • Includes built-in 7.2 Ah batteries
  • Continuous operation with AC source power
  • Approximately 40 cycles on battery backup
  • Optional 18 Ah batteries extend backup to approximately 150 cycles
  • Includes 115 VAC convenience outlets and AC power shut-off switch
• Solar-Powered Model:
  • SKU: 6524-381
  • Input Power: 24 VDC, 8.5A
  • Includes built-in 7.2 Ah batteries
  • Requires solar panel (sold separately)
  • 0.0 Amp SBPD circuit for efficient battery usage
  • Approximately 150+ cycles with DK solar kit
  • Ideal for remote locations without AC power access

Specifications

Gate Capacity

• Maximum Gate Length: 16 feet (4.87m)
• Maximum Gate Weight: 800 pounds (363kg)
• Opening Speed: 90° in approximately 12-14 seconds

Power & Performance

• Motor: 1/2 HP Quadra Drive DC Motor
• Battery Backup Cycles (with 16ft, 800lb gate):
  • Standard 7.2Ah batteries: Approximately 40 cycles
  • Optional 18Ah batteries: Approximately 150 cycles
  • Solar Power: 150+ cycles with DK solar kit

Construction

• Frame: Steel with corrosion-resistant plating
• Housing: Split polypropylene design
• Drive System: Pulley/belt driven 60:1 worm gear reduction in continuous oil bath
• Dimensions: 20.5"W x 38.5"H x 30"D (52cm W x 97.8cm H x 76.2cm D)
• Shipping Weight: 175-225 lbs (79-102 kg)

Advanced Features

• Electronic magnetic limit switches - easy to adjust
• Auto-close timer (1-30 seconds)
• Gate overlap feature for dual gate operation
• Selectable shadow/reverse loop function
• DC power shut-off switch
• Battery protection circuit
• Gate Tracker™ reporting capability

Safety & Compliance

• Requires monitored Type B1 and/or Type B2 entrapment protection devices
• Operating Temperature: 10°F to 115°F (-12°C to 46°C)
• Thermostatically controlled heater kit available for freezing temperatures (AC model only)
• Conforms to ANSI/CAN/UL 325:2017 Ed. 7
• Certified to CSA C22.2 #247
• Suitable for Class I, II, III, and IV applications

Optional Accessories

• 18 Ah batteries for extended backup (AC model only)
• Solar Kit: Includes two 18 Ah batteries and 10 Watt, 24 VDC solar panel (for Solar model)
• Heater kit for cold weather environments (AC model only)

Note: For optimal winter performance in freezing temperatures, thermostatically controlled heater kit is required to prevent batteries from freezing and can only be used with AC powered model. Five-year limited warranty included. Actual cycle count may vary depending on gate usage, accessories connected, gate weight, operating condition, temperature, and battery charge state.
