DoorKing 6500 Secondary Swing Gate Operator

DoorKing 6500 Secondary Swing Gate Operator

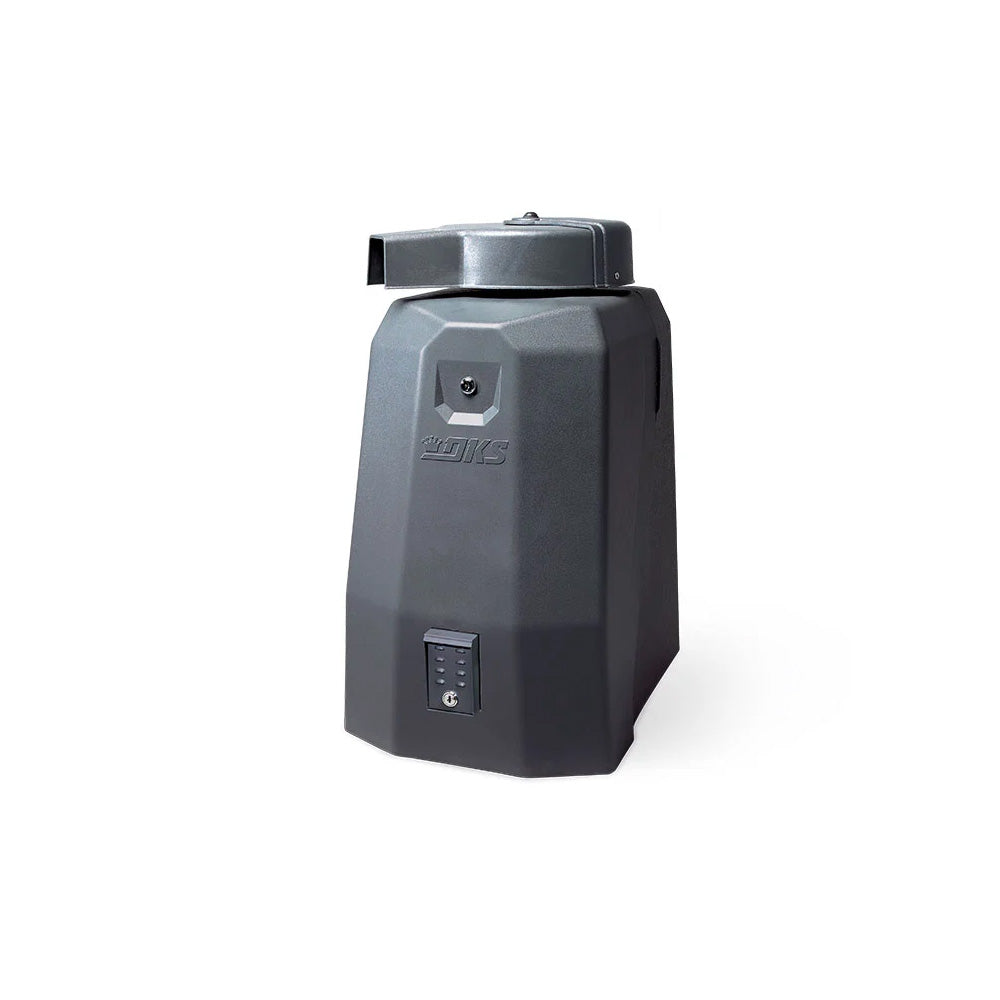

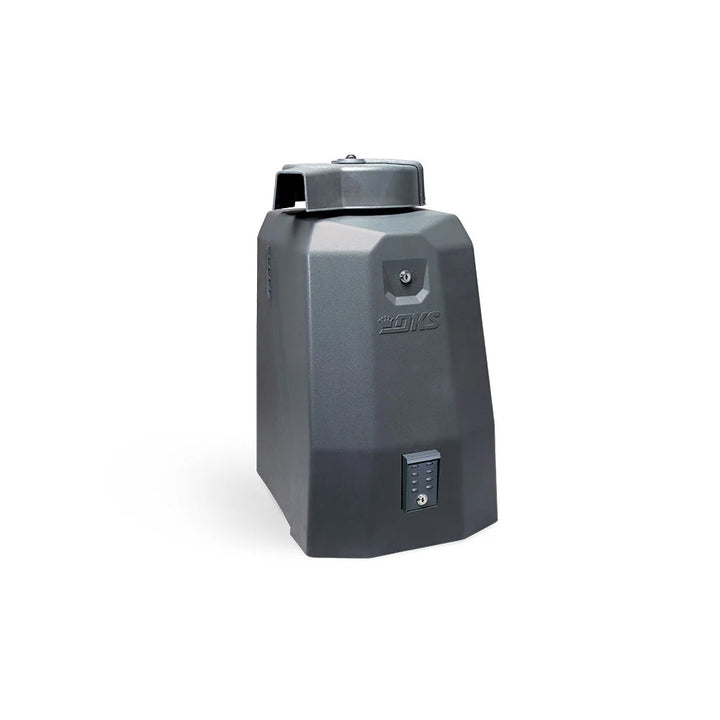

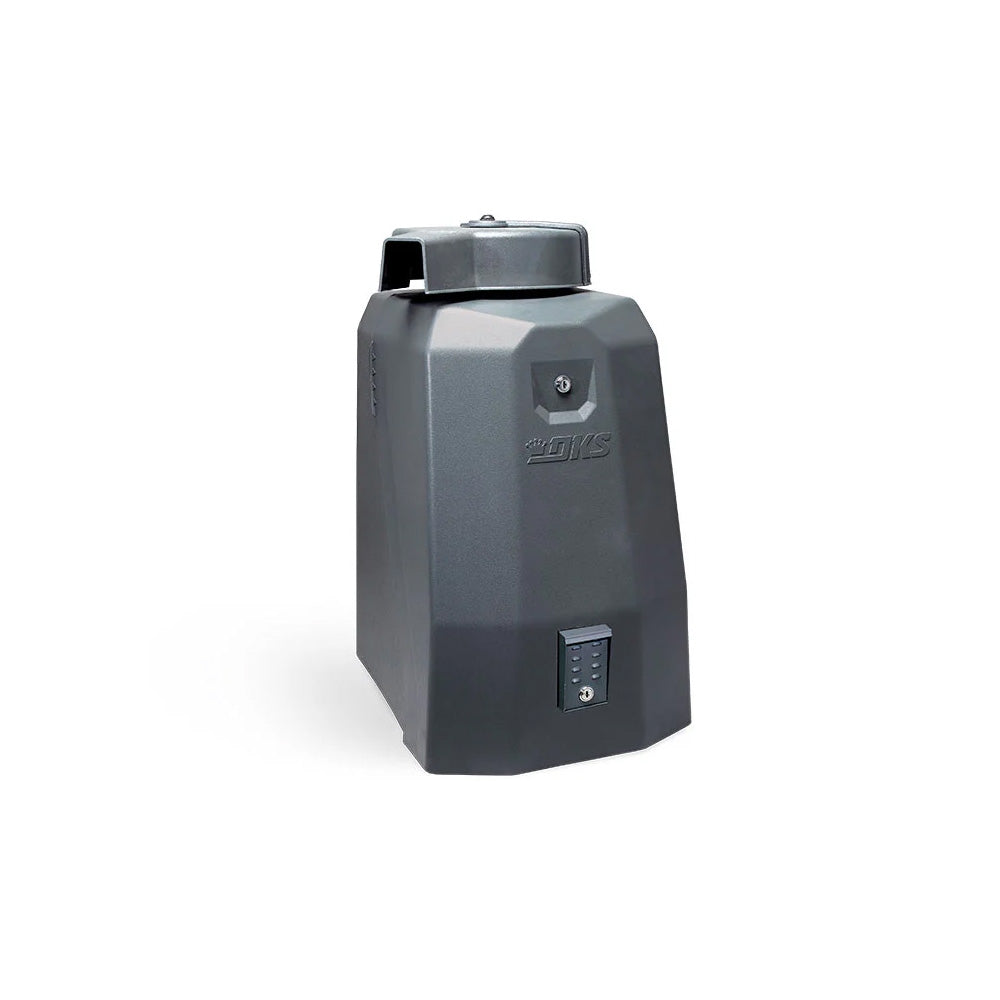

The DoorKing 6500 Secondary Swing Gate Operator is specifically designed for bi-parting (dual) gate applications, working in conjunction with a DoorKing 6500 primary operator. These secondary units cannot function as standalone operators but create a synchronized pair with the primary unit for smooth dual gate operation. Like the primary models, secondary operators feature the same innovative split housing design for easy maintenance without having to remove the gate arm.

Important Note: These operators CANNOT be used as standalone devices and must be paired with a corresponding primary DoorKing 6500 operator.

Bi-Parting Gate Solution

• Designed exclusively for dual gate applications
• Includes 50-foot connection cable for simple installation
• Synchronized operation with primary operator
• Same robust construction as primary unit
• Dual gate overlap feature for proper sequencing

Easy Access Design

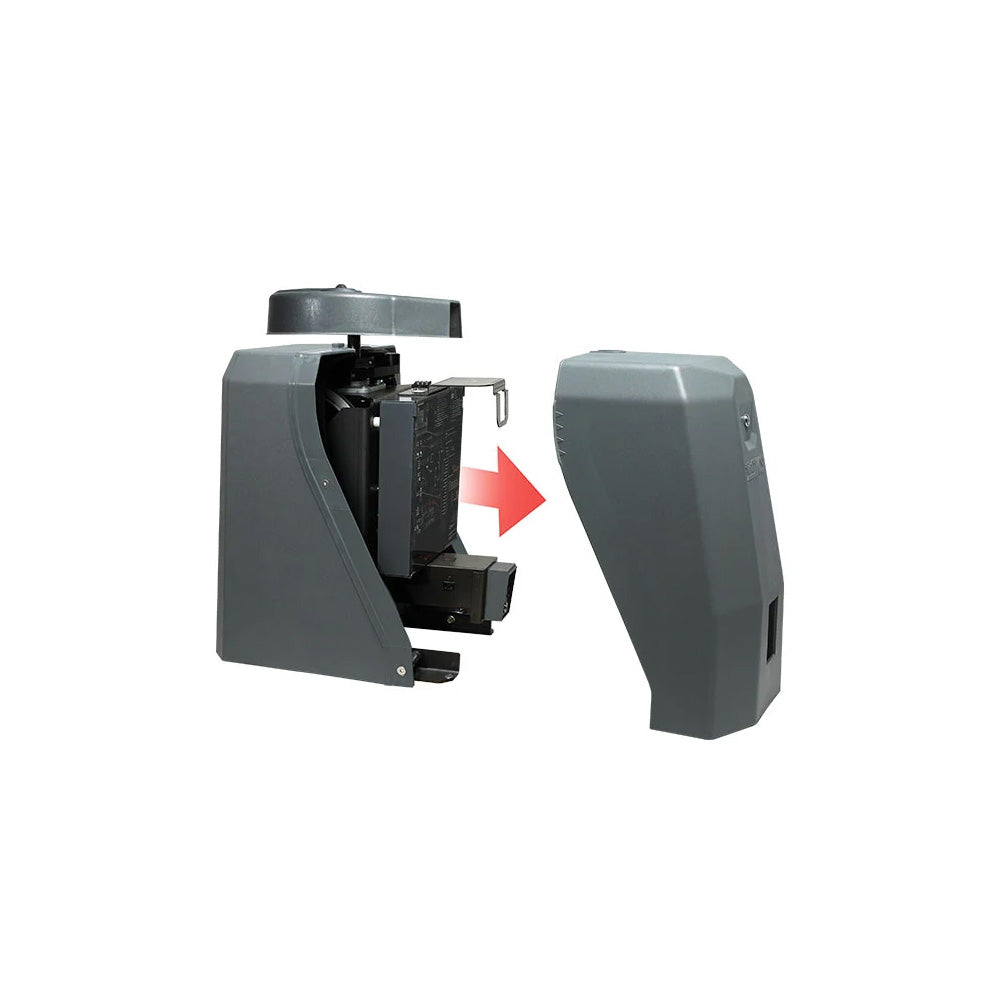

• Two-piece split housing for effortless maintenance without gate arm removal
• Electronic magnetic limits eliminate old-style mechanical switches
• Unique breakaway hub prevents gear box damage if gate is struck
• Belt-driven 60:1 worm gear reduction system for quiet operation
• Steel frame construction for strength and long-term durability

Matching Performance

• Available in 1/2 HP or 1 HP configurations to match primary operator
• Handles gates up to 22 feet in length and 800 pounds in weight (1 HP model)
• 90° opening in approximately 12-14 seconds
• Articulating arm provides mechanical slow-start/slow-stop function
• Receives control signals from primary operator

Available Models

• 1/2 HP Secondary Operator:
  • SKU: 6500-381
  • Maximum Gate Length: 18 ft (5.5 m)
  • Maximum Gate Weight: 700 lb (318 kg)
  • Must be paired with 6500-380 primary operator
  • Includes 50-foot connection cable
  • Cannot be used as a standalone operator

• 1 HP Secondary Operator:
  • SKU: 6500-385
  • Maximum Gate Length: 22 ft (6.7 m)
  • Maximum Gate Weight: 800 lb (362 kg)
  • Must be paired with 6500-384 primary operator
  • Includes 50-foot connection cable
  • Cannot be used as a standalone operator

Specifications

Construction

• Frame: Steel with corrosion-resistant plating
• Housing: Split polypropylene design
• Drive System: Pulley/belt driven 60:1 worm gear reduction in continuous oil bath
• Dimensions: 18.38"W x 31.63"H x 23.25"D
• Shipping Weight: 175-225 lb (79-102 kg) depending on model

Electrical Features

• Electronic magnetic limit switches
• Receives power and control signals from primary operator
• Includes 50-foot connection cable
• Same high-quality components as primary operator

Installation Requirements

• Concrete mounting pad required
• Must be within 50 feet of primary operator (extended cables available)
• Primary operator (6500-380 or 6500-384) required for operation
• Same entrapment protection requirements as primary operator

Safety & Compliance

• Requires monitored Type B1 and/or Type B2 entrapment protection devices
• Operating Temperature: 10°F to 115°F (-12°C to 62°C)
• Thermostatically controlled heater kit recommended for colder environments
• Conforms to ANSI/CAN/UL 325:2017 Ed. 7
• Certified to CSA C22.2 #257
• Suitable for Class I, II, III, and IV applications

Optional Accessories

• Heater kit for cold environments
• Uphill arm pivot kit
• Extended connection cables (if standard 50-foot cable is insufficient)

Note: Secondary operators CANNOT function as standalone units and MUST be paired with the corresponding primary 6500 operator (6500-380 for 1/2 HP model or 6500-384 for 1 HP model). Five-year limited warranty included.
