Doorking 6006 Swing Gate Opener Package (On Sale)

    • 8 Ft. (2.43m) @ 1600 lbs (725.7kg)
    • 16 Ft. (4.87m) @ 800 lbs (362.8kg)
    • 18 Ft. (5.48m) @ 600 lbs (272.1kg)

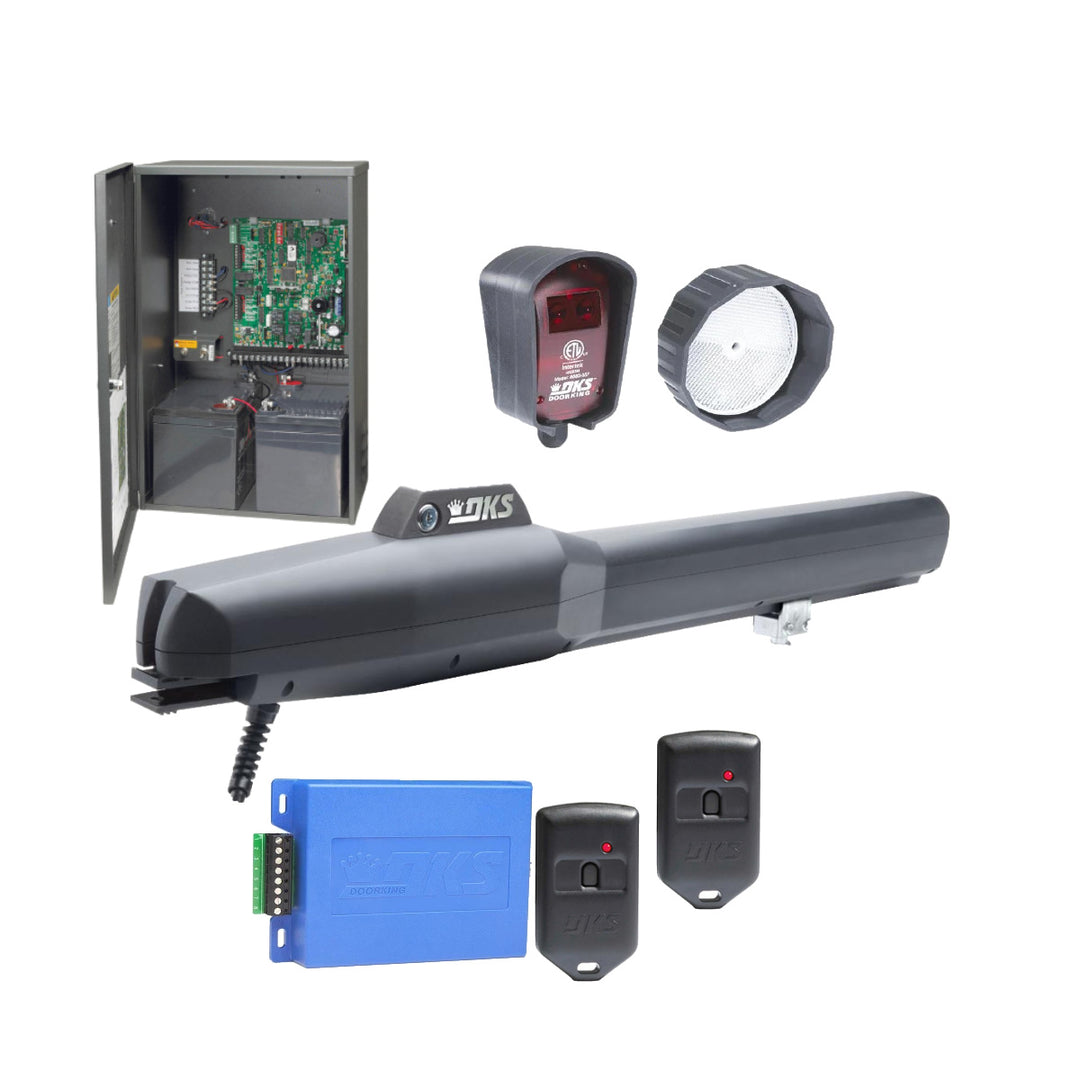

      Package Includes

      • 1 - arm 6006-380
      • 1 - control panel 4302-311 (requires 110v)
      • 2 - batteries 3.4amp

      The 6006 actuator operates on 24 Volt DC power and features built in limit switches that precisely control the start / stop speed, and travel of your gate. The microprocessor based electronic control board provides many advanced features typically not found in operators in this class. The control box can be powered by 120 Volt AC, which is then converted to 24 Volt DC to power the actuator and control board. Two 120 Volt control boxes are available to choose from, Deluxe and Standard. The Deluxe control box includes three 120 VAC outlets to power accessory transformers. Both include 3.5 Ah (Amp Hour) batteries for back-up power operation

      Features

      • Internal adjustable no contact magnetic limit switches.
      • Overlap feature for dual swing gate operation.
      • Magnetic lock output.
      • Screw drive.
      • Fully enclosed gear-reduction to maintain lubrication.
      • 24 VDC operating power.
      • Built-in battery back-up.
      • Separate control panel.
      • Keyed release for manual operation.
