DoorKing Illuminated Warning Sign System

The DoorKing Warning Sign system is a crucial safety component for automated traffic control installations, providing clear visual guidance and essential warning information for drivers. This illuminated system combines bright LED lighting with dual-sided warning messages, ensuring 24-hour visibility and compliance with safety requirements.

Illumination System

• Primary Lighting: Two 20W T8 LED bulbs (700 lumens each)
• Spike Illumination: 9W LED flood lamp (655 lumens)
• Automatic light sensor operation
• Dusk-to-dawn activation
• Manual override with keyed switch

Technical Specifications

• Dimensions: 24"H x 24"W x 8"D
• Power Requirements: 115 VAC
• Mounting: 3-inch post compatible (post not included)
• ETL Listed for safety compliance
• Weather-resistant construction

Safety Features

• High-contrast warning messages
• Reflective sign surfaces
• Integrated spike area illumination
• All-weather visibility
• Tamper-resistant housing

Installation Requirements

• Professional mounting recommended
• Clear line of sight positioning
• Proper electrical connection
• Secure post mounting system
• Correct message orientation

Sign Configurations

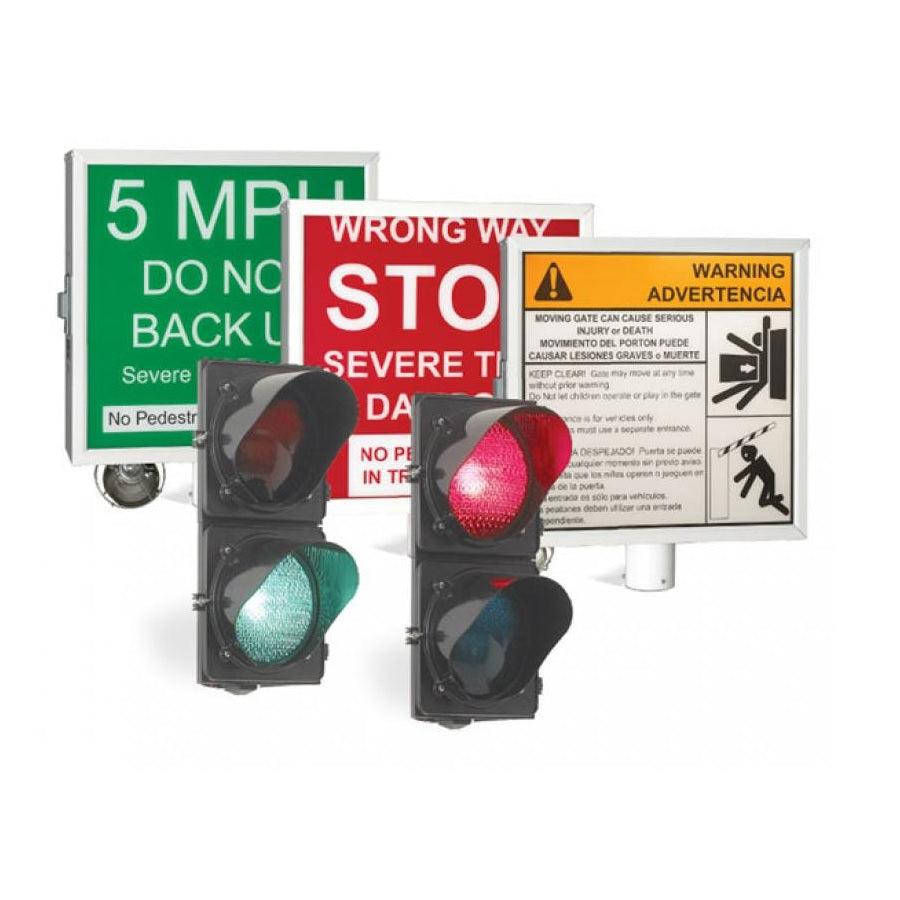

• Model 1615-080: Dual-message design
  • Red Side: "STOP - SEVERE TIRE DAMAGE"
  • Green Side: "MAXIMUM 5 MPH"
• Model 1615-081: Double-sided red warning
• Model 1615-082: Gate warning configuration
