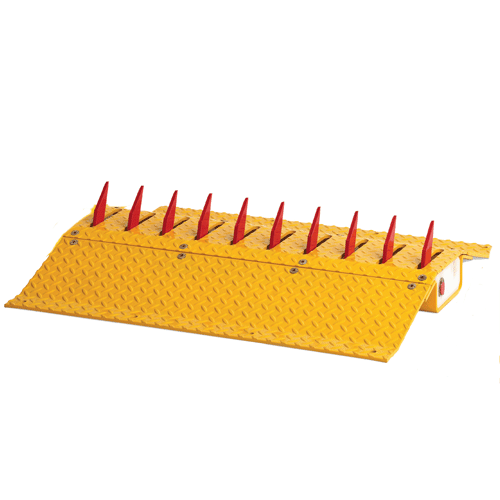

DoorKing 1610-088 Surface Mount Traffic Spike System

The DoorKing 1610-088 Surface Mount Traffic Spike System provides effective directional traffic control without requiring trenching or in-ground installation. This modular system combines robust construction with easy installation for parking facilities, security checkpoints, and commercial applications.

Key Features

Modular Design

• 3-foot modular sections for custom width configuration
• Ganged spike design with 3-4 spikes per group
• Torsion spring operation for reliable performance
• Built-in lock-down feature for two-way traffic

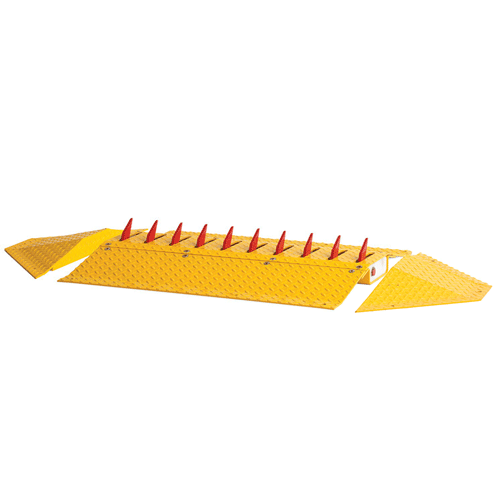

• End caps for smooth section termination

Construction Features

• 1/4-inch diamond plate housing
• High-visibility safety yellow finish
• 2-inch integrated speed bump design
• Surface-mount installation system
• Weather-resistant materials

Technical Specifications

Dimensions & Capacity

• Section Length: 36 inches (3 feet)
• Section Width: 20 inches
• Height: 2 inches
• Weight Capacity: 8,000 lbs per axle
• Maximum Speed: 5 MPH

Kit Components

Standard Package Includes

• 3-foot spike section (1610-088)
• Two end caps (1610-240)
• Lock-down tool (1610-010)
• Mounting hardware
• Installation instructions

Required Safety Accessories

• DoorKing 1615-080 LED Warning Sign
  • Mandatory safety requirement
  • Alerts drivers of one-way traffic condition
• DoorKing 1610-150 Speed Bump
  • Required for proper operation
  • Controls approach speed

Installation Notes

• Concrete surface mounting only
• No trenching required
• Not recommended for freezing climate zones
• Professional installation recommended
• Warning sign installation mandatory
