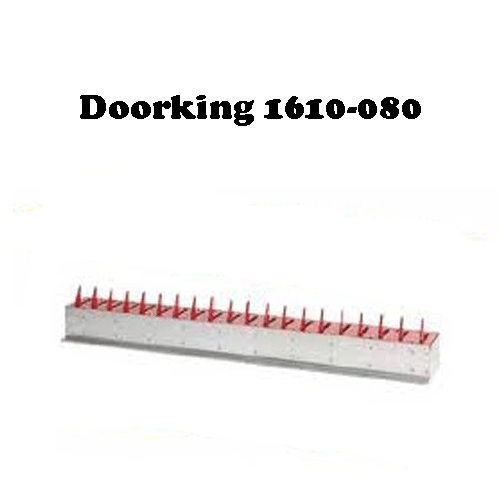

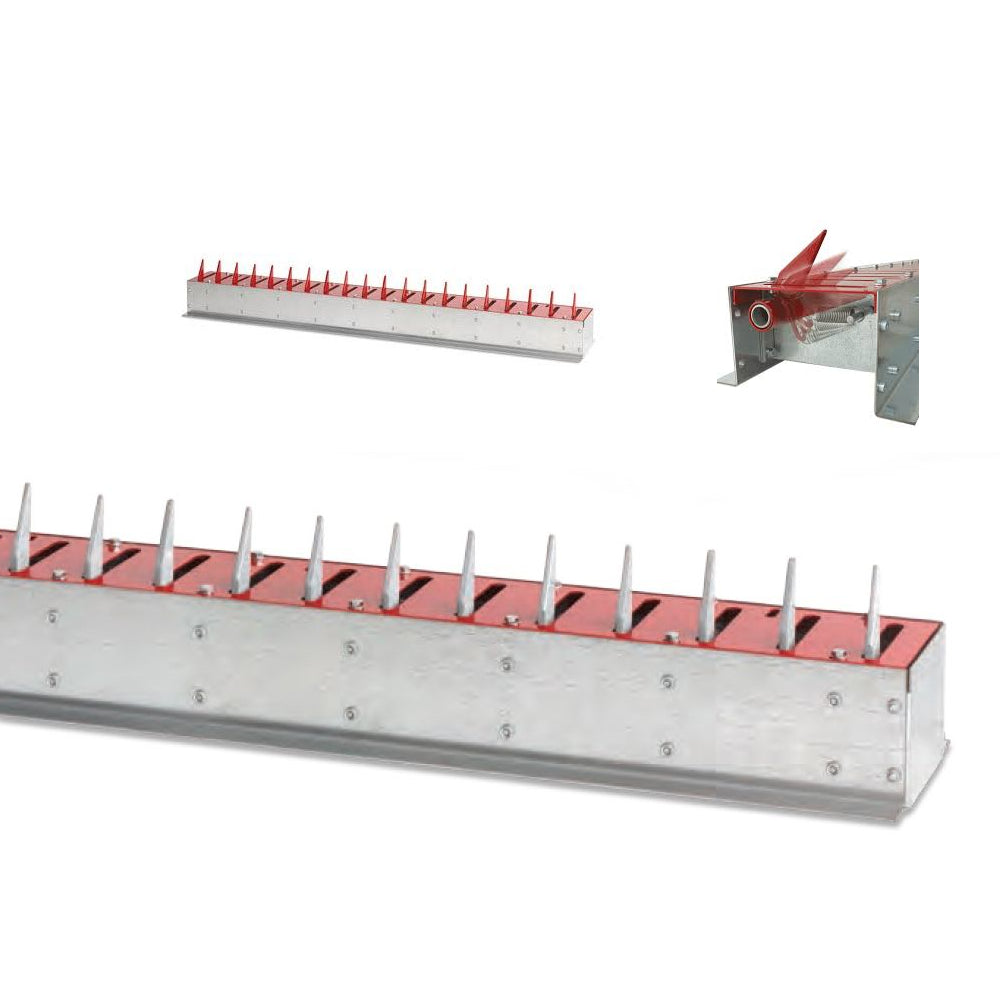

DoorKing 1610 Series Flush Mount Traffic Spikes

The DoorKing 1610 Series Flush Mount Traffic Spikes provide high-level security for managing vehicle access in commercial and industrial areas. Available in both spring retraction (1610-080) and weighted retraction (1610-081) models, these systems deliver reliable performance while preventing unauthorized vehicle access in the wrong direction.

Key Features

Advanced Design

• Choice of retraction mechanisms:
  • Spring-loaded with independent stainless steel springs
  • Counter-weighted for smoother, quieter operation
• Flush mount design for seamless ground integration
• 6-foot modular sections for flexible lane coverage
• Optional lock-down feature for temporary two-way traffic

Durability & Performance

• Heavy-duty 8,000 lbs per axle weight capacity
• Galvanized steel construction for corrosion resistance
• High-visibility red-painted top plate
• Designed for 5 MPH maximum vehicle speed
• Independent spike operation for consistent performance

Technical Specifications

Construction Details

• Section Length: 72 inches (6 feet)
• Housing Material: Galvanized steel
• Installation Type: Flush, in-ground mounting
• Installation Depth: 12 inches
• Mounting Surface: Concrete only

Required Safety Accessories

Essential Components

• DoorKing 1615-080 Traffic Warning Sign
  • Illuminated LED warning sign
  • Mandatory for safety compliance
  • Clear visibility for approaching vehicles
• DoorKing 1610-150 Speed Bump
  • Solid composite construction
  • Surface-mounted design
  • Safety yellow finish for high visibility

Installation Notes

• Professional installation recommended
• Requires concrete mounting surface
• Not recommended for areas subject to freezing weather with potential snow and ice accumulation
• Warning sign installation is mandatory for all spike systems
