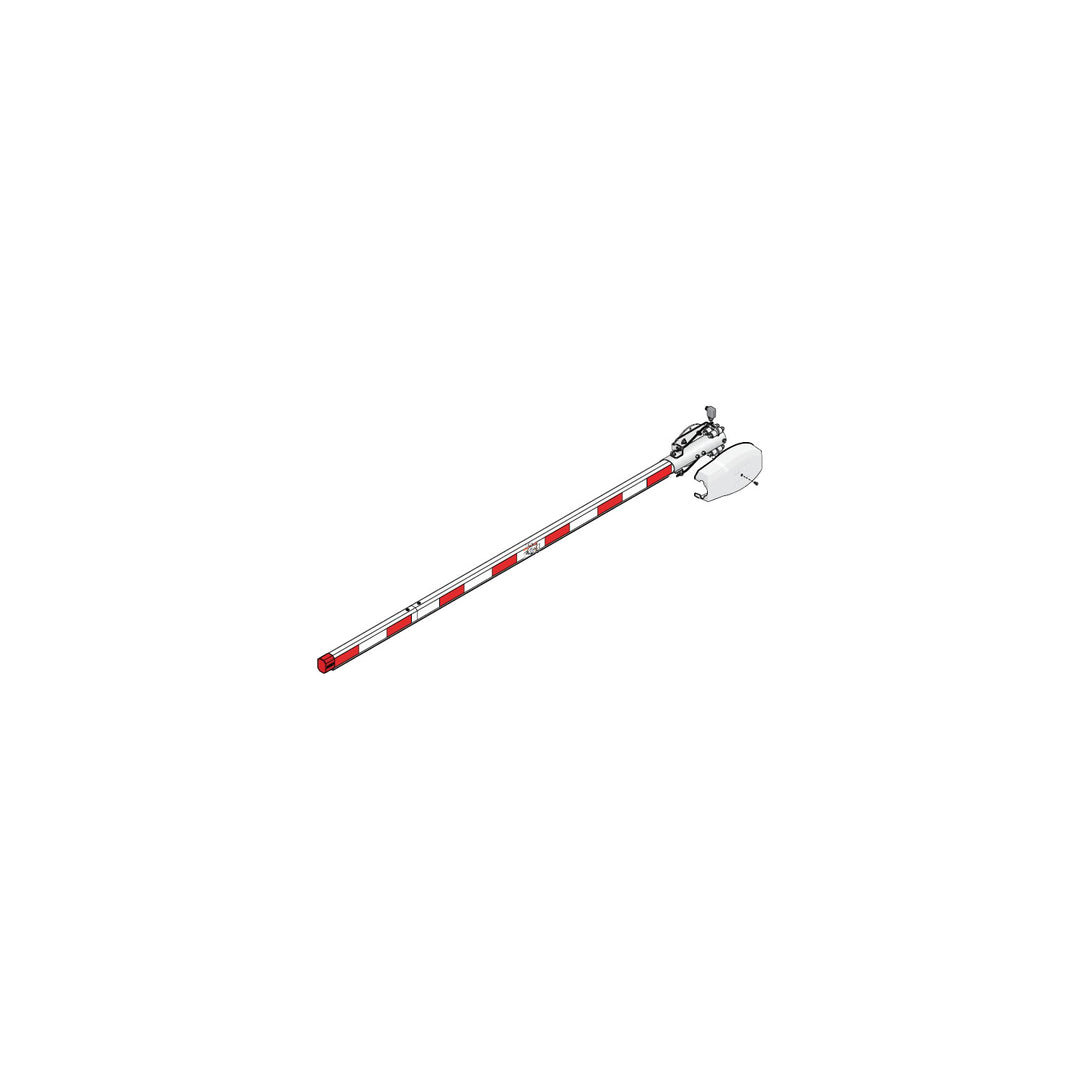

DoorKing 1602 17ft Octagonal Breakaway Arm Kit with LED Reversing Edge

DoorKing 17ft Octagonal Breakaway Arm Kit with LED Reversing Edge

This premium safety and visibility kit provides the ultimate protection package for your DoorKing 1602 Parking Gate Operator. Combining a 14-foot octagonal base arm with a 3-foot extension, breakaway hardware, and LED reversing edge sensor, this comprehensive 17-foot solution offers triple safety features: impact-resistant breakaway functionality, reversing edge technology, and highly visible LED signaling. This custom-length solution offers the perfect balance between extended reach, damage prevention, and superior visibility.

Key Features

• Complete 17-foot octagonal breakaway arm solution with LED reversing edge technology
• Triple safety approach: Breakaway functionality + Reversing edge technology + LED visibility
• Modular design combining 14-foot arm with 3-foot extension for optimized transportation
• Integrated LED lighting system with automatic red/green color changes based on gate position
• Premium octagonal aluminum construction for enhanced visibility and durability
• Breakaway capability allows arm to swing away during significant impacts
• Easy reset - arm simply snaps back into place after breakaway
• Reversing edge triggers immediate arm reversal upon obstacle contact
• Night visibility at long distances thanks to bright LED signals
• All necessary hardware and components included for complete installation
• Ideal length for medium-width traffic lanes and entrances

Kit Components

• Base Arm and Extension
  • 14ft One-Piece Octagonal Aluminum Arm (P/N 1601-555)
  • 3ft Octagonal Arm Extension Kit (P/N 1602-303)
  • Creates 17ft total length when assembled
  • Premium octagonal profile for enhanced visibility

• Hardware and Safety Components
  • Breakaway Arm Hardware Kit (P/N 1601-295)
  • 15ft Reverse Edge + Red/Green LED (P/N 8080-415, formerly 8080-315)
  • All connection hardware for proper assembly and installation
  • Designed for maximum safety, visibility, and damage prevention

Specifications

Physical Characteristics

• Material: Octagonal Aluminum with Breakaway Mechanism
• Assembled Length: 17 Ft (5.18m)
• Components: 14ft base arm + 3ft extension
• Distinctive octagonal profile for enhanced visibility
• LED Lighting: Red when closed, Green when open

Breakaway Hardware Features

• Allows arm to swing out of the way upon significant impact
• Simple reset mechanism - arm snaps easily back into place
• Can be configured for breakaway from either side of the cabinet
• All required fasteners and securing hardware included
• Designed to prevent costly arm replacements

LED Reversing Edge Features

• Length: 15ft coverage along the arm
• Pressure-sensitive edge technology detects contact with obstacles
• Integrated LED lighting system with automatic color changes
• Red LEDs illuminate when barrier is in down/closed position
• Green LEDs illuminate when barrier is in up/open position
• Triggers immediate arm reversal upon activation
• Enhances visibility of barrier arm status, especially at night
• Weather-resistant construction for reliable outdoor operation

Compatibility

• Compatible with DoorKing 1602 Parking Gate Operators (1602-090 and 1602-091)
• Also compatible with DoorKing 1601-805 Barrier Gate Operator
• Can be mounted on either left or right side of roadway

Installation Requirements

• All necessary hardware included in this complete kit
• Professional installation strongly recommended
• Basic electrical and mechanical skills required
• Must be properly connected to operator control board

Available Accessories

• High Wind Bracket Kit (P/N 1601-297) - recommended for areas with strong winds
• Helps prevent unwanted arm release during high winds
• Sold separately, not included in this kit

Note: This premium safety and visibility kit offers the most comprehensive protection available for extended-length barrier systems. The combination of LED lighting, reversing edge technology, and breakaway functionality provides maximum protection against damage while enhancing operational visibility. For complete barrier gate safety, DoorKing requires the use of appropriate primary safety devices such as in-ground loops or photocells. The safety features in this kit provide important secondary protection but are not intended to be the sole safety system. Always follow manufacturer installation guidelines and safety recommendations to ensure proper system operation and compliance with safety standards.
