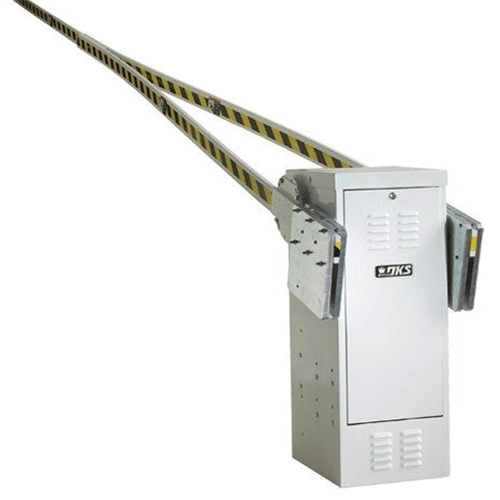

DoorKing 1602 Wide-Lane Barrier Gate Opener

DoorKing 1602 Wide-Lane Barrier Gate Operator

ARM NOT INCLUDED

The DoorKing 1602 is a heavy-duty barrier gate operator specifically designed for wide traffic lanes up to 27 feet. With its robust wishbone arm system and powerful 1 HP motor, this operator is ideal for industrial sites, loading dock areas, and restricted access facilities requiring extended reach and reliable operation. The three-piece counter-balanced design ensures smooth, controlled movement for oversized entrances.

Industrial Performance

• 1 HP continuous-duty AC motor
• 5.5-second 90° arm rotation
• 60:1 worm gear reduction system
• Counter-balanced wishbone design
• Heavy-duty harmonic arm linkage

Security & Safety

• Optional pedestrian protection system
• Warning beeper operation
• Fail-secure mechanical release
• UL 325 compliant
• ETL listed operation

Control Features

• Electronic limit settings
• Auto-close timer (1-23 seconds)
• P.A.M.S. sequencing capability
• Gate Tracker™ reporting
• Multiple command memory

Specifications

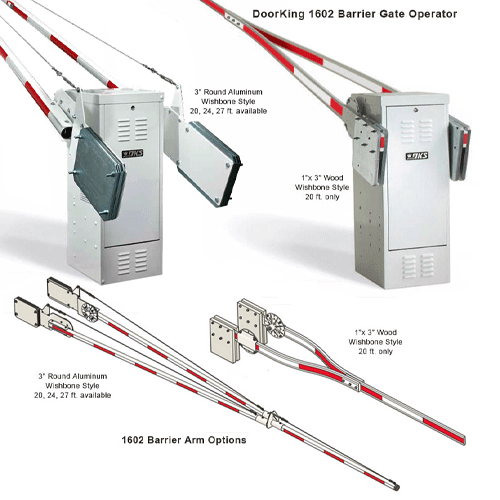

Arm Options

• Round Aluminum Wishbone: 20, 24, 27 feet
• Octagonal Aluminum Wishbone: 20, 24, 27 feet
• Octagonal Single Arm: Up to 17 feet
• Wood Rectangular: Up to 20 feet
• LED options for octagonal arms

Construction

• G90 galvanized steel housing
• NEMA 4X rated enclosure
• Left or right-hand mounting
• Weight: 160-180 pounds

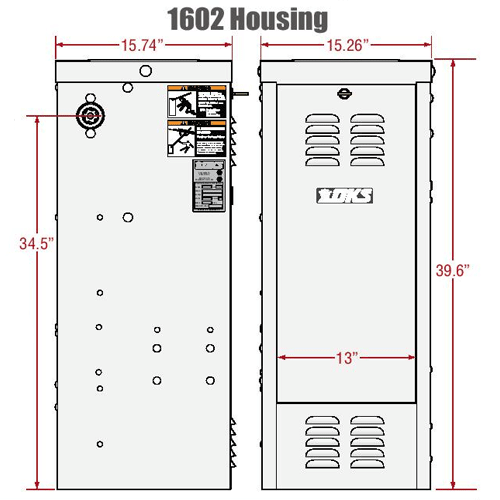

• Dimensions: 15.25"W x 39.75"H x 15.75"D

Operational

• Power: 115V, 230V, or 460V options
• Operating Temperature: 10°F to 140°F
• Optional heater kit available
• Optional battery backup
• Class III and IV applications
• 230 and 460 Volt units use a step-down power transformer to reach 115 Volt operating voltage

Additional Features

• Two convenience outlets
• Built-in loop detector ports
• Manual crank kit option
• Surge suppression available

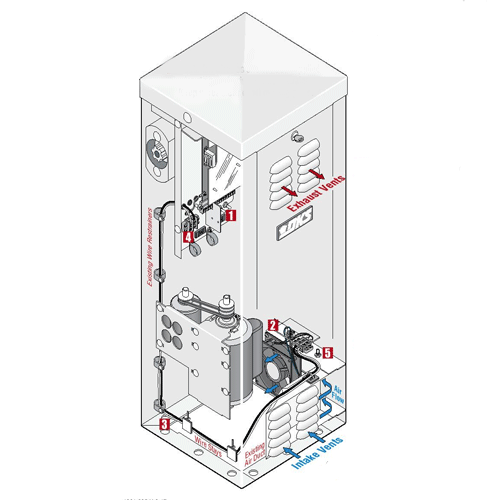

• Optional fan kit

Warranty

• 5-year limited warranty
