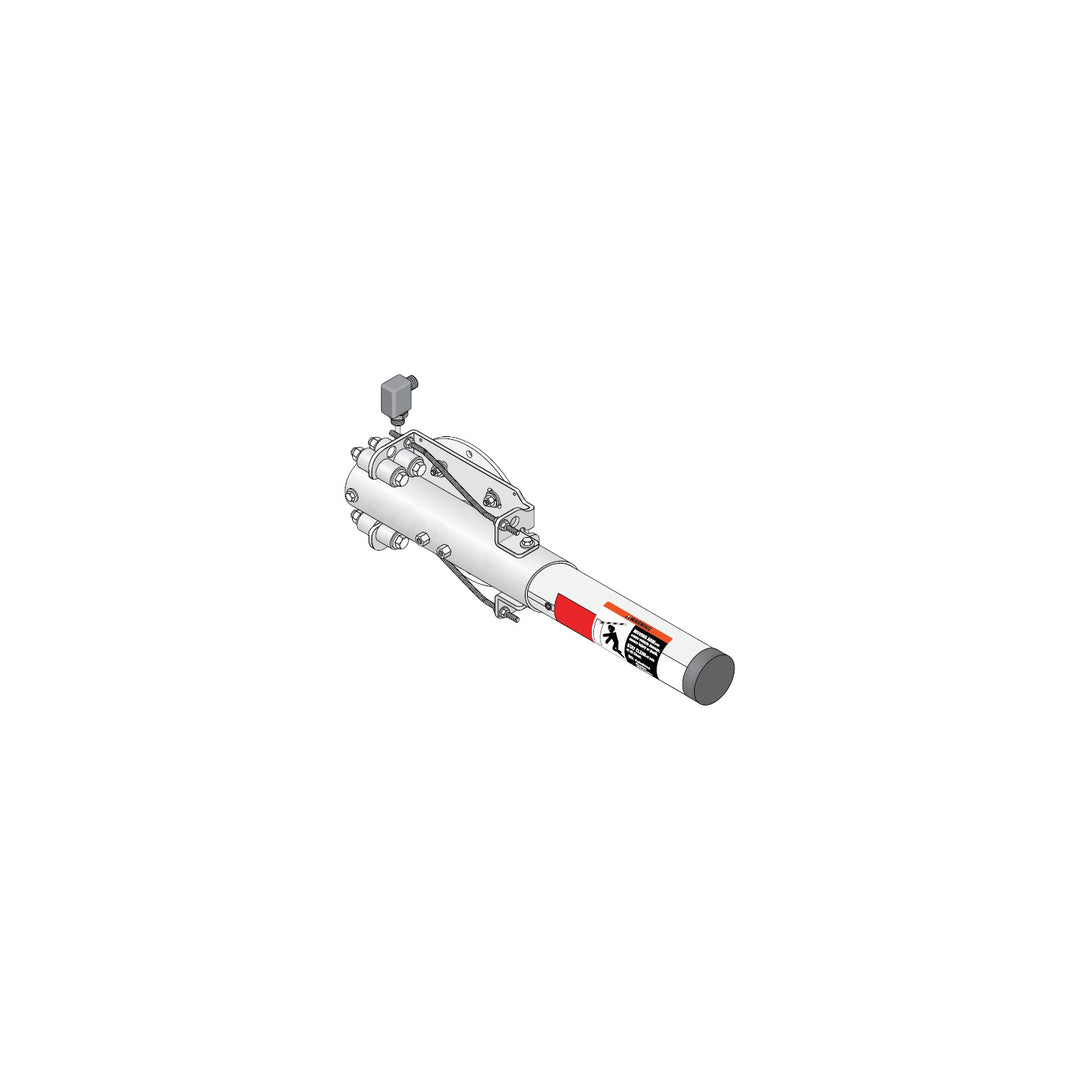

DoorKing 1601 Round Aluminum Breakaway Arm Kit

DoorKing 1601 Round Aluminum Breakaway Arm Complete Kit

This comprehensive kit includes everything you need to add breakaway functionality to your DoorKing 1601 Parking Gate Operator. Combining our premium 14-foot round aluminum breakaway arm with the required hardware kit, this complete solution provides enhanced protection against vehicle impacts while ensuring smooth operation of your barrier gate system. Choose between one-piece or two-piece arm configurations to best suit your shipping and installation requirements.

Key Features

• Complete solution with both arm and required hardware in one package
• Breakaway functionality prevents costly damage from vehicle impacts
• Easy reset - arm simply snaps back into place after breakaway
• Premium aluminum construction for durability and longevity
• 14-foot arm length suitable for standard traffic lanes
• Configure breakaway from either side of the operator cabinet
• Available in one-piece or two-piece arm options

Available Options

• 14 Ft One-Piece Breakaway Arm Complete Kit
  • SKU: 1601-522-BRKKT
  • Includes: One-Piece Round Aluminum Breakaway Arm (1601-522)
  • Includes: Breakaway Arm Hardware Kit (8080-295, formerly 1601-285)
  • Single-piece construction for streamlined appearance
  • Same durability as two-piece when installed
  • IMPORTANT SHIPPING NOTICE: Due to the length exceeding 8 feet, this option incurs significantly higher shipping costs

• 14 Ft Two-Piece Breakaway Arm Complete Kit
  • SKU: 1601-528-BRKKT
  • Includes: Two-Piece Round Aluminum Breakaway Arm (1601-528)
  • Includes: Breakaway Arm Hardware Kit (8080-295, formerly 1601-285)
  • Sectional design for easier transportation and handling
  • Simple assembly at installation site
  • RECOMMENDED OPTION: Significantly reduced shipping costs compared to one-piece model

Specifications

Arm Specifications

• Material: Round Aluminum with Breakaway Mechanism
• Length: 14 Ft (4.3m)
• Available in One-piece (1601-522) or Two-piece (1601-528) construction
• Compatible with plastic arm cover (included with operator)

Hardware Kit Contents

• Breakaway mounting brackets
• Reset mechanism components
• All required fasteners and securing hardware
• Complete installation instructions

Breakaway Functionality

• Arm designed to swing out of the way upon impact
• Easily resets by simply snapping the arm back into place
• Can be set for breakaway from either side of the cabinet
• Reduces maintenance costs by preventing arm breakage
• Optional high wind bracket available separately (P/N 1601-297)

Compatibility

• Designed for DoorKing 1601 Parking Gate Operators
• Compatible with models 1601-380, 1601-381, 1601-480, and 1601-481
• For open areas with open vertical clearance
• Can be mounted on either left or right side of roadway

Installation Requirements

• All necessary hardware included in this complete kit
• Professional installation recommended
• Basic tools required for installation (not included)

Note: For complete barrier gate safety, DoorKing recommends using appropriate safety devices such as in-ground loops or photocells to protect vehicles passing underneath the barrier arm. The breakaway feature is not a substitute for proper safety systems but provides additional protection against accidental impacts. Always follow manufacturer installation guidelines and safety recommendations.
