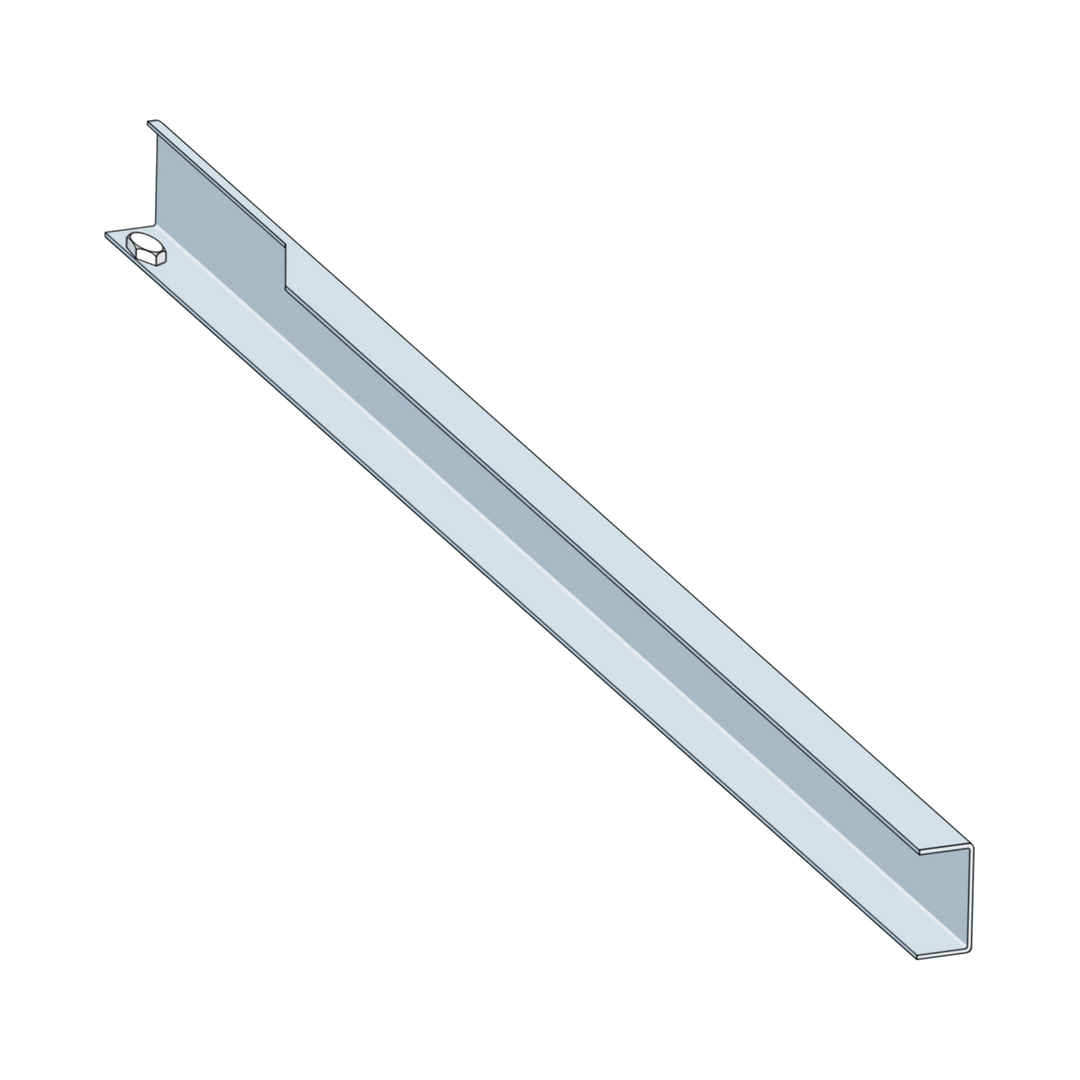

DoorKing 1175 Rail Assemblies for Overhead Door Operator

DoorKing 1175 Rail Assemblies for Overhead Door Operators

DoorKing Rail Assemblies are specifically designed for the 1175 Overhead Door Operator, providing the essential track system needed for smooth, reliable door operation. Available in four different lengths to accommodate doors from 8 to 14 feet in height, these heavy-duty rail assemblies ensure proper installation and optimal performance for your overhead door automation system. Each assembly includes robust 3-inch rails engineered for industrial-grade durability in parking structures and commercial applications.

Superior Construction

• Heavy-duty 3-inch (76.2mm) rail construction
• Precision engineered for the DoorKing 1175 operator
• Industrial-grade materials for long-term reliability
• Smooth operation with minimal noise
• Designed for commercial and industrial applications

Perfect Fit Guarantee

• Factory-matched to DoorKing 1175 operator specifications
• Proper length options for various gate heights
• Complete assembly for straightforward installation
• Maintains proper clearance when installed correctly
• Engineered to DoorKing's strict quality standards

Available Models

• 8-Foot Door Rail Assembly:
  • SKU: 1150-225
  • Designed for doors up to 8 feet (2.43m) in height
  • Overall length: 12.25 feet (3.73m)
  • Ideal for standard residential and small commercial applications

• 10-Foot Door Rail Assembly:
  • SKU: 1150-226
  • Designed for doors up to 10 feet (3.05m) in height
  • Overall length: 14.25 feet (4.34m)
  • Perfect for medium-sized commercial entrances

• 12-Foot Door Rail Assembly:
  • SKU: 1150-227
  • Designed for doors up to 12 feet (3.66m) in height
  • Overall length: 16.25 feet (4.95m)
  • Suitable for larger commercial and industrial applications

• 14-Foot Door Rail Assembly:
  • SKU: 1150-228
  • Designed for doors up to 14 feet (4.27m) in height
  • Overall length: 18.25 feet (5.56m)
  • Engineered for maximum-height industrial overhead doors

Specifications

Construction

• Rail Material: Heavy-duty steel construction
• Rail Diameter: 3 inches (76.2mm)
• Finish: Industrial-grade for durability and corrosion resistance
• Design: Engineered specifically for the DoorKing 1175 operator

Dimensions

• Model 1150-225: 12.25 feet (3.73m) overall length
• Model 1150-226: 14.25 feet (4.34m) overall length
• Model 1150-227: 16.25 feet (4.95m) overall length
• Model 1150-228: 18.25 feet (5.56m) overall length

Installation Requirements

• Must be used with DoorKing 1175 Overhead Gate Operator
• Requires professional installation for proper alignment
• Ceiling mounting with adequate structural support
• Clearance requirements based on gate height and application

Compatibility

• Exclusively designed for the DoorKing 1175 Overhead Door Operator
• Compatible with doors mounted on jamb track or jamb type hardware
• Suitable for Class II, III, and IV applications
• Not compatible with residential overhead sectional garage doors

Note: Rail assemblies are sold separately from the DoorKing 1175 Overhead Door Operator. For complete system installation, you will need both the appropriate rail assembly and the operator unit. Professional installation is recommended to ensure proper operation and safety compliance.
