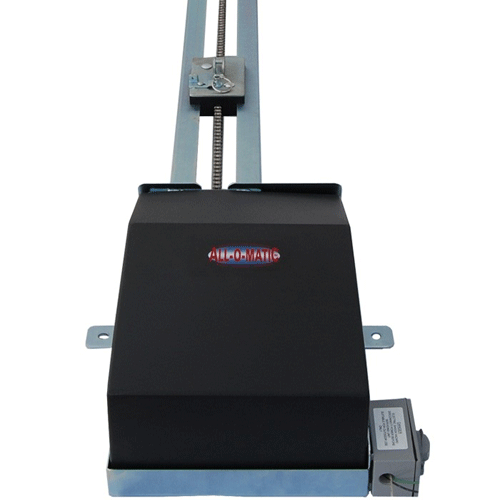

Allomatic OH200 DC Overhead Door Opener (10ft Rail)

The All-O-Matics new OH-200 DC overhead gate operator is the first and only commercial overhead gate operator available with long term battery backup.The OH-200 DC overhead gate operator comes equipped with a Brushless DC motor, built in loop rack, slow start/stops algorithm, heavy duty frame and parts that last a life time. The OH-200 DC offers days of uninterrupted operation in the event of a power failure.  This is designed for multi residential and commercial applications like apartment buildings, and underground parking structures.  The All-O-Matic OH-200 DC Overhead Gate Operator is covered by our 5/7 Year Manufacturers Warranty

Specs:

Limited Warranty: 7 Year Residential, 5 Year Commercial

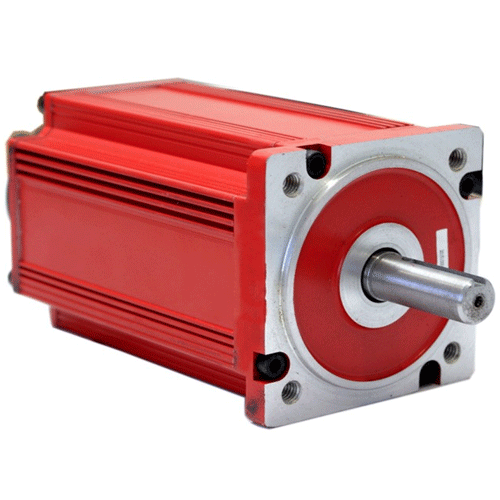

Motor: 24 VDC Brushless Motor ½ HP – Continuous Duty Cycle
Duty Cycle: Continous
Power Options: 120/220 VAC Single Phase

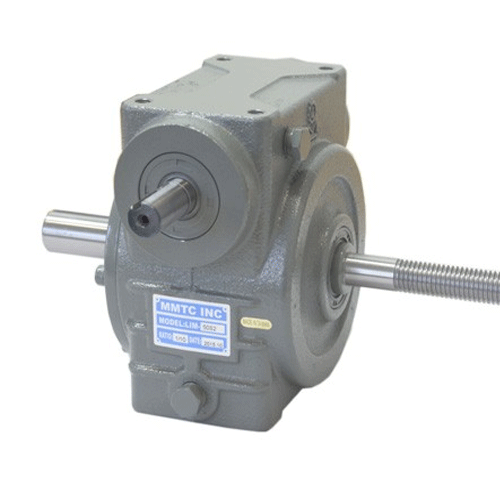

Gear Box Ratio: 40:1 Ratio
Cover: Rotationally Molded – Indestructible

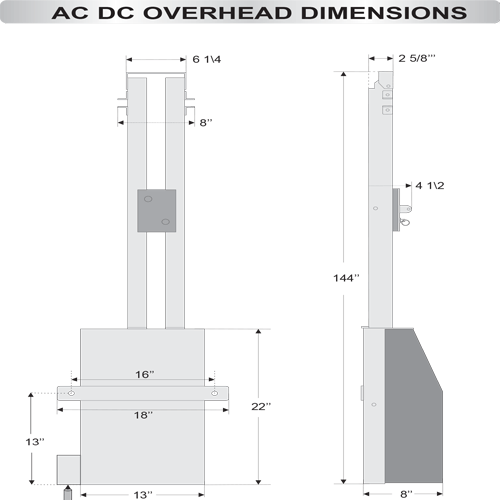

Dimensions: W: 13" – L: 144" – H: 8" , Also available in custom rail lengths
Maximum Gate Length: 22 Feet Wide
Maximum Gate Weight: 800 lbs
Gate Travel Speed: Depends on size of door
Emergency Release Options Quick Release Carriage and Drive Arm
Battery Backup:Integrated Full Time Battery Backup Capable of up to 100 cycles on a 800lbs GateBattery: Two 8 Ah Batteries 12VDC

Manufacturers Warranty:

The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner.Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
