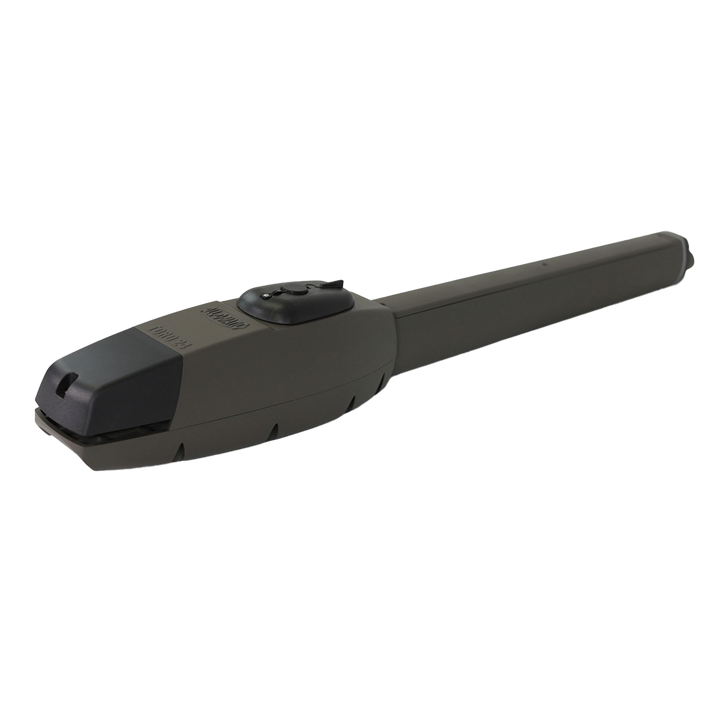

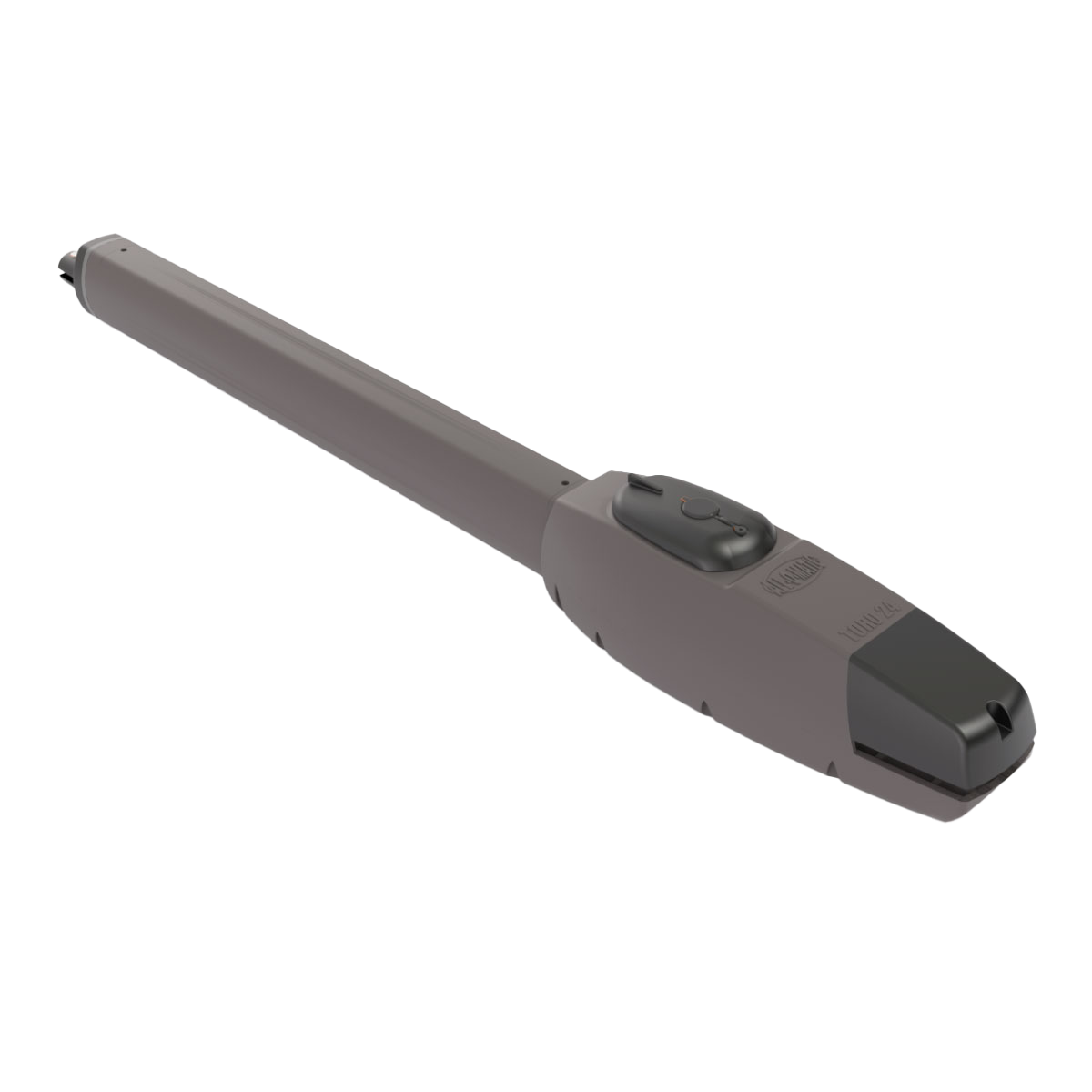

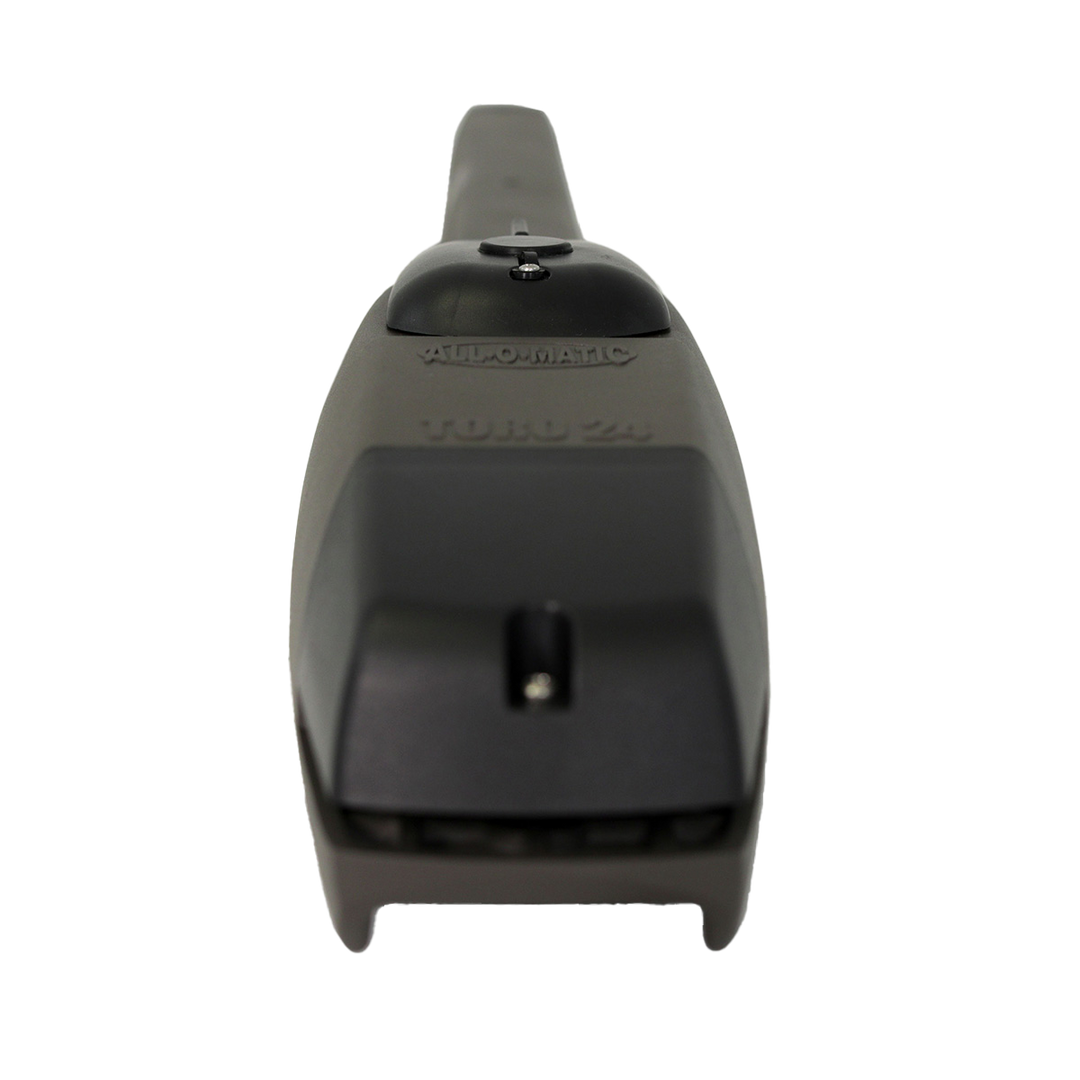

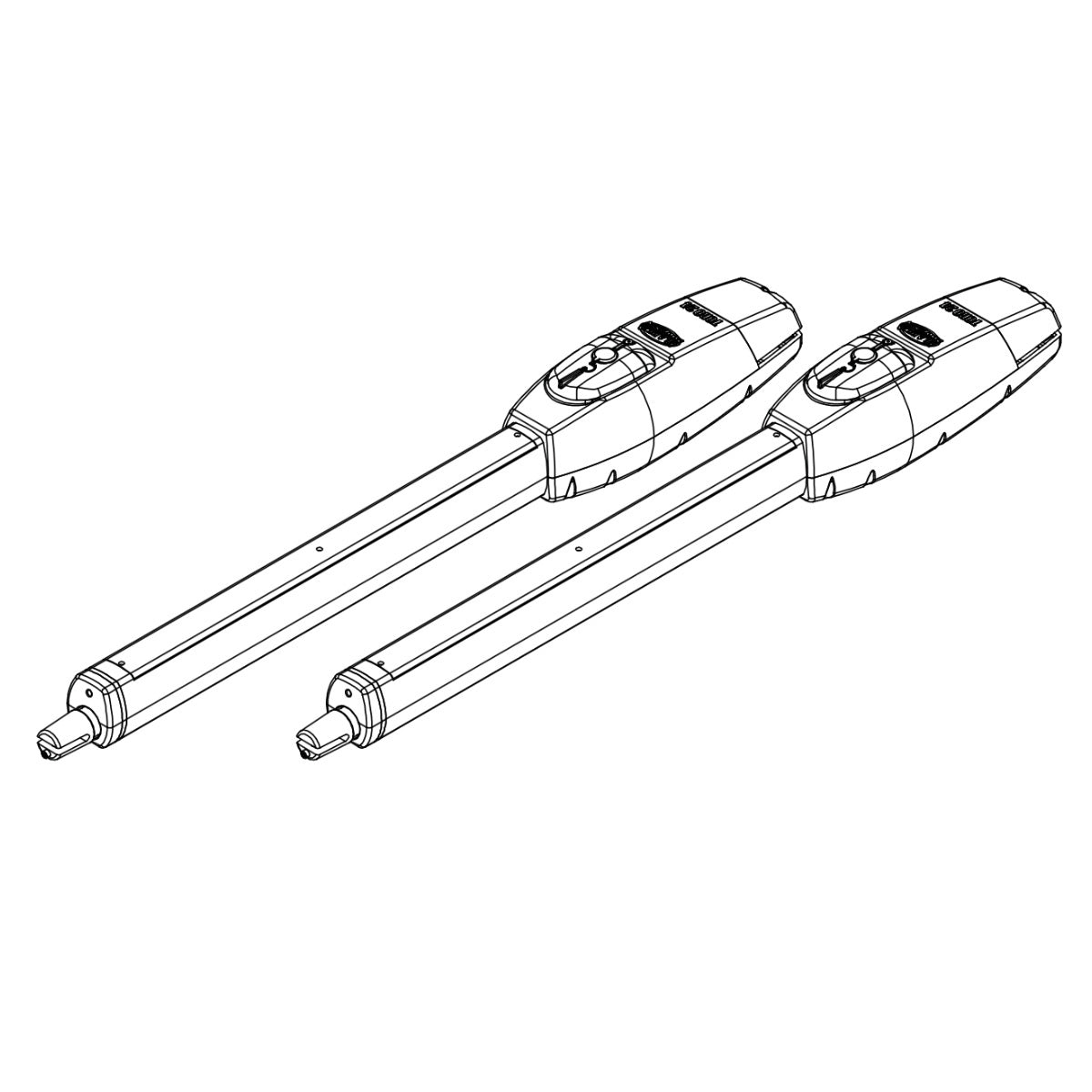

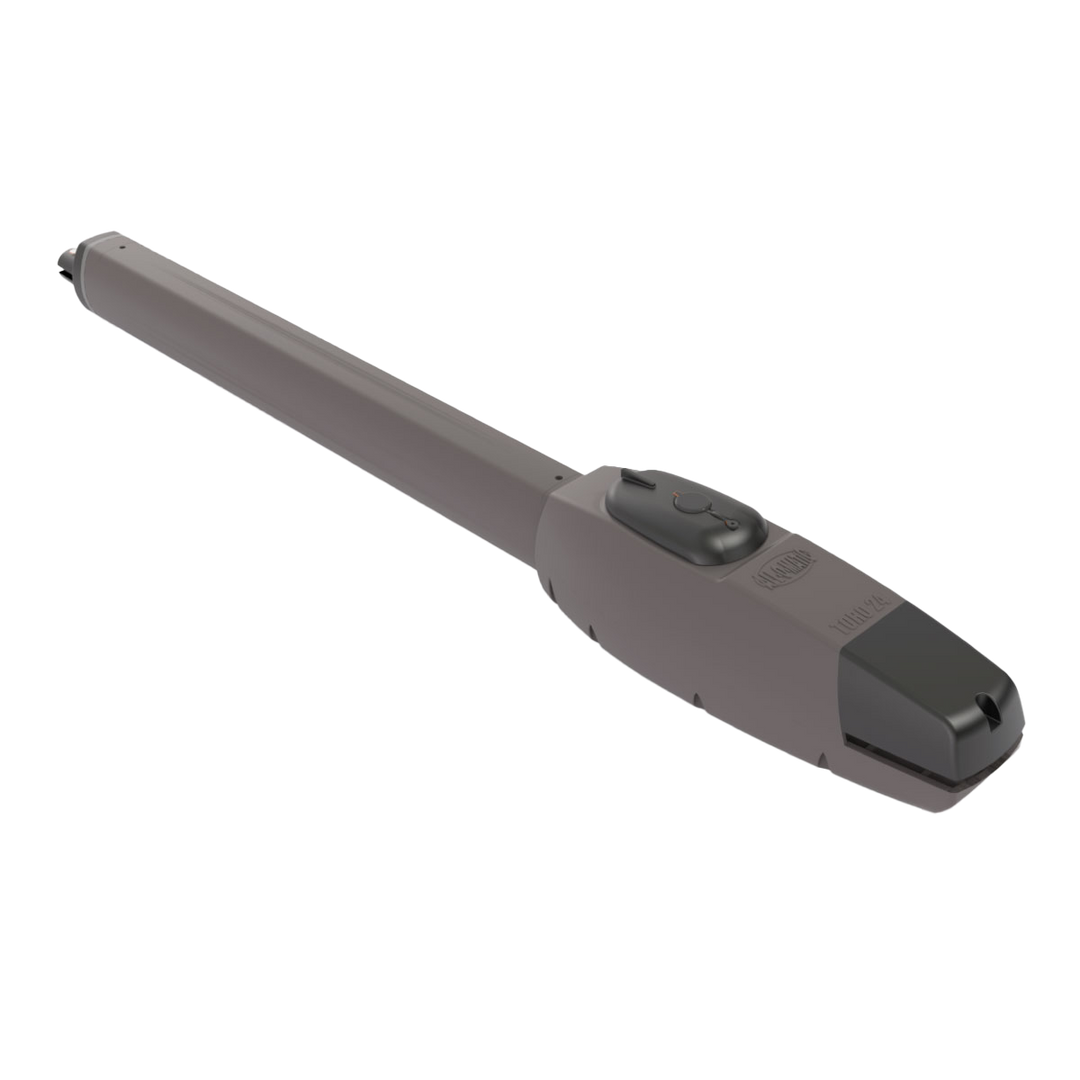

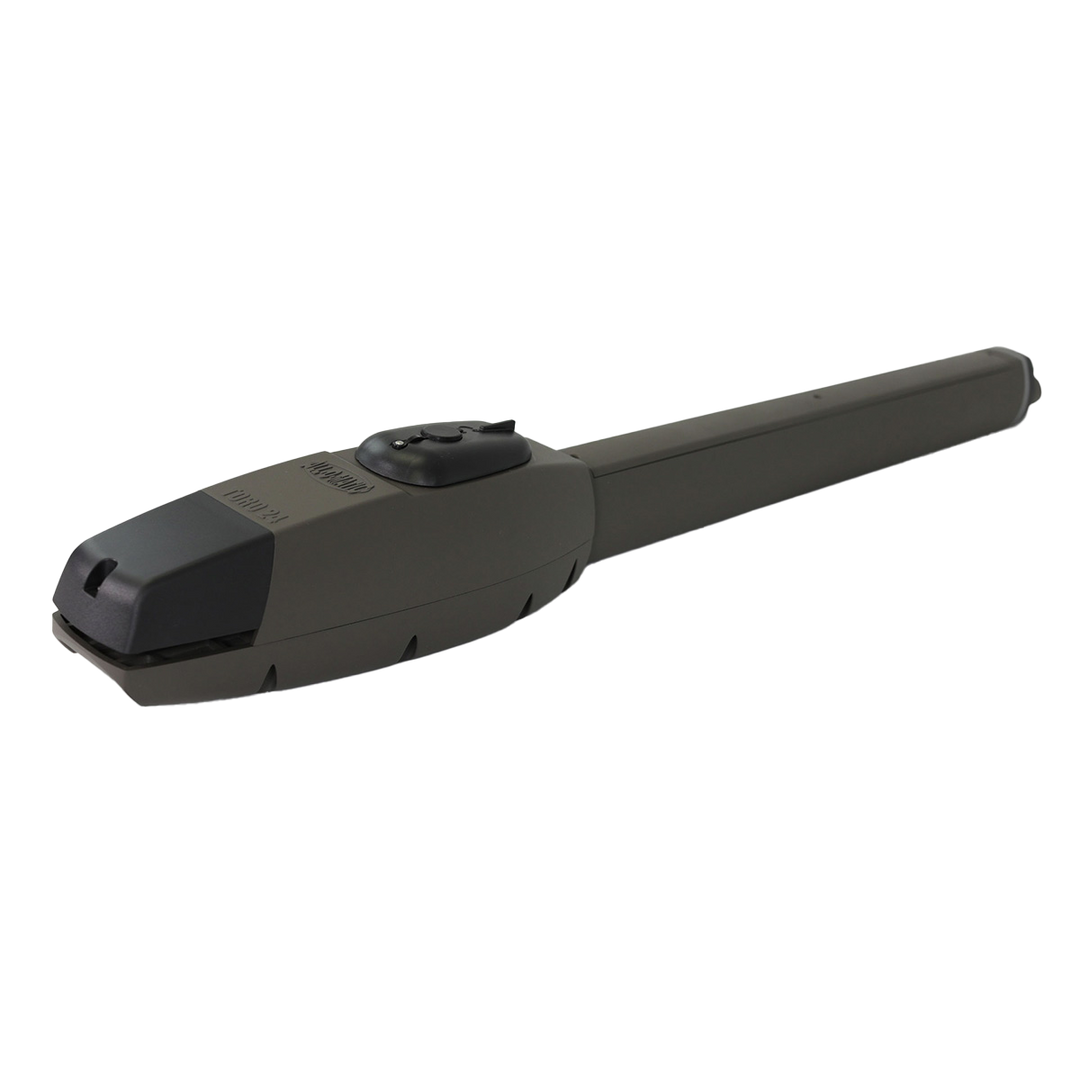

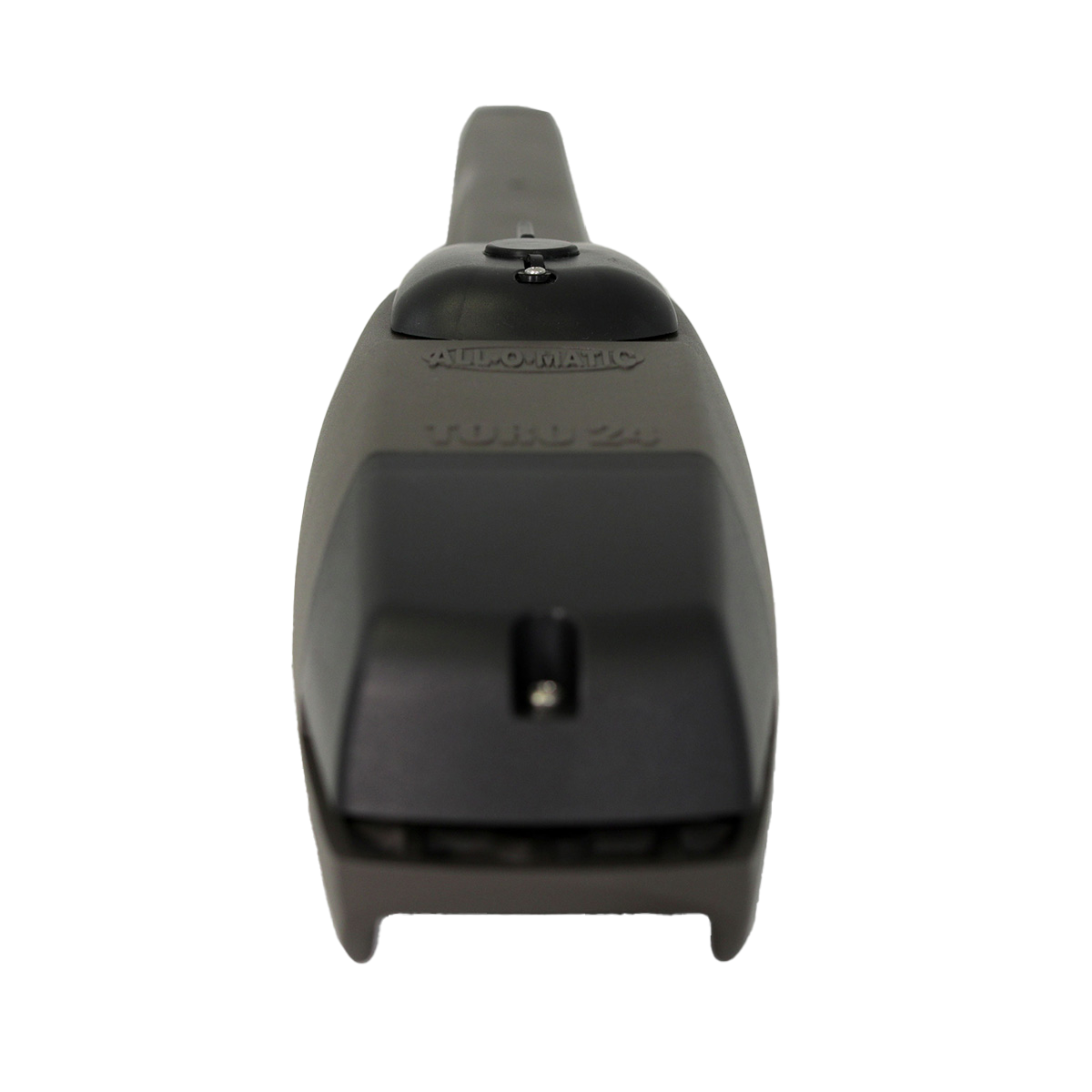

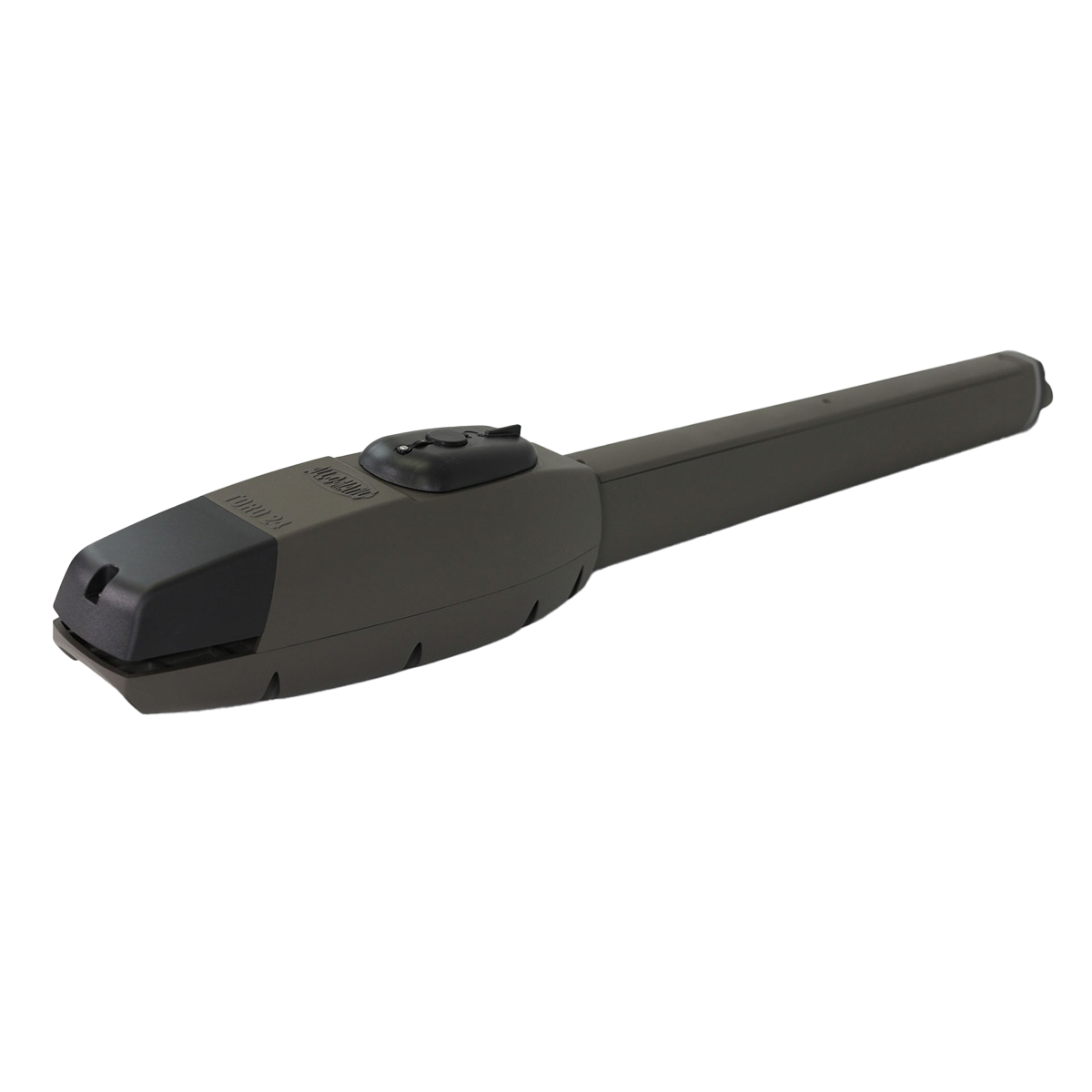

ALL-O-MATIC TORO24 Prime Swing Actuator for Heavy Residential Gates
The ALL-O-MATIC TORO24 Prime Swing Actuator features a modern, sleek design that complements any gate while delivering reliable, powerful performance. This versatile actuator is engineered for both residential and light commercial applications, offering an uninterrupted power supply and easy access through a manual keyed release. With its advanced control board and solar compatibility, the TORO24 provides a sophisticated automation solution for a wide range of swing gate installations.
Elegant Modern Design
- Sleek, contemporary styling enhances gate appearance
- Clean linear actuator design integrates seamlessly with decorative gates
- Variable arm length: 38-39" fully retracted, 59" fully extended
- Unobtrusive installation maintains property aesthetics
- Durable construction withstands environmental exposure
Powerful Performance
- Exceptional weight capacity:
- 8 feet/1,600 lbs.
- 12 feet/1,200 lbs.
- 16 feet/800 lbs.
- 18 feet/600 lbs.
- Adjustable opening speed from 15-20 seconds per 90° operation
- Continuous duty cycle for demanding applications
- Smooth, consistent operation in varying conditions
- Engineered for longevity with minimal maintenance
Intelligent Control System
- Advanced control board with programmable logic
- Enhanced charge controller optimized for solar applications
- Compatible with 12/24V solar panels up to 80 watts
- Digital adjustments for precision operation tuning
- Versatile programming options for customized operation
Reliable Backup Power
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 450 cycles of operation during power outages
- Dual voltage input capability (115/230 VAC)
- Solar power compatibility for off-grid installations
- Continuous access even during extended power failures
Specifications
Gate Capacity
- Maximum Gate Weight/Length Combinations:
- 8 feet: up to 1,600 lbs.
- 12 feet: up to 1,200 lbs.
- 16 feet: up to 800 lbs.
- 18 feet: up to 600 lbs.
- Duty Cycle: Continuous
Power & Performance
- Gate Speed: Adjustable 15-20 seconds per 90° opening
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: Up to 450 cycles
- Operating Temperature Range: -40°F to 160°F
Dimensions & Installation
- Arm Length: 38-39" fully retracted, 59" fully extended
- Shipping Weight:
- Control box: 55 lbs.
- Arm: 25 lbs.

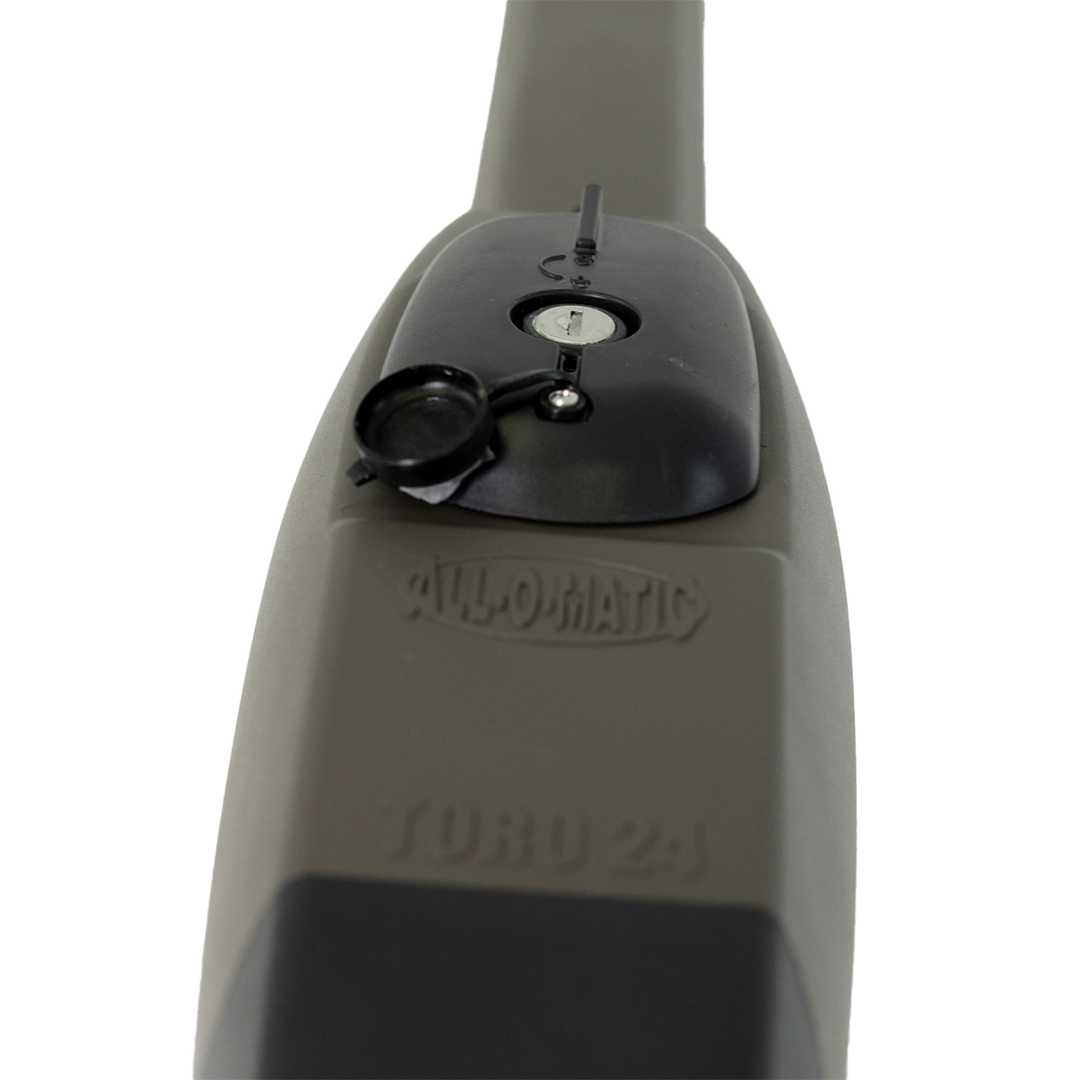

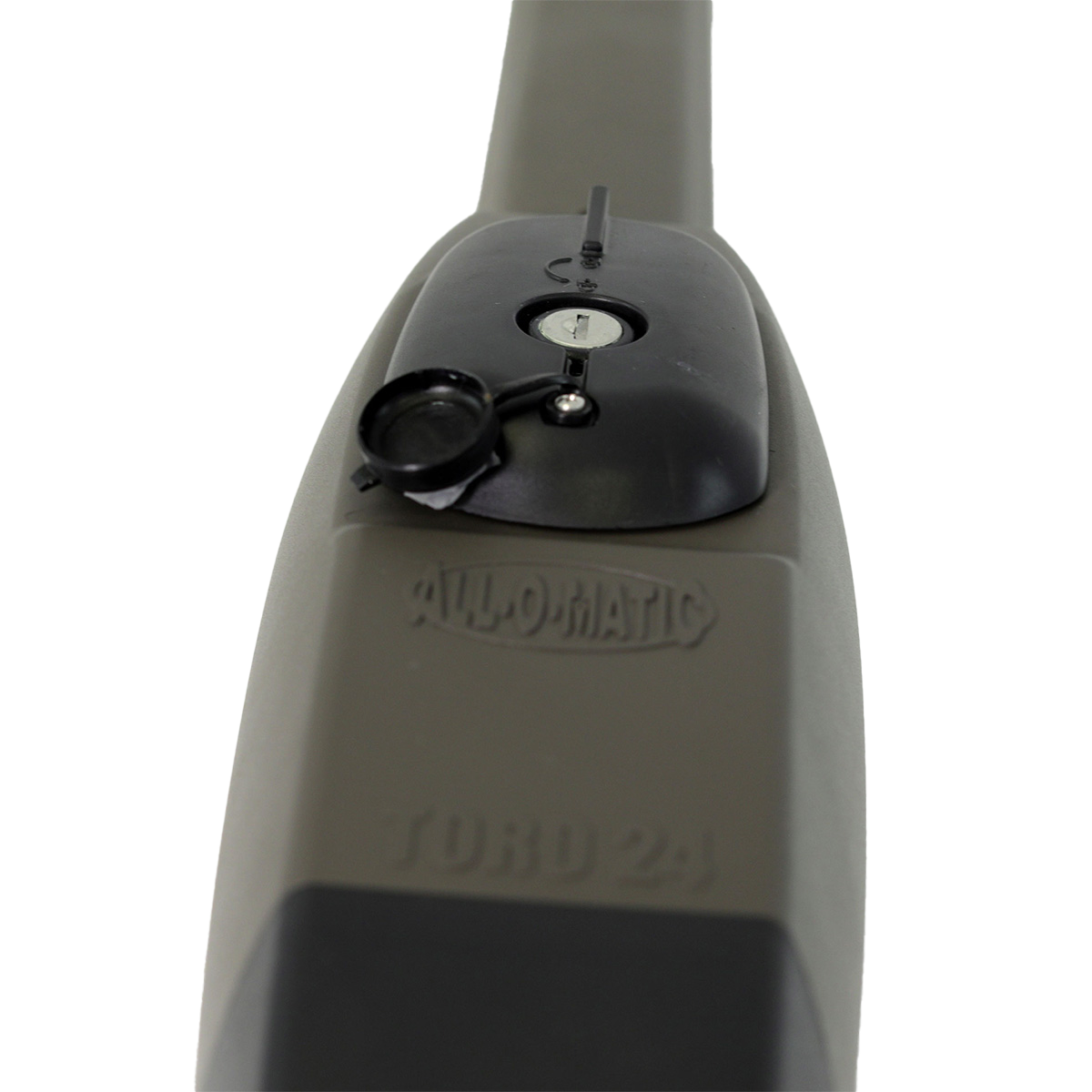

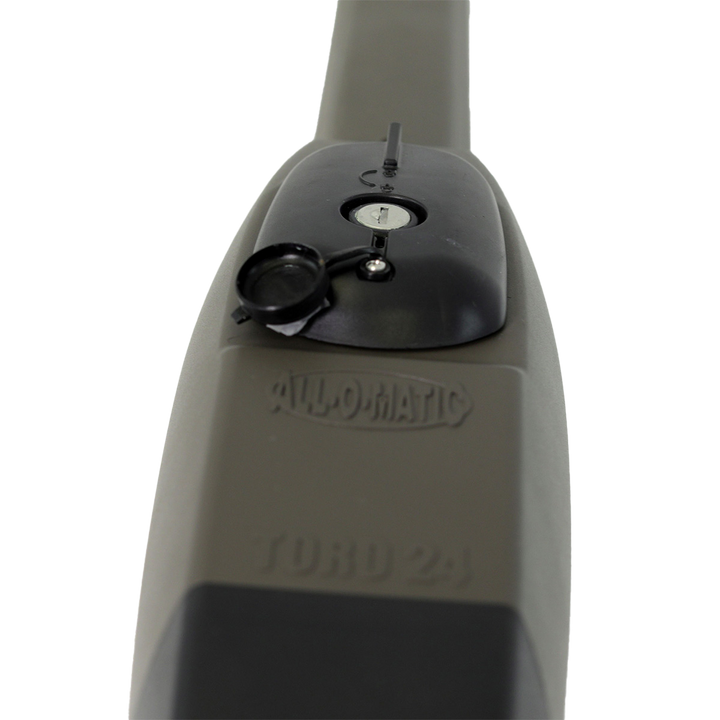

- Emergency Release: Keyed manual release
- Breaker Requirement: 20 amp dedicated
Safety & Compliance
- UL 325 2018 Compliant
- Built-in safety features and entrapment protection
Warranty: 4-year residential warranty and 3-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, 24V solar panels, magnetic locks, and gate hinges.
