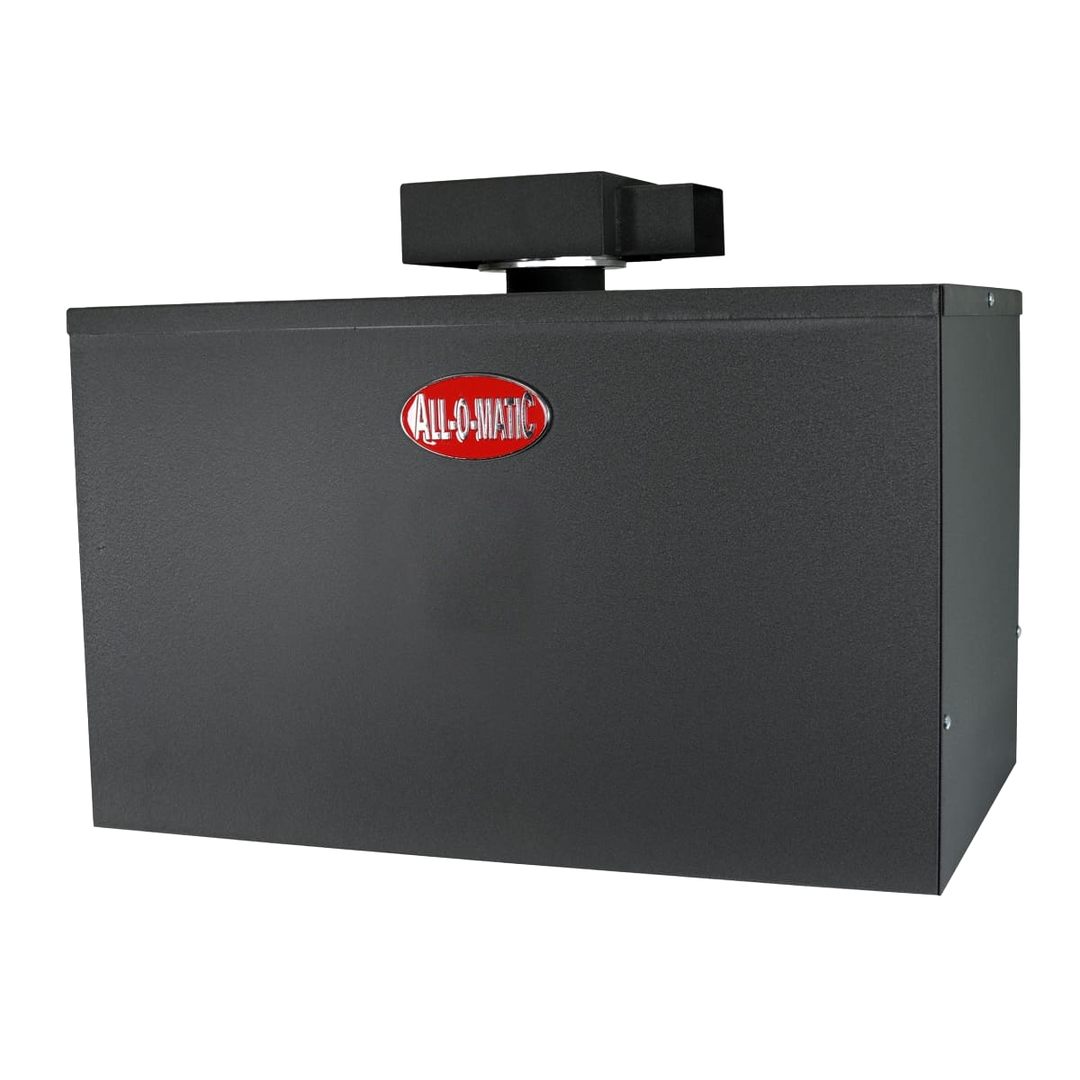

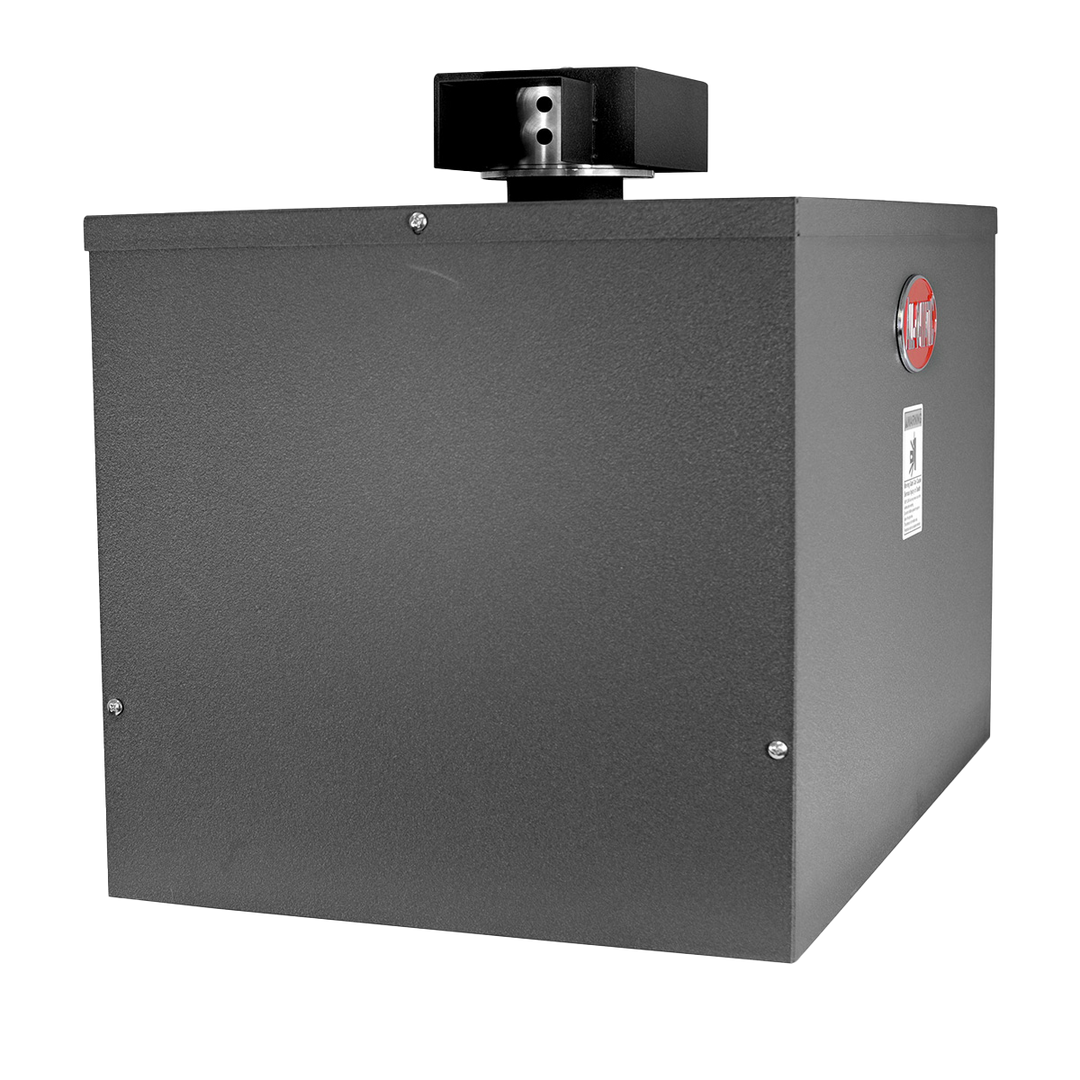

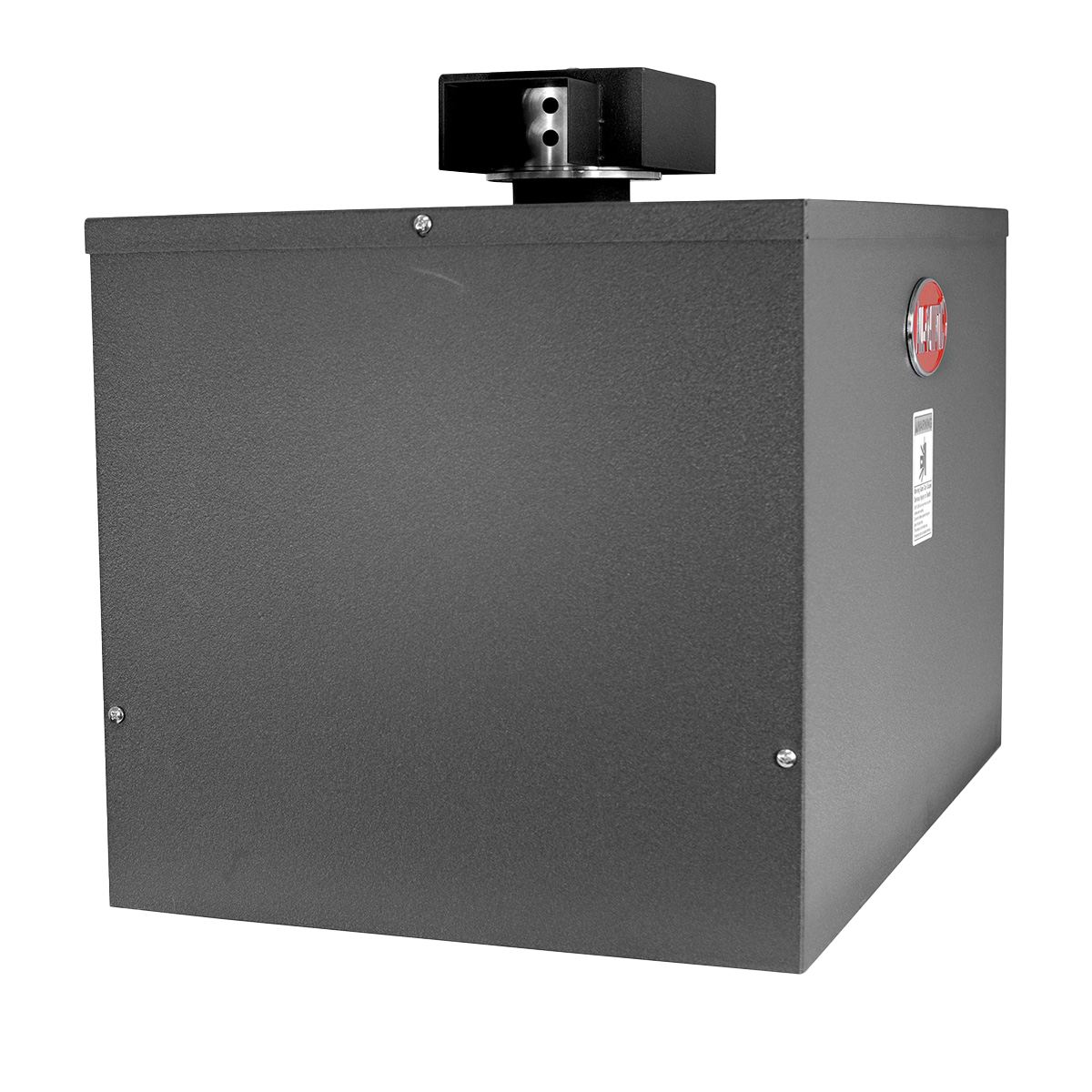

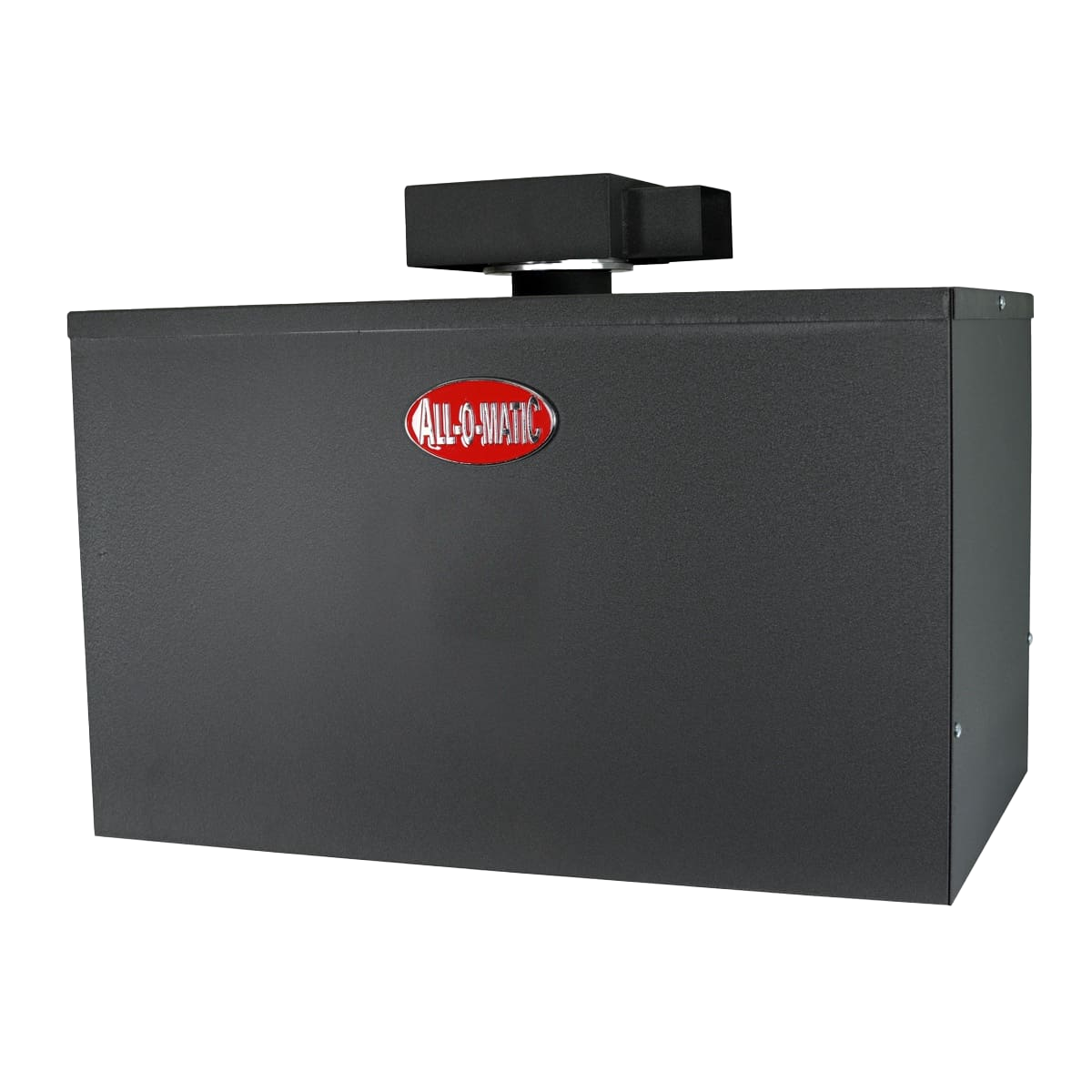

ALL-O-MATIC SW-375 DC Super-Heavy-Duty Industrial Swing Gate Operator
The ALL-O-MATIC SW-375 DC swing gate operator represents the pinnacle of swing gate automation technology for the most demanding industrial applications. Engineered with a super-duty high-strength frame, robust gearbox, and powerful 36VDC brushless DC motor, this exceptional operator easily handles massive gates weighing up to 5,000 lbs. and measuring up to 30 feet in length. Combining industry-leading brushless DC technology with unparalleled structural integrity, the SW-375 DC delivers reliable performance in the most extreme conditions.
Extreme-Duty Performance
- Powerful 36VDC brushless motor delivers exceptional torque and reliability
- Handles gates up to 5,000 lbs. and 30 feet in length
- Adjustable opening speed from 14-27 seconds per 90° operation
- Continuous duty cycle for high-traffic industrial applications
- Dual gearbox system with 30:1 and 10:1 ratios for superior power transfer
Industrial-Grade Construction
- Super-duty high-strength frame engineered for extreme applications
- Heavy-duty gearbox designed for maximum reliability under load
- Solid construction withstands harsh environmental conditions
- Purpose-built components resist wear in continuous operation
- Designed for high-cycle industrial installations
Advanced Control Technology
- Industry-leading brushless DC technology for smooth, reliable operation
- Built-in loop rack for simplified safety device integration
- Slow start/stop functionality for controlled gate movement
- Integrated battery backup ensures continuous operation
- Versatile input power options including 115/230/480 VAC and solar compatibility
Uninterrupted Operation
- Integrated battery backup with (3) 14Ah 12VDC batteries
- Up to 300 cycles of operation on a 2,000 lb. gate during power outages
- 36VDC solar panel compatibility for remote installations
- Multiple input voltage compatibility for installation flexibility
- Extreme temperature operation range (-40°F to 160°F)
Specifications
Gate Capacity
- Maximum Gate Weight: 5,000 lbs.
- Maximum Gate Length: 30 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 36 VDC brushless motor
- Gate Speed: Adjustable 14-27 seconds per 90° opening
- Power Options: 115/230/480 VAC single phase and 36VDC solar panel
- Battery Backup: Integrated, with (3) 14Ah 12VDC batteries
- Battery Backup Capacity: Up to 300 cycles on a 2,000 lb. gate
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: Large gearbox: 30:1, Small gearbox: 10:1
- Dimensions (W×L×H): 19" × 31" × 25"
- Shipping Weight: 435 lbs. + 110 lbs. arm and wrench

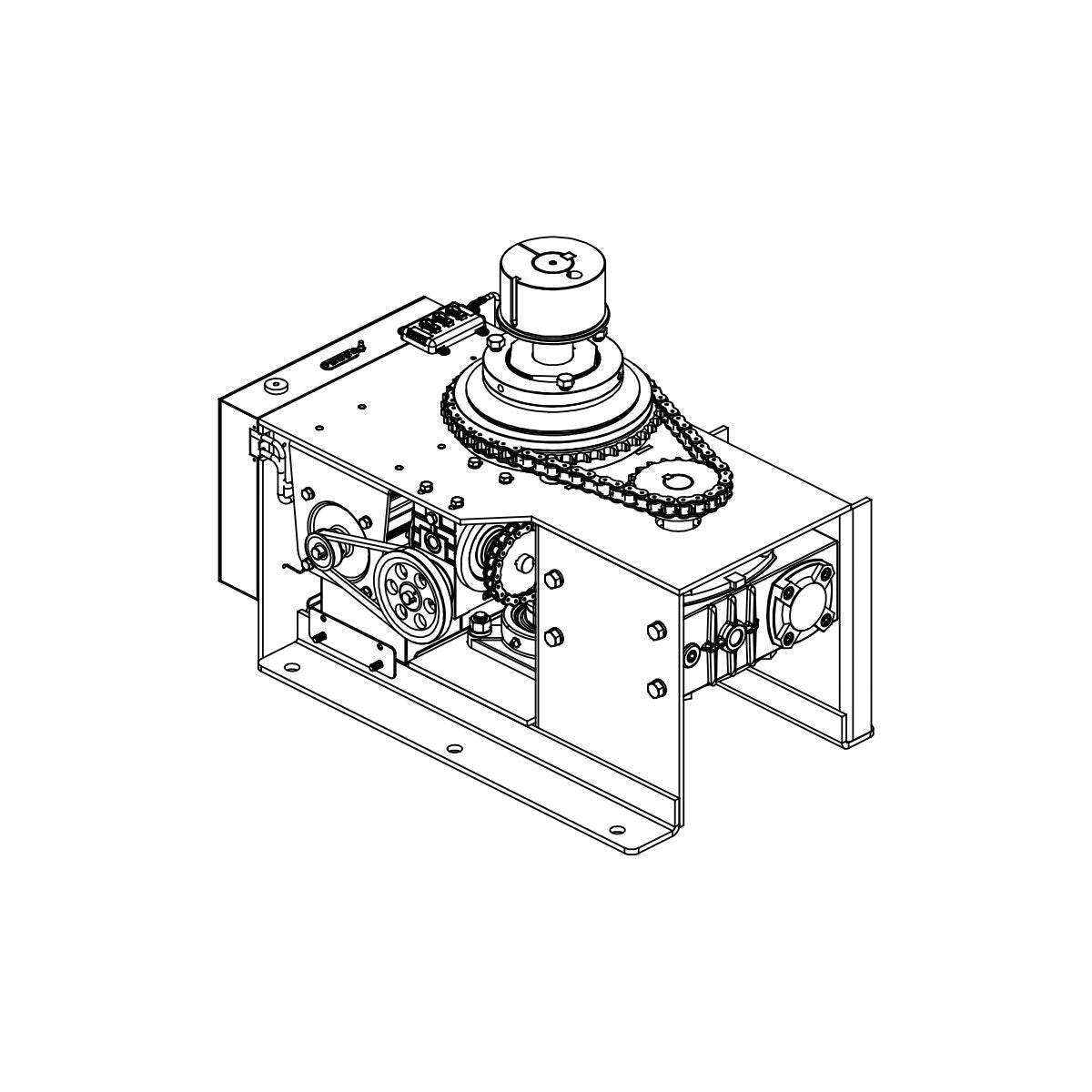

Drive Components
- Belt Size: 4L-230 (AX21)
- Main Sprocket Size: 60A45×5
- Chain Size: 60NP
- Gearbox Sprocket: Top: 60B23×1.5, Bottom: 50B18×1.125 and 50B20×7/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 5" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: 5/8" bolt to remove arm
- UL 325 2018 Compliant
Warranty: 3-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately. This operator is specifically designed for extreme-duty industrial applications where maximum power and reliability are essential.
