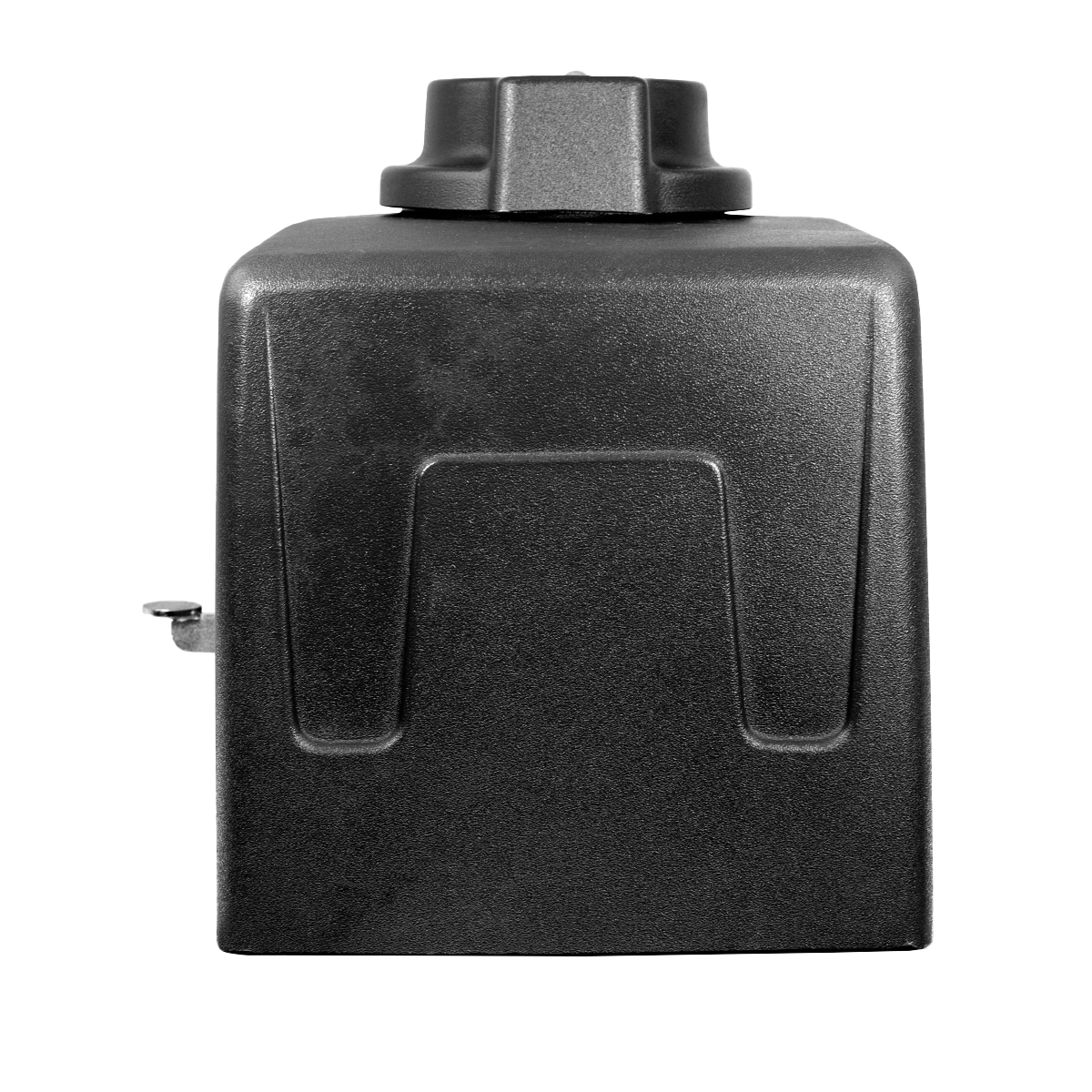

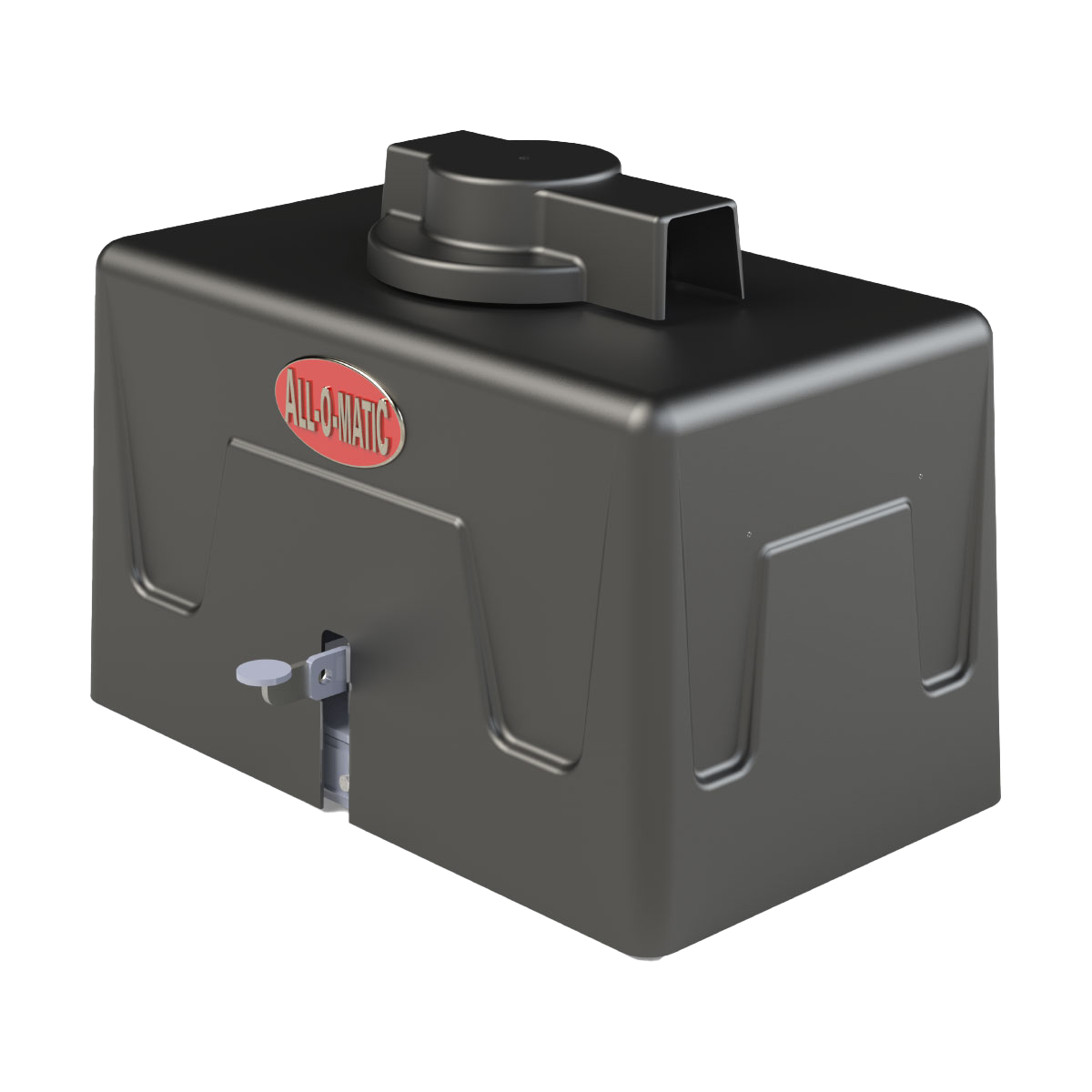

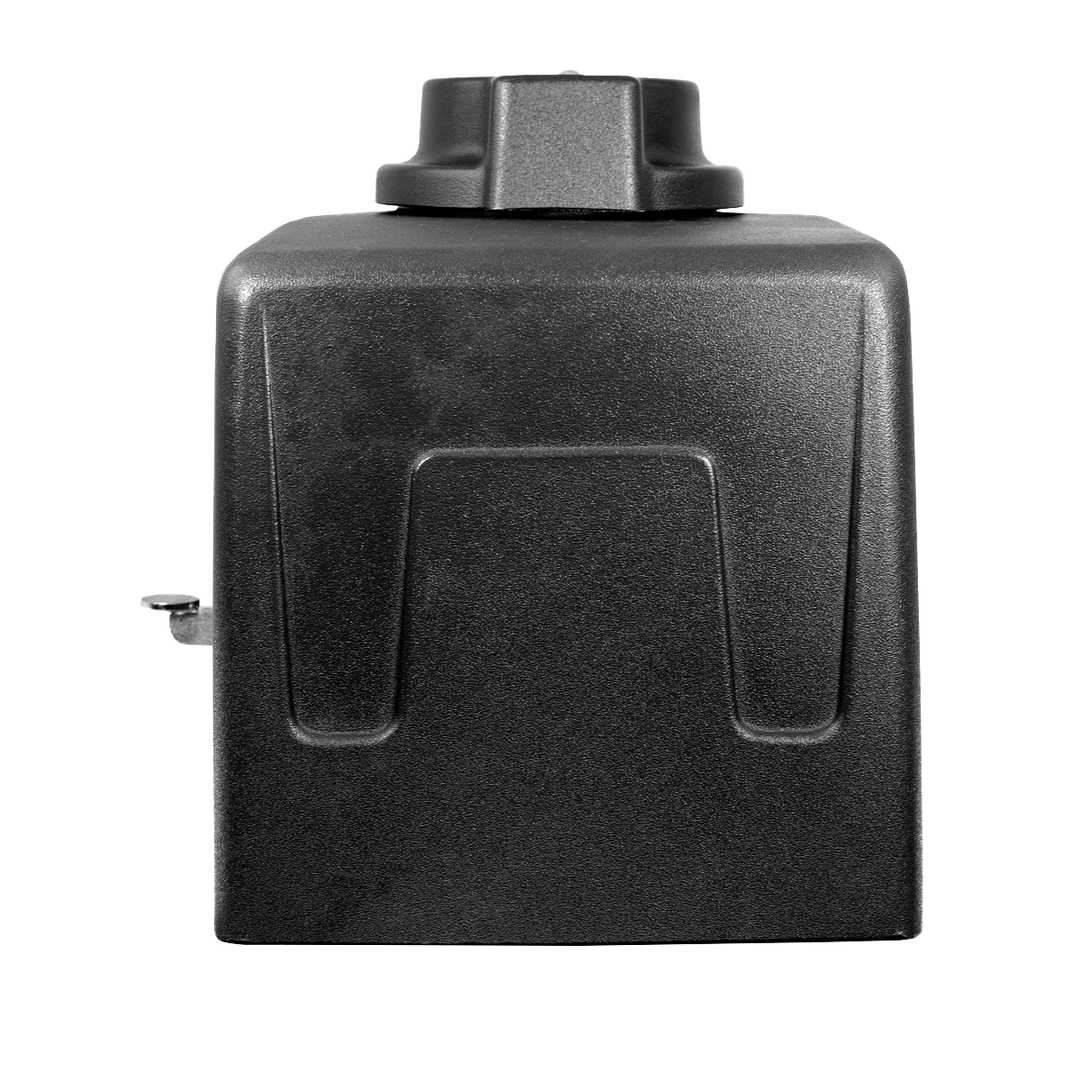

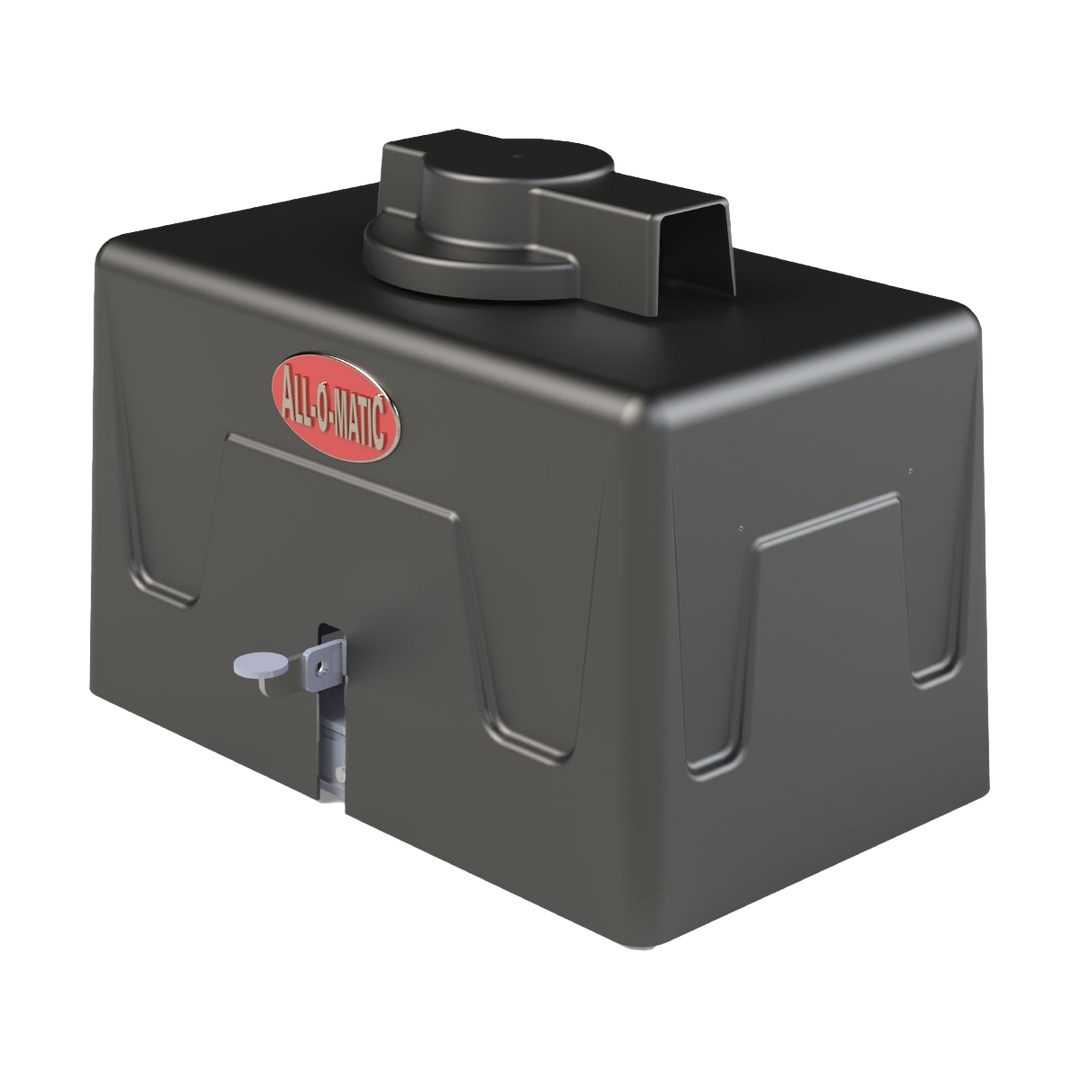

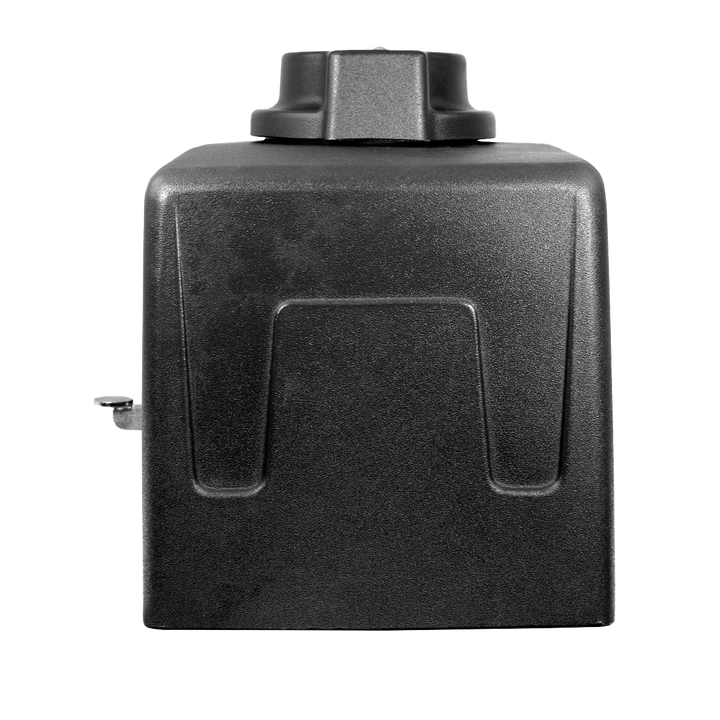

ALL-O-MATIC SW-350 DC PRO Industrial Swing Gate Operator with Foot Pedal Release
The ALL-O-MATIC SW-350 DC PRO was engineered to meet the demands of gate installers who require an operator capable of handling heavy traffic, commercial/industrial heavy gates, and extreme weather conditions. With its heavy-duty low-profile frame, reliable gearbox, and powerful brushless DC motor, this exceptional operator makes even the most challenging installations simple and effective. Available in both ½ HP and 1 HP configurations, the SW-350 DC PRO can move gates up to 2,500 lbs. and 22 feet in length.
Industrial-Grade Performance
- Available in two powerful brushless DC motor options:
- ½ HP model handles gates up to 2,000 lbs.
- 1 HP model handles gates up to 2,500 lbs.
- Maximum gate length of 22 feet for expansive entrances
- Adjustable opening speed from 16-29 seconds per 90° operation
- Continuous duty cycle for high-traffic applications
- 60:1 gearbox with internal clutch for maximum torque and safety
Professional Design Features

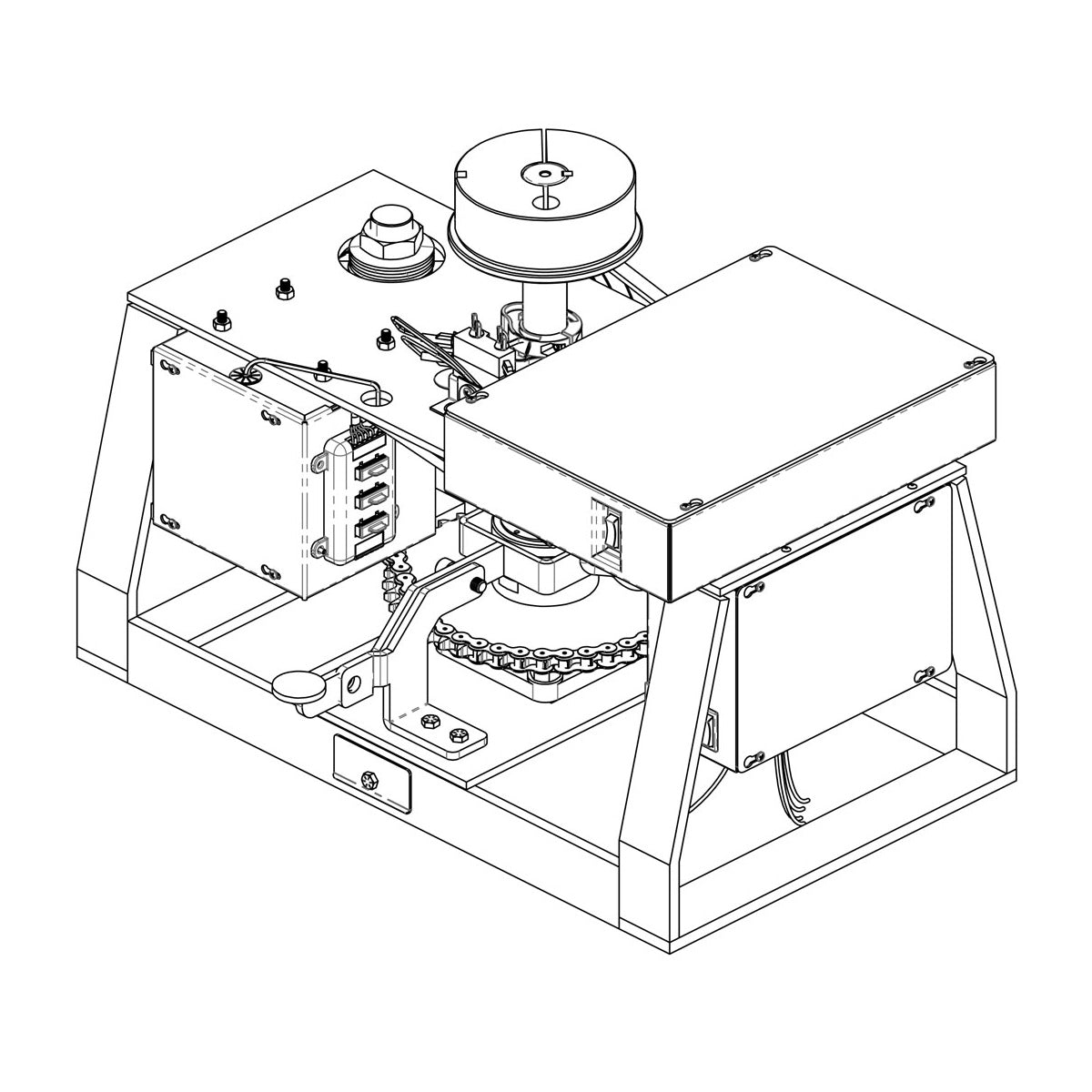

- Low-profile frame design for discreet installation
- Mechanical foot pedal release for effortless manual operation
- Built-in loop rack for simplified safety device integration
- Heavy-duty construction for extreme conditions
- Integrated mounting plate for secure installation
Intelligent Control System
- LCD display with on-board diagnostics for quick troubleshooting
- Digital adjustments for precision operation tuning
- Programmable auto-close timer and obstruction sensing
- Integrated wireless primary/secondary capability for dual gate setups
- USB port for diagnostic data extraction and firmware updates
Uninterrupted Operation
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 250 cycles of operation during power outages
- Solar power compatibility for remote installations
- Dual voltage input capability (115/230 VAC)
- Extreme temperature operation range (-40°F to 160°F)
Specifications
Gate Capacity
- Maximum Gate Weight:
- ½ HP: 2,000 lbs.
- 1 HP: 2,500 lbs.
- Maximum Gate Length: 22 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 24 VDC brushless – ½ HP and 1 HP options
- Gate Speed: Adjustable 16-29 seconds per 90° opening
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: Up to 250 cycles
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 60:1 with internal clutch
- Dimensions (W×L×H): 14" × 24" × 18"
- Shipping Weight:
- ½ HP: 190 lbs. + 35 lbs. arm
- 1 HP: 205 lbs. + 35 lbs. arm
Drive Components
- Belt Size: 4L-360 (AX34)
- Main Sprocket Size: 50B45×1.25
- Chain Size: 50NP
- Gearbox Sprocket: 50B11×1
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 7" with 3/4" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced entrapment protection
- 7-day timer functionality for scheduled operations
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, 24V solar panels, magnetic locks, and gate hinges.
